SPEEDAIRE C85E16-40 Round Body Cylinder, 16 mm Bore, 40 mm Stroke, Stainless Steel, Threaded Hole Mounting
Item: CU4AMZModel: C85E16-40Cross Ref: 5TKL2
7 In Stock
Ships within 2 days via
5.00% off
€56.91 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Air Cylinder |
| Action Type | Double Acting |
| Air Inlet | M5 X 0.8 |
| Air Inlet Size | M5 x 0.8 |
| Air Inlet Type | Metric Standard |
| Body Dia. | 16 mm |
| Body Material | Stainless Steel |
| Body Material Finish | Anodized |
| Body Material Grade | Grade 316 |
| Bore Dia. | 16 mm |
| Cushion Type | Rubber Cushion |
| Cylinder Action | Double Acting |
| Cylinder Type | Round Body |
| End Cap Length | 10.5 mm |
| End Cap Material | Aluminum |
| End Cap Material Finish | Anodized |
| Features | Rubber Bumpers |
| Finish | Hard Coat Anodized |
| For Fluid Type | Air |
| Magnetic Piston | Non-Magnetic Piston |
| Max. Operating Pressure | 145 MPa |
| Max. Operating Temp. | 176°F |
| Max. Pressure | 145 psi |
| Min. Operating Pressure | 7.25 MPa |
| Min. Operating Temp. | -4°F |
| Mounting | Double End |
| Mounting Style | Threaded Hole |
| Mounting Type | Threaded Hole |
| No. Of Rods | 1 |
| Nose Mount Thread Size | M16 x 1.5 |
| Overall Length | 151 mm |
| Piston Material | Brass |
| Piston Rod Material | Stainless Steel |
| Piston Rod Material Grade | 304 |
| Repairable Cylinder | Non Repairable |
| Rod Dia. | 6 mm |
| Rod Rotation | Rotating Rod |
| Rod Thread Length | 16 mm |
| Rod Thread Size | M6 x 1 |
| Series | C85 Series |
| Single Acting/double Acting | Double Acting |
| Spring Retraction Force | Not Applicable |
| Stroke | 40 mm |
| Stroke Length | 40 mm |
| System Of Measurement | Metric |
| Temp. | +14°F to +140°F |
| Tie Rod Material | Not Applicable |
| Tube Material | Stainless Steel |
| Type | ISO |
Shipping Info:
| Ship weight (kg) | 0.14 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
Product Variants
| Product | Model | Overall Height | Color | Body Material | Bore Dia. | Rod Dia. | Piston Material | Piston Rod Material | Cylinder Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
3ATF9 | 2 9/16" | Silver | Stainless Steel | 3/4" | 0.31" | Aluminum | Stainless Steel | Compact | - | RFQ
|
 |
NCDMB150-0200 | - | - | Stainless Steel | 1 1/2" | 7/16" | Aluminum | Carbon Steel | Round Body | €117.57 | |
|
NCDMB200-0300 | - | - | Stainless Steel | 2" | 5/8" | Aluminum | Carbon Steel | Round Body | €170.39 | |
|
NCDMB200-0500 | - | - | Stainless Steel | 2" | 5/8" | Aluminum | Carbon Steel | Round Body | €189.42 | |
|
NCDME150-0300 | - | - | Stainless Steel | 1 1/2" | 7/16" | Aluminum | Carbon Steel | Round Body | - | RFQ
|
 |
5VKY5 | 13 7/8" | - | Aluminum | 1 1/2" | 5/8" | Composite | Steel | Extruded | - | RFQ
|
|

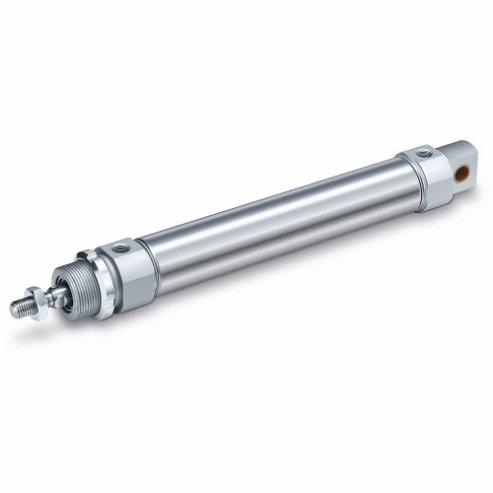

CD85F16-125-B | - | - | Stainless Steel | 16 mm | 6 mm | Brass | Stainless Steel | Round Body | €75.30 |
