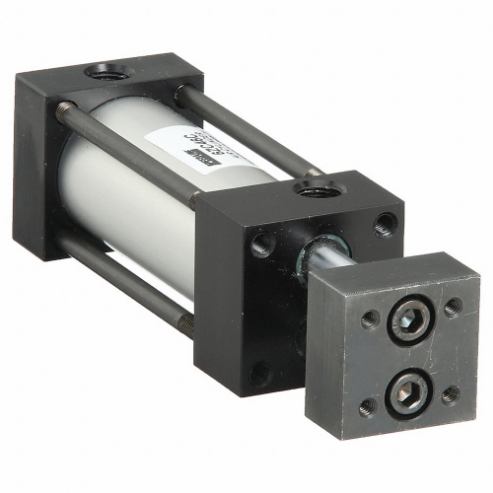

SPEEDAIRE 6ZC46 Air Cylinder, 1 1/8 Inch Bore Dia, 2 Inch Stroke, 1/8 Inch Npt Port Size
Item: CU4AMRModel: 6ZC46
7 In Stock
1 1/8"
2"
Ships within 2 days via
10.00% off
€278.57 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Air Cylinder |
| Action Type | Double Acting |
| Body Material | Aluminum |
| Body Material Finish | Black Oxide, Silver Plated |
| Bore Dia. | 1 1/8" |
| Color | Black, Silver |
| Cushion Type | None |
| Cylinder Action | Double Acting |
| Cylinder Type | Tie Rod |
| End Cap Material | Aluminum |
| Features | No Cushions, Non-Rotating |
| For Fluid Type | Air |
| Magnetic Piston | Non-Magnetic Piston |
| Max. Load | 100 lbs. |
| Max. Pressure | 150 psi |
| Maximum Operating Pressure | 150 psi |
| Maximum Operating Temperature | 200°F |
| Minimum Operating Temperature | -20°F |
| Mounting | Tapped Hole |
| Overall Height | 5 3/4" |
| Overall Length | 5 3/4" |
| Piston Material | Aluminum |
| Piston Rod Material | Steel |
| Port Size | 1/8" |
| Port Type | NPT |
| Rod Dia. | 0.312" |
| Rod Diameter | 5/16" |
| Single Acting/double Acting | Double Acting |
| Stroke | 2" |
| Stroke Length | 2" |
| System Of Measurement | Inch |
| Temp. Range | -20°F to +200°F |
| Tie Rod Material | Steel |
| Tube Material | Aluminum |
| Type | ISO |
Shipping Info:
| Ship weight (kg) | 0.56 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
Product Variants
| Product | Model | Color | Overall Height | Magnetic Piston | Single Acting/double Acting | Piston Rod Material | Temp. Range | Tube Material | Stroke | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
3ATF9 | Silver | 2 9/16" | Non-Magnetic Piston | Single Acting | Stainless Steel | -40°F to +200°F | - | 2" | €113.30 | |
 |
5TEK3 | Silver | - | No | Double Acting | Stainless Steel | -20°F to +200°F | Stainless Steel | 7 1/2" | €1,518.45 | |
 |
5VAU6 | Black | - | No | Double Acting | Steel | -20°F to +200°F | Steel | 7" | €741.07 | |
|
5VAU7 | Black | - | No | Double Acting | Steel | -20°F to +200°F | Steel | 7 1/2" | €741.07 | |
|
5VAU8 | Black | - | No | Double Acting | Steel | -20°F to +200°F | Steel | 8 1/2" | €741.07 | |
|
5VAU9 | Black | - | No | Double Acting | Steel | -20°F to +200°F | Steel | 9" | €741.07 | |
|
5VAV0 | Black | - | No | Double Acting | Steel | -20°F to +200°F | Steel | 9 1/2" | €741.07 |
