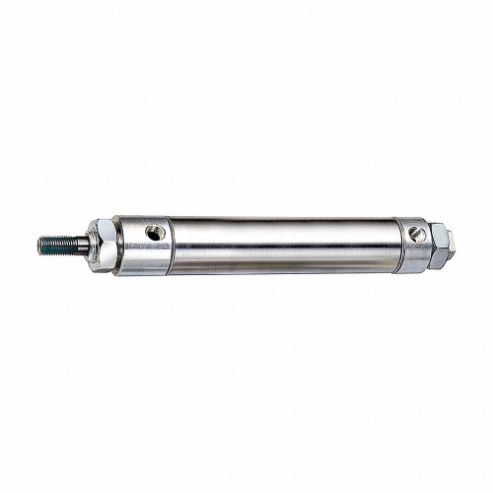

SPEEDAIRE 6CRA9 Air Cylinder 3 Inch Stroke 8.41 Inch Length
Item: AE8EKAModel: 6CRA9
7 In Stock
Ships within 2 days via
10.00% off
€140.21 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Air Cylinder |
| Actuation Type | Spring Extend, Spring Retract |
| Air Cylinder Type | Round Body |
| Body Material | Stainless Steel |
| Body Material Finish | Silver Plated |
| Bore Dia. | 1 3/4" |
| Cushion Type | None |
| Cylinder Action | Single Acting |
| Cylinder Type | Round Body |
| End Cap Material | Aluminum |
| Features | Non-Switch Ready |
| Finish | Silver |
| For Fluid Type | Air |
| Inlet Gender | Female |
| Magnetic Piston | Non-Magnetic Piston |
| Max. Pressure | 250 psi |
| Maximum Operating Pressure | 250 psi |
| Maximum Operating Temperature | 165°F |
| Minimum Operating Temperature | -10°F |
| Mounting Style | Pivot |
| Mounting Type | Pivot |
| Nose Mount Thread | 1"-14 |
| Nose Mount Thread Size | 1"-14 |
| Overall Height | 11 7/16" |
| Overall Length | 8.41" |
| Piston Material | Aluminum |
| Piston Rod Material | Steel |
| Piston Rod Material Finish | Chrome Plated |
| Pivot Hole Dia. | 0.376" |
| Port Size | 0.25" |
| Repairable Cylinder | Non Repairable |
| Rod Dia. | 7/16" |
| Rod Diameter | 1/2" |
| Rod Thread Length | 7/8" |
| Rod Thread Size | 1/2"-20 |
| Rod Thread Type | Fine |
| Single Acting/double Acting | Single Acting |
| Spring Extension Force | 11 lb. |
| Spring Extension Force | 11 lbs. |
| Spring Retraction Force | 11 lb. |
| Spring Retraction Force | 11 lbs. |
| Stroke | 3" |
| Stroke Length | 3" |
| System Of Measurement | Inch |
| Tube Material | Stainless Steel |
| Type | Round Body |
Shipping Info:
| Ship weight (kg) | 1.01 |
| Ship height (cm) | 5.08 |
| Ship length (cm) | 29.21 |
| Ship width (cm) | 5.08 |
| HS code | 8412310080 |
| Country of Origin | US |
