SPEEDAIRE 5ZDZ8 Air Cylinder 1-1/4 Inch Bore 3 Inch Stroke
Item: AE7LVWModel: 5ZDZ8
7 In Stock
Ships within 2 days via
10.00% off
€84.65 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Air Cylinder |
| Air Cylinder Type | Round Body |
| Air Inlet Size | 1/8" |
| Air Inlet Type | NPT |
| Body Material | Stainless Steel |
| Body Material Finish | Silver Plated |
| Bore Dia. | 1 1/4" |
| Cushion Type | None |
| Cylinder Action | Double Acting |
| Cylinder Type | Round Body |
| End Cap Material | Aluminum |
| Features | Non-Switch Ready |
| Finish | Silver |
| For Fluid Type | Air |
| Inlet Gender | Female |
| Magnetic Piston | Non-Magnetic Piston |
| Max. Pressure | 250 psi |
| Maximum Operating Pressure | 250 psi |
| Maximum Operating Temperature | 165°F |
| Minimum Operating Temperature | -10°F |
| Mounting Style | Nose |
| Mounting Type | Nose |
| Nose Mount Thread | 3/4"-16 |
| Nose Mount Thread Size | 3/4"-16 |
| Overall Height | 7 3/4" |
| Overall Length | 7 3/4" |
| Piston Material | Aluminum |
| Piston Rod Material | Stainless Steel |
| Port Size | 0.125" |
| Repairable Cylinder | Non Repairable |
| Rod Dia. | 7/16" |
| Rod Thread Length | 3/4" |
| Rod Thread Size | 7/16"-20 |
| Single Acting/double Acting | Double Acting |
| Stroke | 3" |
| Stroke Length | 3" |
| System Of Measurement | Inch |
| Tube Material | Stainless Steel |
| Type | Round Body |
Shipping Info:
| Ship weight (kg) | 0.37 |
| Ship height (cm) | 3.3 |
| Ship length (cm) | 20.32 |
| Ship width (cm) | 3.3 |
| HS code | 8412310080 |
| Country of Origin | US |
Product Variants
| Product | Model | Stroke | Overall Length | Cylinder Type | Bore Dia. | Body Material | Magnetic Piston | Mounting Type | Max. Pressure | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

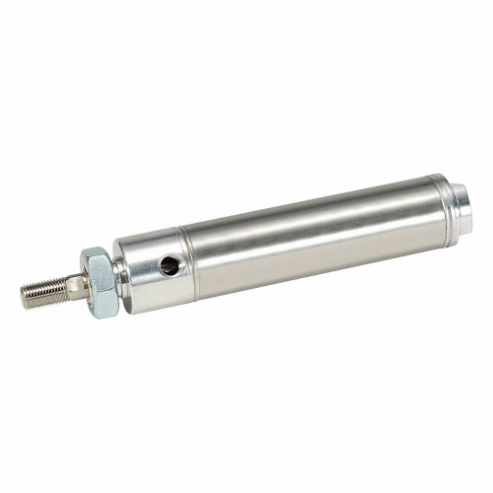

5ZDZ9 | 4" | 8 3/4" | Round Body | 1 1/4" | Stainless Steel | Non-Magnetic Piston | Nose | 250 psi | €99.58 |
