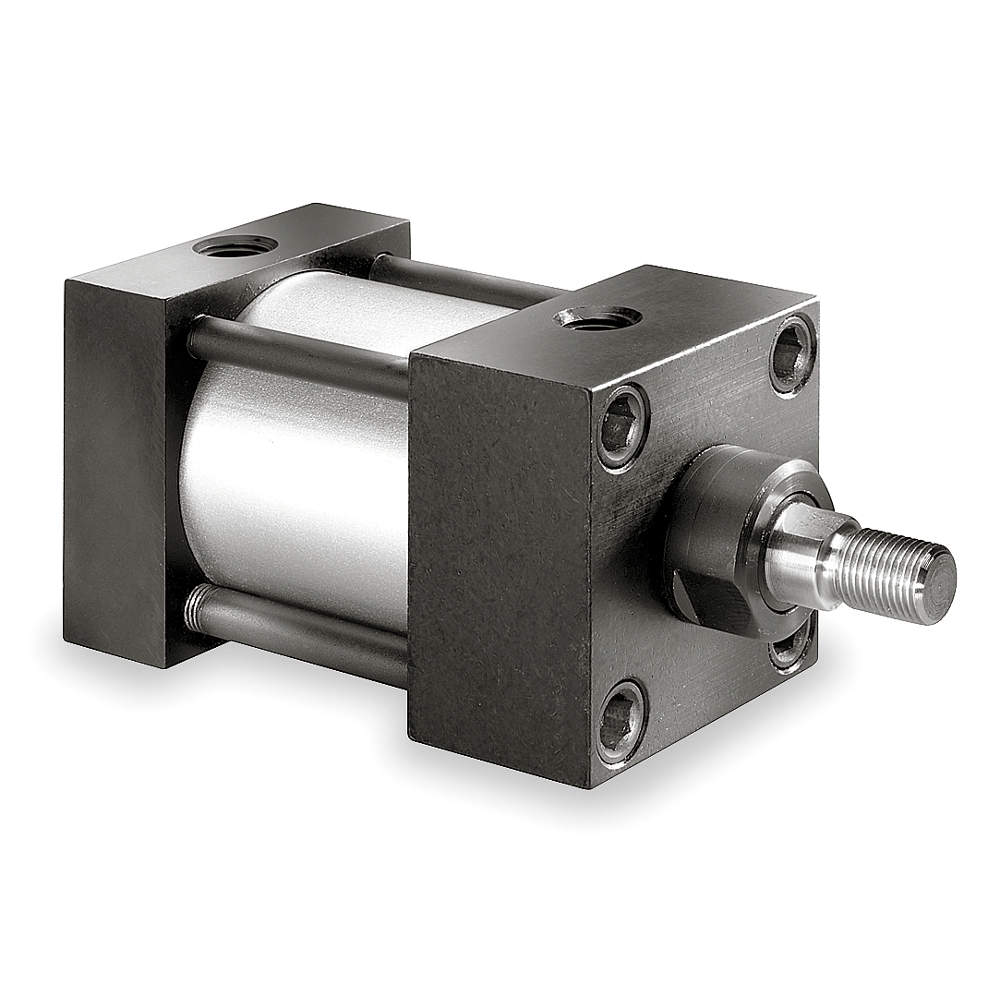

SPEEDAIRE 5UZF5 Air Cylinder 25-1/2 Inch Stroke 31 Inch Length
Item: AE6TZUModel: 5UZF5
7 In Stock
25 1/2"
Ships within 2 days via
10.00% off
€699.99 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Air Cylinder |
| Body Material | Aluminum |
| Bore Dia. | 2 1/2" |
| Color | Black, Silver |
| Cushion Type | Adjustable |
| End Cap Material | Aluminum |
| Finish | Silver And Black |
| Magnetic Piston | No |
| Max. Load | 1227 lbs. |
| Max. Pressure | 250 psi |
| Mounting Type | Side Tapped, Sleeve Nut |
| Overall Length | 31" |
| Piston Material | Aluminum |
| Piston Rod Finish | Chrome Plated |
| Piston Rod Material | Steel |
| Rod Dia. | 5/8" |
| Rod Thread Length | 3/4" |
| Rod Thread Size | 1/2"-20 |
| Single Acting/double Acting | Double Acting |
| Stroke | 25 1/2" |
| Temp. Range | -20°F to +200°F |
| Tie Rod Material | Steel |
| Tube Material | Aluminum |
| Type | NFPA |
Shipping Info:
| Ship weight (kg) | 4.57 |
| Ship height (cm) | 15.24 |
| Ship length (cm) | 91.44 |
| Ship width (cm) | 15.24 |
| HS code | 8412310040 |
| Country of Origin | US |
Product Variants
| Model | Magnetic Piston | Stroke | Type | Overall Length | Mounting Type | Max. Pressure | Bore Dia. | Body Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 5TDZ1 | No | 1/2" | NFPA | 6" | Side Tapped, Sleeve Nut | 250 psi | 2 1/2" | Aluminum | €405.58 | |
| 5UZC9 | No | 12 1/2" | NFPA | 18" | Side Tapped, Sleeve Nut | 250 psi | 2 1/2" | Aluminum | €599.64 | |
| 5UZD1 | No | 13 1/2" | NFPA | 19" | Side Tapped, Sleeve Nut | 250 psi | 2 1/2" | Aluminum | €630.92 | |
| 5UZD3 | No | - | NFPA | 20" | Side Tapped, Sleeve Nut | 250 psi | 2 1/2" | Aluminum | €630.92 | |
| 5UZD4 | Non-Magnetic Piston | 15" | Tie Rod | 20 1/2" | Side Tapped, Sleeve Nut | 250 psi | 2 1/2" | Aluminum | €526.65 | |
| 5UZD5 | No | 15 1/2" | NFPA | 21" | Side Tapped, Sleeve Nut | 250 psi | 2 1/2" | Aluminum | €717.27 | |
| 5UZD7 | No | 16 1/2" | NFPA | 22" | Side Tapped, Sleeve Nut | 250 psi | 2 1/2" | Aluminum | €717.27 |
