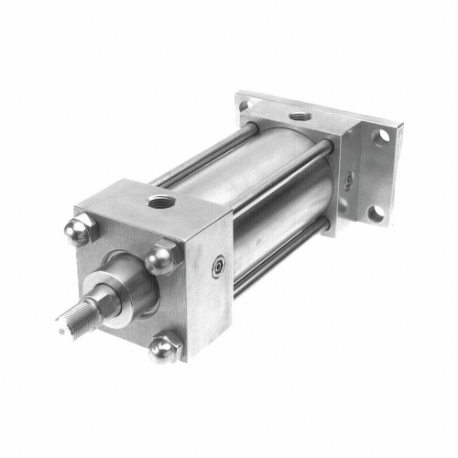

SPEEDAIRE 5PEU2 Air Cylinder, 2 1/2 Inch Bore Dia, 6 1/2 Inch Stroke, 3/8 Inch Npt Port Size
2 1/2"
6 1/2"
Get it by Monday, Dec 22
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
10.00% off
€1,247.45 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Air Cylinder |
| Action Type | Double Acting |
| Body Material | Stainless Steel |
| Bore Dia. | 2 1/2" |
| Color | Silver |
| Cushion Type | Adjustable |
| Cylinder Type | NFPA |
| End Cap Material | Stainless Steel |
| Features | Adjustable Air Cushion, Switch Ready |
| Magnetic Piston | No |
| Max. Load | 1227 lbs. |
| Max. Pressure | 250 psi |
| Mounting | Rear Flange |
| Overall Length | 12 3/8" |
| Piston Material | Aluminum Alloy |
| Piston Rod Material | Stainless Steel |
| Port Size | 3/8" |
| Port Type | NPT |
| Rod Dia. | 5/8" |
| Rod Thread Length | 3/4" |
| Rod Thread Size | 1/2"-20 |
| Single Acting/double Acting | Double Acting |
| Stroke | 6 1/2" |
| Temp. Range | -20°F to +200°F |
| Tie Rod Material | Stainless Steel |
| Tube Material | Stainless Steel |
| Type | NFPA |
Shipping Info:
| Ship weight (kg) | 5.4 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Color | Overall Height | Magnetic Piston | Single Acting/double Acting | Piston Rod Material | Temp. Range | Tube Material | Stroke | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
3ATF9 | Silver | 2 9/16" | Non-Magnetic Piston | Single Acting | Stainless Steel | -40°F to +200°F | - | 2" | €113.30 | |
 |
5TEK3 | Silver | - | No | Double Acting | Stainless Steel | -20°F to +200°F | Stainless Steel | 7 1/2" | €1,518.45 | |
 |
5VAU6 | Black | - | No | Double Acting | Steel | -20°F to +200°F | Steel | 7" | €741.07 | |
|
5VAU7 | Black | - | No | Double Acting | Steel | -20°F to +200°F | Steel | 7 1/2" | €741.07 | |
|
5VAU8 | Black | - | No | Double Acting | Steel | -20°F to +200°F | Steel | 8 1/2" | €741.07 | |
|
5VAU9 | Black | - | No | Double Acting | Steel | -20°F to +200°F | Steel | 9" | €741.07 | |
|
5VAV0 | Black | - | No | Double Acting | Steel | -20°F to +200°F | Steel | 9 1/2" | €741.07 |
