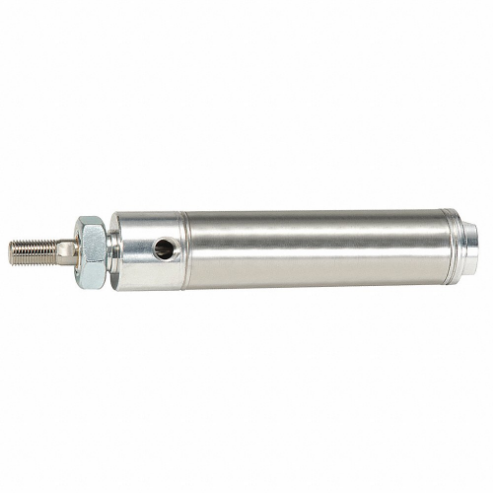

SPEEDAIRE 5MMG7 Air Cylinder 5 Inch Stroke 8.47 Inch Length
Get it by Friday, Feb 20
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
5.00% off
€61.41 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Air Cylinder |
| Air Cylinder Type | Round Body |
| Air Inlet Size | 1/8" |
| Air Inlet Type | NPT |
| Body Material | Stainless Steel |
| Body Material Finish | Silver Plated |
| Bore Dia. | 3/4" |
| Cushion Type | None |
| Cylinder Action | Double Acting |
| Cylinder Type | Round Body |
| End Cap Material | Aluminum |
| Features | Non-Switch Ready |
| Finish | Silver |
| For Fluid Type | Air |
| Inlet Gender | Female |
| Magnetic Piston | Non-Magnetic Piston |
| Max. Pressure | 250 psi |
| Maximum Operating Pressure | 250 psi |
| Maximum Operating Temperature | 165°F |
| Minimum Operating Temperature | -10°F |
| Mounting Style | Nose |
| Mounting Type | Nose |
| Nose Mount Thread | 5/8"-18 |
| Nose Mount Thread Size | 5/8"-18 |
| Overall Height | 8 1/2" |
| Overall Length | 8.47" |
| Piston Material | Aluminum |
| Piston Rod Material | Stainless Steel |
| Port Size | 0.125" |
| Repairable Cylinder | Non Repairable |
| Rod Dia. | 1/4" |
| Rod Thread Length | 1/2" |
| Rod Thread Size | 1/4"-28 |
| Rod Thread Type | Fine |
| Single Acting/double Acting | Double Acting |
| Stroke | 5" |
| Stroke Length | 5" |
| System Of Measurement | Inch |
| Tube Material | Stainless Steel |
| Type | Round Body |
Shipping Info:
| Ship weight (kg) | 0.17 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 21.51 |
| Ship width (cm) | 2.54 |
| HS code | 8412310080 |
| Country of Origin | US |
