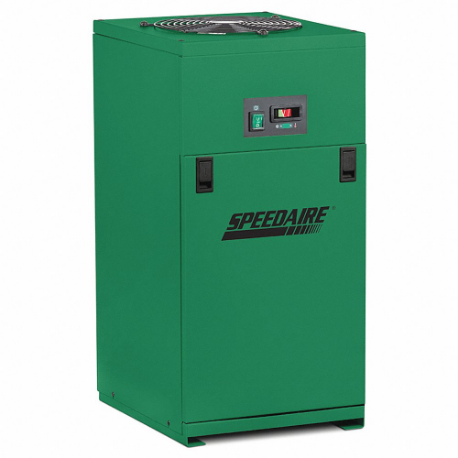

SPEEDAIRE 55EY09 Refrigerated Air Dryer, Iso Class 6, 25 Cfm, 115V AC, 3/4 Inch Npt, 50 Deg F Dew Point
Get it by Thursday, Dec 25
10.00% off
€3,488.94 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Air Dryer |
| Air Inlet Gender | Female |
| Air Inlet Size | 3/4" |
| Air Inlet Type | NPT |
| Air Outlet Size | 3/4" |
| Air Outlet Type | NPT |
| Bracket Kit | No |
| Bracket Kit Included | No |
| Color | Green |
| Dew Point | 50°F |
| Drain Included | No |
| Drain Type | Timed Electric Drain |
| Features | Dew Point Indicator, Front Panel Removal, Integrated Separator, On/Off Switch, Stainless Steel Heat Exchanger, Timed Electric Drain |
| Filter | Separator |
| Filter Included | Yes |
| Finish | Powder Coated |
| Full Load Amps | 6.91A |
| Heat Exchanger Material | Stainless Steel |
| Housing Color | Green |
| Includes | Inlet Y Strainer |
| Iso Class | Class 6 |
| Max. Air Compressor Hp | 7 1/2 hp |
| Max. Ambient Temp. | 113°F |
| Max. Flow | 25 CFM |
| Max. Inlet Pressure | 230 psi |
| Maximum Incoming Pressure | 230 psi |
| Maximum Inlet Temperature | 180°F |
| Mfr. Series | HITN |
| Overall Depth | 17" |
| Overall Height | 29" |
| Overall Width | 14" |
| Phase | Single |
| Power | 0.69 kW |
| Refrigerant | R-134A |
| Refrigeration Compressor (hp) | 211/500 hp |
| Refrigeration Compressor Horsepower | 0.421875 hp |
| Series | HITN Series |
Shipping Info:
| Ship weight (kg) | 50.85 |
| Ship height (cm) | 73.66 |
| Ship length (cm) | 43.18 |
| Ship width (cm) | 35.56 |
| Country of Origin | KR |
Product Variants
| Model | Max. Flow | Air Inlet Size | Dew Point | Power | Input Voltage | Iso Class | Max. Inlet Temp. | Overall Depth | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| RNC-0010 | 10 CFM | 1/2" | 40°F | 0.35 kW | 115V AC | 4 | 122°F | 18" | €3,845.03 | |
| RNC-0100 | 100 CFM | 1 1/2" | 38°F | 1.035 kW | 115V AC | 4 | 140°F | 22" | €8,696.71 | |
| RNC-0125 | 125 CFM | 1 1/2" | 38°F | 1.293 kW | 115V AC | 4 | 140°F | 22" | €10,650.17 | |
| RNC-0015 | 15 CFM | 1/2" | 40°F | 0.35 kW | 115V AC | 4 | 122°F | 18" | €3,920.72 | |
| RNC-0025 | 25 CFM | 1/2" | 40°F | 0.42 kW | 115V AC | 4 | 122°F | 18" | €4,011.53 | |
| RNC-0035 | 35 CFM | 3/4" | 40°F | 0.42 kW | 115V AC | 4 | 122°F | 18" | €5,470.24 | |
| RNC-0050 | 50 CFM | 3/4" | 40°F | 0.67 kW | 115V AC | 4 | 122°F | 21" | €6,089.99 |
