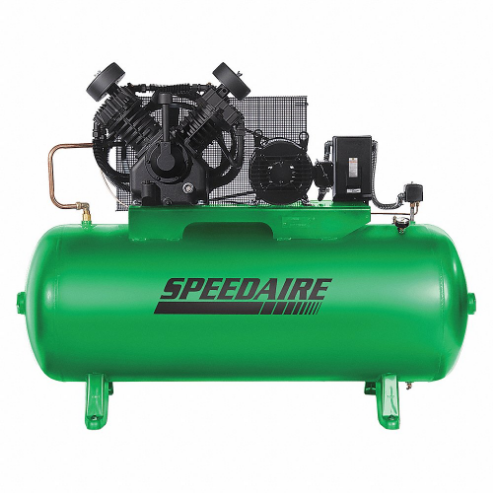

SPEEDAIRE 35WC57 Electric Air Compressor 2 Stage 10hp 34cfm
Get it by Tuesday, Dec 23
10.00% off
€6,305.27 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Electric Air Compressor |
| (f)npt Outlet | 3/4" |
| Amps | 28.1A |
| Asme Tank | Yes |
| Compressor Type | Simplex , Tank Mounted |
| Compressor Type | Tank Mounted |
| Control Type | Pressure Switch |
| Current Rating | 28.1A |
| Cylinder Material | Cast Iron |
| Dba @ 3 Feet | 89 |
| Dba @ 3 Feet | 89 dBA |
| Duty Cycle | Continuous |
| Enclosure Rating | Open Dripproof |
| Enclosure Type | Open Dripproof |
| Finish | Powder Coated |
| Fnpt Outlet Size | 3/4" |
| Free Air Cfm @ Max. Pressure | 34.1 CFM |
| Free Air Cfm @ Max. Pressure | 34.1 |
| Free Air Flow Rate @ Maximum Pressure | 36 CFM |
| Frequency | 60 Hz |
| Includes | Manual Drain Valve, Motor Starter, Oil Sight Glass, Pressure Gauge, Pressure Safety Valve, Tri-Voltage Motor |
| Inlet Size | 3/4" |
| Input Voltage | 200V AC |
| Life Expectancy | 15000 hrs. |
| Lubrication Type | Splash Lubricated |
| Max. Pressure | 175 psi |
| Maximum Operating Pressure | 175 psi |
| Maximum Speed | 700 RPM |
| Motor Type | Open Dripproof |
| Number Of Stages | 2 |
| Off Pressure Switch Setting | 175 psi |
| Off Pressure Switch Setting | 175 |
| On Pressure Switch Setting | 145 |
| On Pressure Switch Setting | 135 psi |
| Outlet Gender | Female |
| Outlet Size | 3/4" |
| Outlet Type | NPT |
| Output Power | 10 hp |
| Overall Height | 54" |
| Overall Length | 69" |
| Overall Width | 25" |
| Package Type | Base Model |
| Phase | 3 |
| Phase - Electrical | 3 |
| Pump Location | Top Mount |
| Pump Location - Air Compressor | Tank Mounted |
| Pump Oil Capacity | 4 qt. |
| Pump Oil Capacity | 4 qt |
| Pump Rpm | 700 |
| Pump Rpm | 700 RPM |
| Pump Style | Simplex |
| Pump Type | Reciprocating |
| Sound Level | 89 dBA |
| Tank Size | 120 gal. |
| Tank Style | Horizontal |
| Tank Style - Air Compressor | Horizontal |
| Tank Type | Horizontal |
Shipping Info:
| Ship weight (kg) | 375.75 |
| Ship height (cm) | 137.16 |
| Ship length (cm) | 175.26 |
| Ship width (cm) | 63.5 |
| HS code | 8414801635 |
| Country of Origin | US |
Product Details:
- ASME Tank (Yes)
- Compressor Package Type (Base Model)
Product Variants
| Product | Model | Free Air Cfm @ Max. Pressure | Phase | Package Type | Tank Size | Sound Level | Overall Height | Overall Length | Pump Oil Capacity | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
35WC41 | 16.6 CFM | 3 | Base Model | 80 gal. | 83 dBA | 46" | 63" | 2 qt | €4,508.54 | |
 |
35WC44 | 16.6 CFM | 1 | Fully Packaged | 80 gal. | 83 dBA | 46" | 63" | 2 qt | €5,905.96 | |
 |
35WC46 | 16.6 CFM | 3 | Fully Packaged | 80 gal. | 83 dBA | 46" | 63" | 2 qt | €5,705.32 | |
 |
35WC49 | 24.3 CFM | 3 | Base Model | 80 gal. | 87 dBA | 46" | 63" | 2 qt | €4,919.82 | |
 |
35WC52 | 24.3 CFM | 3 | Fully Packaged | 80 gal. | 87 dBA | 46" | 63" | 2 qt | €6,110.22 | |
 |
35WC53 | 34.1 CFM | 3 | Base Model | 120 gal. | 86 dBA | 54" | 69" | 4 qt | €7,065.19 | |
 |
35WC54 | 50 CFM | 3 | Base Model | 120 gal. | - | 54" | 69" | 4 qt | €8,149.62 |
