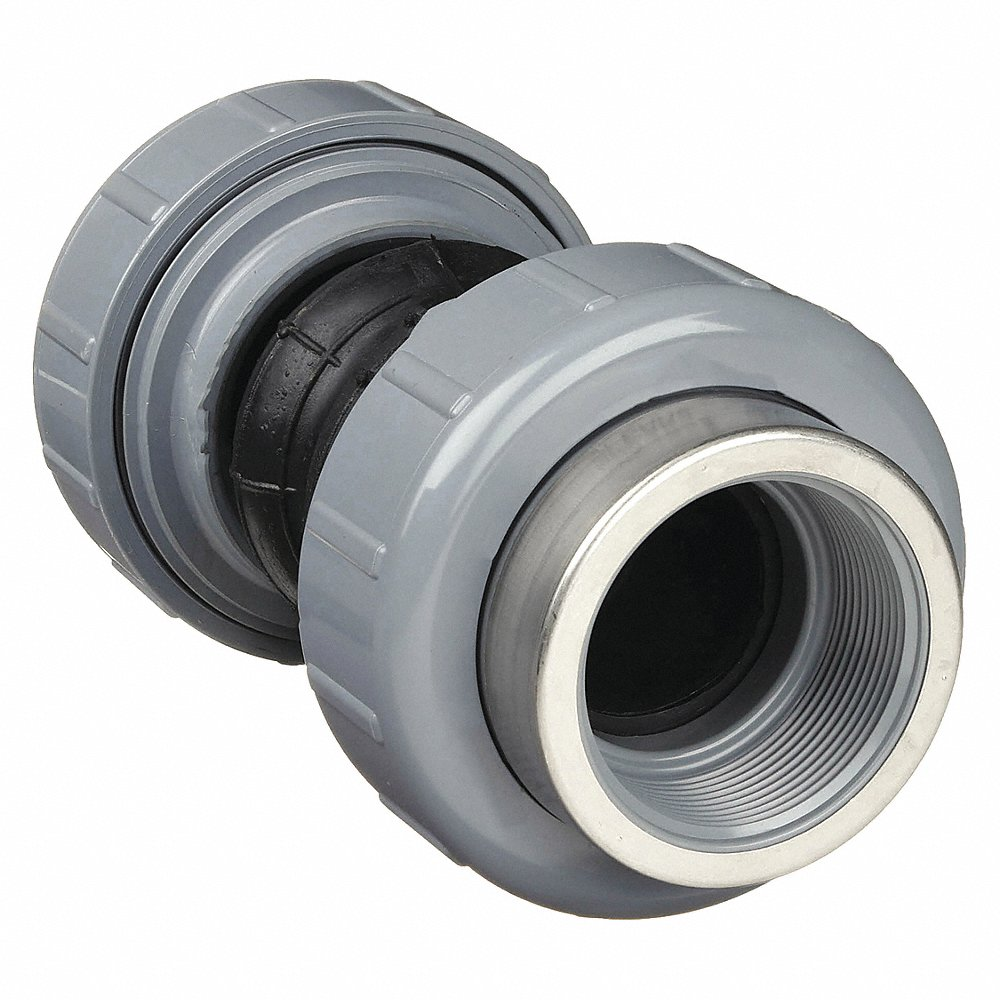

SPEARS VALVES EJ21-010CSR Special Reinforced Elastomer Expansion Joint, FPT, 1 Size, CPVC, Neoprene
Item: AD7DEZModel: EJ21-010CSRCross Ref: 4DMZ7
7 In Stock
Ships within 2 days via
10.00% off
€665.75 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Expansion Joint |
| Closed Overall Length | 8 5/8" |
| Compression Distance | 7/8" |
| Connection | FNPT |
| Connection Type | Threaded Socket Union |
| Elastomer Material | EPDM |
| Expansion Distance | 1/4" |
| Expansion Joint Type | Double Bulb |
| Flange Material | CPVC |
| For Use On | Pipe |
| Joint Material | EPDM |
| Material | Cpvc Elastomer |
| Max. Pressure Rating | 235 |
| Max. Temp. | 200°F |
| Maximum Off-center Angle | 25° |
| Maximum Operating Pressure | 150 psi |
| Maximum Vacuum Pressure | 24 in. hg |
| Minimum Operating Temperature | 40°F |
| Offset Distance | 7/8" |
| Outside Diameter | 2 9/16" |
| Overall Length | 7 3/4" |
| Pipe Size | 1" |
| Product Datasheet | spears-valves-ej21-010csr.pdf |
| Seal Material | EPDM |
| Socket Material | PVC With Stainless Steel Collar |
| Travel Length | 6" |
| Travel Length | 6 In. |
| Type | CPVC Elastomer |
| Vacuum Rating | 26 in. hg |
Shipping Info:
| Ship weight (kg) | 0.39 |
| Ship height (cm) | 12.19 |
| Ship length (cm) | 21.08 |
| Ship width (cm) | 16.51 |
| HS code | 3917400090 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Type | Material | Pipe Size | Overall Length | Connection | Price | |
|---|---|---|---|---|---|---|---|---|
|
EJ21-020CSR | CPVC Elastomer | Cpvc Elastomer | 2" | 7.38" | FNPT | €1,338.53 | |
 |

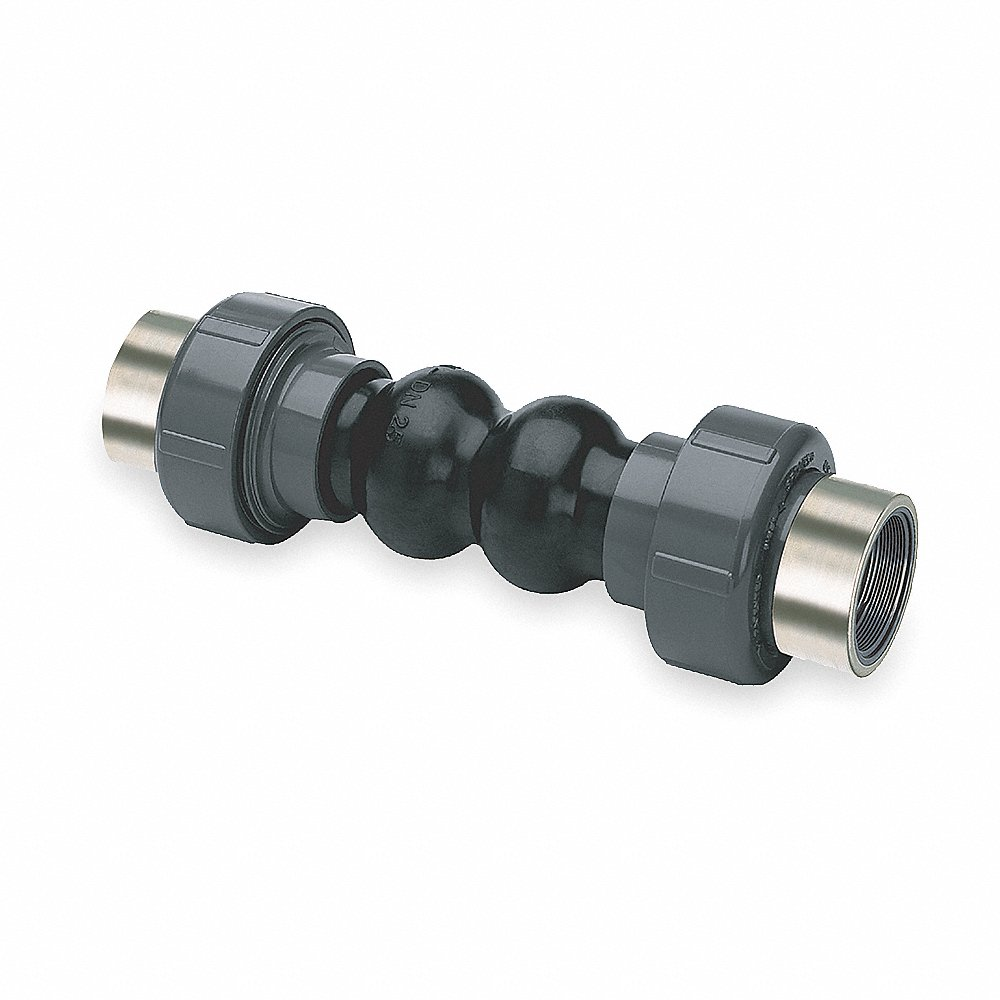

EJ21-030CSR | CPVC Elastomer | Cpvc Elastomer | 3" | 9" | FNPT | €2,499.17 | |
 |
EJ21-007CSR | Elastomer Expansion Joints | CPVC | - | - | - | €452.39 | |
|
EJ21-025CSR | - | - | - | - | - | €1,345.22 |
