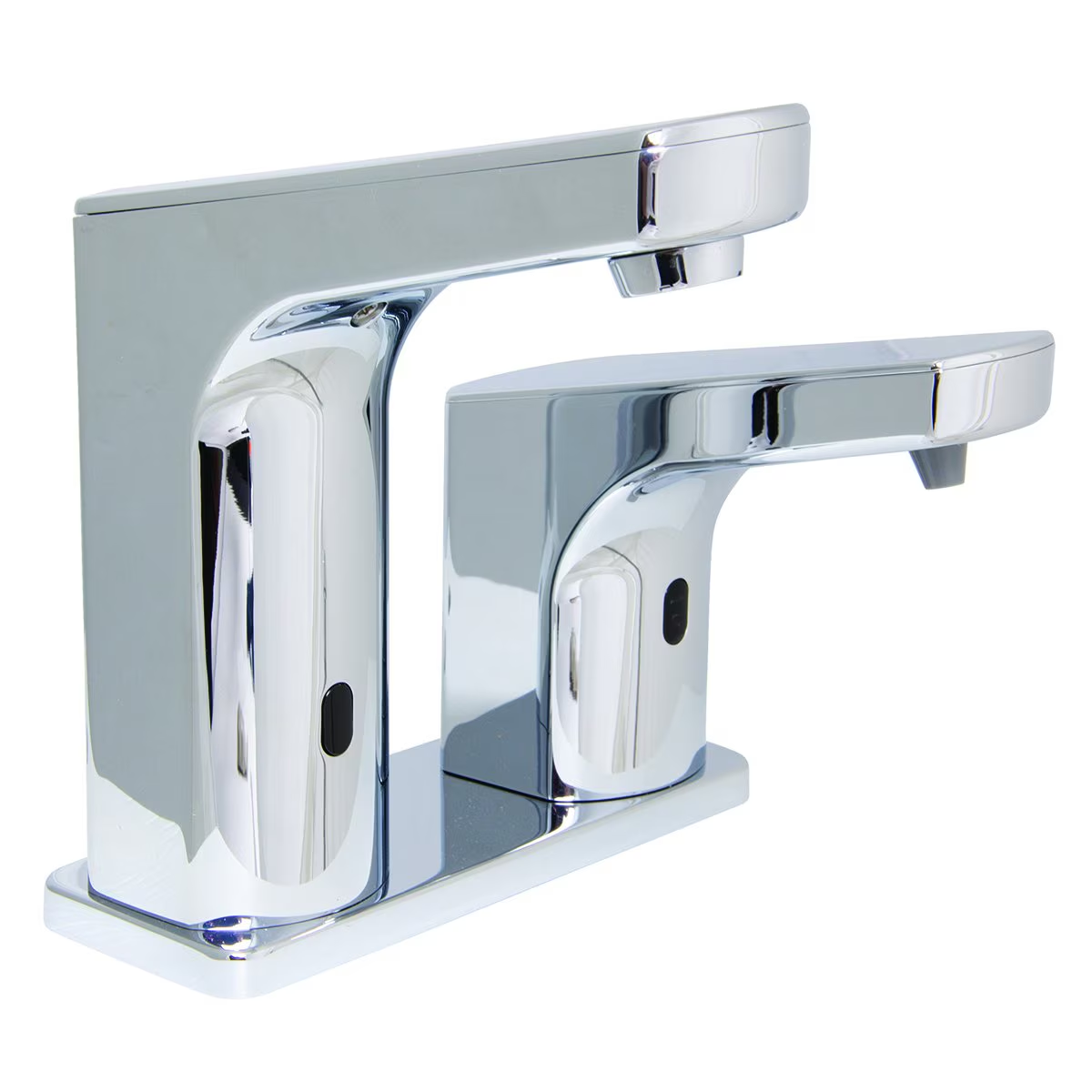

SPEAKMAN SFC-8790 Faucet and Soap Combination, Low Arc Sensor

Speakman SFC-8790 Sensorflo low arc sensor faucet & soap combination is ideal for dispensing water and liquid soaps. It is suitable for high-traffic restrooms in corporate offices and workshops.

Features:

• Speakman SFC-8790 Sensorflo low arc sensor faucet & soap combination features brass construction for durability and aesthetic appearance.
• It has a flow rate of 0.5 GPM.
• It provides both AC (AC adapter included) & battery (4-D batteries) operation for user convenience.

Standards and Approvals:

• ASME A112.18.1 / CSA B125.1
• NSF / ANSI 61
• NSF / ANSI 372
• ADA

Frequently Asked Questions:

Q. How to install this sensor faucet?

A.

• Put the deck plate over the preferred mounting surface. Verify the alignment of the two mounting holes.
• Place the deck plate over the preferred mounting surface.
• Carefully insert the hose and sensor wire, one at a time through the mounting hole.
• Install the metal washer, rubber washer, and mounting bolts from below. Position the faucet as desired, then tighten the mounting bolts using a wrench.
• Make sure the water supply is cut off. This faucet makes use of a single mixed-hose inlet. Connect the faucet's hose to a water source and tighten the wrench.

Q. What is the capacity of the soap bottle in this low arc sensor faucet & soap combination unit?

A. 2000 ml.

Q. How to install a soap dispenser?

A.

• The mounting stud metal washer, rubber washer and mounting nuts should all be removed.
• One at a time, insert each hose, sensor wire and mounting stud through the mounting hole. Take extreme care not to squeeze any hoses or wires. Position the sensor soap dispenser by lowering it.
• Replace the rubber washer, metal washer and mounting bolts from below to firmly fasten the sensor soap dispenser. Set the sensor soap dispenser in the preferred location, then tighten the mounting bolts with a wrench. Check to make sure the hoses and wires are not kinked.
• Esure there is enough space between the control box and the selected mounting surface so that all connections are serviced. Consider the distance to the closest electrical outlet if utilising the A/C Adapter. The ports for the soap and air outlets on the control box are positioned facing upward.
• Using a mounting screw and an extended screwdriver, mark the mounting locations for screw holes. Attach the control box to the spots that were marked previously. Apply the proper anchors and fasteners if mounting on drywall rather than a stud. For drywall, suggest screwing in EZ anchors or an equivalent.
• To the control box, align the soap and sir tubes. Cut the tubing to length and press it over the control box's barbs.
