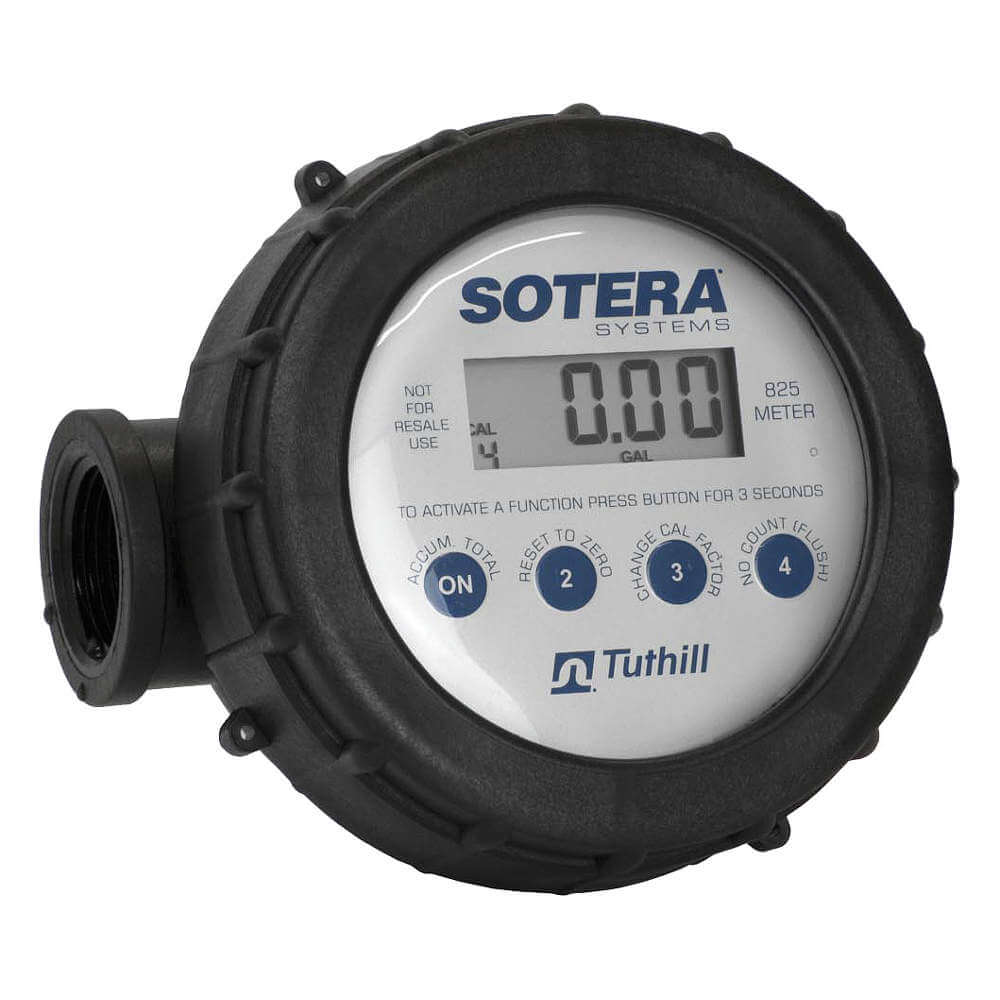

SOTERA 825D075BSPP Electronic Flowmeter, -10 to 130 Deg F Range, 2 to 20 Gpm Flow Rate, 3/4 Inch BSPP, EPDM, 125 psi
Item: AF2RKKModel: 825D075BSPPCross Ref: 6XGW8
7 In Stock
Ships within 2 days via
13.00% off
€462.80 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Flowmeter |
| Accuracy | +/-0.5% |
| Chamber Material | Ryton, Stainless Steel |
| Chamber Material | Ryton/SS |
| Compatible Flow Material | Antifreeze, Fertilizers, Oils, Pesticides, Petroleum Fluids |
| Connection Size | 3/4" |
| Connection Type | BSPP |
| Display Type | Digital |
| Fits Pipe Size | 1" |
| Fitting | BSPP |
| Fitting Size | 3/4" |
| Fitting Type | BSPP |
| Flow | 2-20 GPM |
| Flow Material | Water, Other Fluids |
| Flow Range @ Gpm Of Water | 2 to 20 |
| Flow Rate | 2-20 GPM |
| Flowmeter Type | Paddle Wheel |
| Fluid Connection | 3/4" BSPP |
| Fluid Temp. | -10°F to +130°F |
| For Pipe Size | 1" |
| Gpm Max. | 20 |
| Height | 5 5/8" |
| Housing Material | Polypropylene |
| Included Flow Rate Adjustment Knob | Yes |
| Included Pressure Gauge | No |
| Included Totalizer | Yes |
| Length | 5" |
| Master Totalizer | 9999 gal. |
| Max. Flow Rate | 20 GPM |
| Max. Gpm | 20 GPM |
| Max. Media Temp. | 130°F |
| Max. Operating Pressure | 125 psi |
| Max. Pressure | 100 psi |
| Max. Temp. | 130°F |
| Max. Viscosity | 100 SUS |
| Max. Voltage | Battery |
| Media Temp. | -10°F to +130°F |
| Min. Flow Rate | 2 GPM |
| Min. Media Temp. | -10°F |
| Mounting Location | Inline |
| Mounting Orientation | Universal |
| O-ring Material | Viton |
| Overall Height | 5 3/5" |
| Overall Length | 5" |
| Overall Width | 5" |
| Power Source | Battery |
| Pressure | 125 psi |
| Product Datasheet | sotera-825.pdf |
| Product Type | Digital Meter |
| Pulse Rate | 10 pulses/gal. |
| Rotor Material | Polyphenylene Sulfide |
| Seal Material | Viton |
| Series | 800 Series |
| Shaft Material | Stainless Steel |
| Thread | BSPP |
| Type | Digital |
| Unit Of Measure | Gal., L |
| Wetted Material | EPDM |
| Width | 5" |
Shipping Info:
| Ship weight (kg) | 0.68 |
| Ship height (cm) | 13.21 |
| Ship length (cm) | 14.73 |
| Ship width (cm) | 13.72 |
| HS code | 9026104000 |
| Country of Origin | US |
Product Details:
- Flow Range @ CCM of Water (7570 to 75700)
- Flow Range @ GPH of Water (120 to 1200)
- Resetable Cumulative Totalizer (10,000,000)
Documentation:
Product Variants
| Product | Model | Housing Material | Flow | Flow Rate | Flowmeter Type | Display Type | Max. Viscosity | Type | Max. Pressure | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
FM100KB | Glass Filled Polypropylene | - | - | - | - | - | - | - | - | RFQ
|
 |
MFM300 | Glass Filled Polypropylene | - | - | Flow Indicator | - | - | Flow Meters | 150 psi | €2,421.19 | |
 |
3-9900-1P | Polypropylene | 0-99999 GPM | 0.0-99999 GPM | - | LCD | 130 SUS | - | - | €1,766.48 | |
 |
3-9900-1 | - | 0-99999 GPM | 0.0-99999 GPM | - | LCD | 130 SUS | - | - | €1,707.82 |
