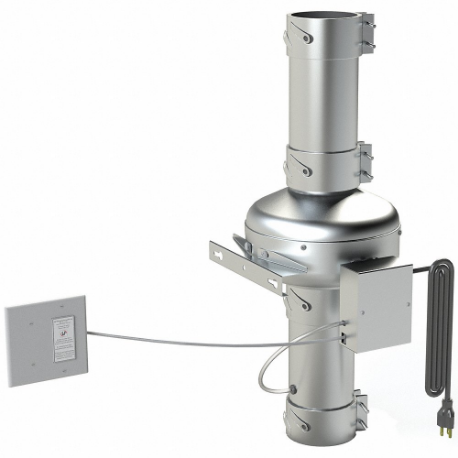

SOLER & PALAU PV_DEDPV In-Line Duct Fan, 153 cfm Max, 4 Inch Size Duct, 84 W, 120V AC, 1 Ph, IP44
Item: CU3CGMModel: PV_DEDPVCross Ref: 787PA0
7 In Stock
Ships within 2 days via
10.00% off
€664.90 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Duct Fan |
| Airflow @ 0.000 In Sp | 153 CFM |
| Application | Dryer |
| Cfm @ 0.000-in. Sp | 153 CFM |
| Cfm @ 0.200-in. Sp | 130 CFM |
| Cfm @ 0.400-in. Sp | 118 CFM |
| Cfm @ 0.600-in. Sp | 105 CFM |
| Cfm @ 0.800-in. Sp | 93 CFM |
| Cfm @ 1.000-in. Sp | 80 CFM |
| Cfm @ 1.500-in. Sp | 34 CFM |
| Duct Dia. | 4" |
| Frequency | 60 Hz |
| Height | 26 3/8" |
| High Efficiency Motor | No |
| High-efficiency Motor | No |
| Housing Dia. | 9 1/2" |
| Housing Height | 7 3/4" |
| Housing Material | Galvanized Steel |
| Includes | 6 Ft Power Cord, High Temperature Thermal Fuse, Led Indicator Light Panel, Quick Connect Duct Clamps And Duct Sections |
| Inlet Dia. | 3 7/8" |
| Max. Amps | 0.7A |
| Maximum Inlet Air Temperature | 140°F |
| Motor Ip Rating | IP44 |
| Motor Output Power | 84 W |
| Nameplate Voltage | 120V AC |
| Overall Dia. | 9 1/2" |
| Overall Height | 26 3/8" |
| Overall Width | 10 3/8" |
| Phase | 1 |
| Power Consumption | 84 W |
| Speed Control | Yes |
| Wattage | 84 W |
| Wheel Type | Backward Inclined |
| Width | 10 3/8" |
Shipping Info:
| Ship weight (kg) | 4.95 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
