SOLBERG HDL-PSG344/2-400 Oil Mist Filter 4 Inch Mnpt 500 Cfm
Get it by Thursday, Aug 27
5.00% off
€3,190.84 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Pneumatic Oil Filter |
| Air Inlet Gender | Male |
| Air Outlet Gender | Male |
| Application | Any Application Requiring Low Delta P Coalescing Of Large Air Volumes, Blower Exhaust Oil Mist, Captures Oil Fog, Mist, Or Smoke From Exhaust On Oil Flooded Vacuum Pumps, Cement, Food Processing-Pressure, Industrial Vacuum Processes, Nailers/Staplers, Oil Removal For Pressure Unloading Vents On Piston Compressors, Paper Processing, Vacuum Coating, Vacuum Freeze Dry, Vacuum Outgassing |
| Bowl Material | Carbon Steel , Steel |
| Differential Pressure Indicator Included | No |
| Drain Included | Yes |
| Drain Port Size | 4" |
| Drain Port Size | 4" MNPT |
| Drain Port Type | MNPT |
| Drain Type | Manual |
| Element Material | Polyester |
| Filter Bowl Material | Metal |
| Filter Element Material | Polyester |
| Filter Rating | 0.3 µm |
| Filter Type | Coalescing |
| Filtration Efficiency | 99.97% |
| For Fluid Type | Oil |
| For Removal Of | Oil Aerosols, Particles, Water |
| For Substance Type | Oil |
| Gauge Included | No |
| Housing Material | Carbon Steel |
| Inlet Connection Type | MPT |
| Inlet Gender | Male |
| Inlet Size | 4" |
| Max. Airflow | 500 SCFM |
| Max. Flow Rate | 500 CFM |
| Max. Operating Temp. | 180°F |
| Max. Pressure | 14.7 psi |
| Max. Temp. | +40°F to +220°F |
| Min. Operating Temp. | 68°F |
| No. Of Air Inlets | 1 |
| No. Of Air Outlets | 1 |
| Outlet Connection Type | MNPT |
| Outlet Gender | Male |
| Outlet Size | 4" |
| Outside Dia. | 14" |
| Overall Height | 31 1/8" |
| Overall Width | 14" |
| Series | HDL Series |
| Size-air Treatment | Subcompact |
| Type | Vacuum Pump |
Shipping Info:
| Ship weight (kg) | 33.12 |
| Ship height (cm) | 24.13 |
| Ship length (cm) | 14.61 |
| Ship width (cm) | 14.61 |
| HS code | 8421290015 |
| Country of Origin | US |
Product Variants
| Model | Max. Flow Rate | Bowl Material | Overall Height | Overall Width | Filter Bowl Material | Air Outlet Gender | Air Inlet Gender | Outlet Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|

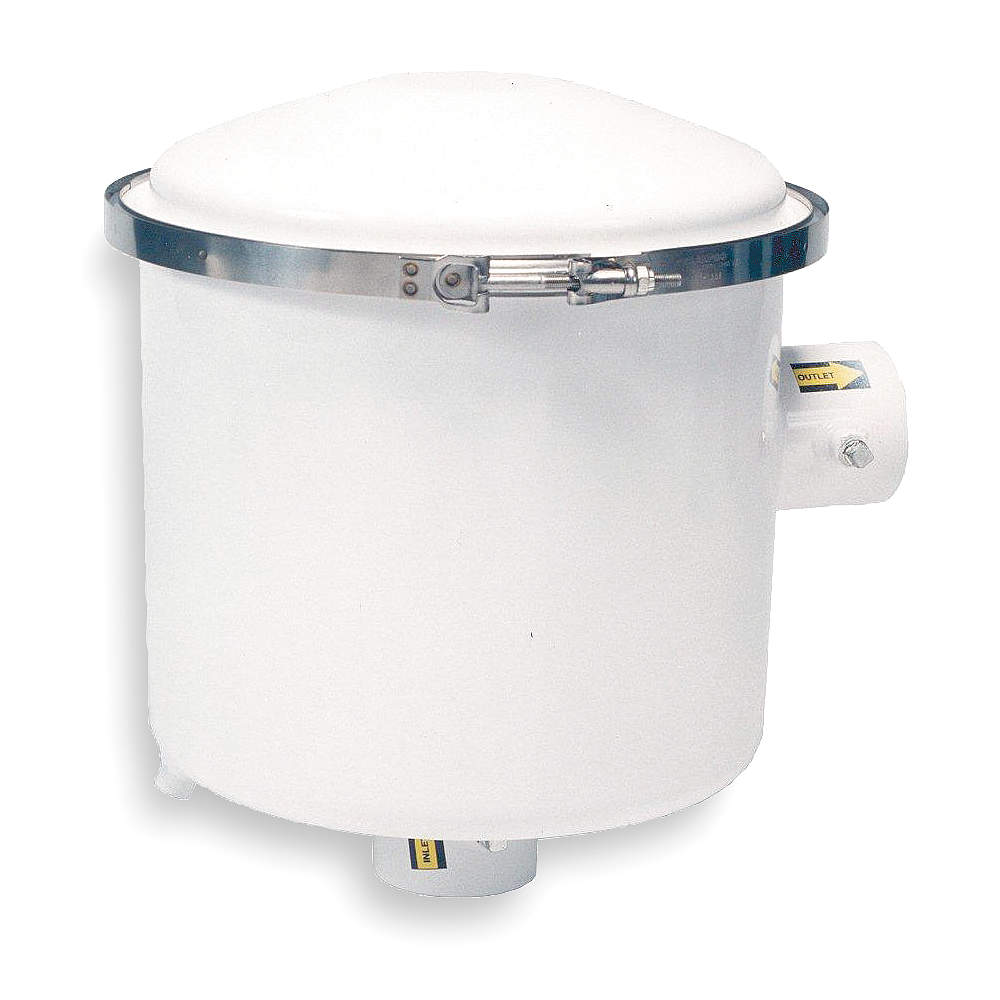

| HDL-PSG244/2-250C | 300 CFM | Steel | 15 5/8" | 15 1/4" | Metal | Female | Female | 2 1/2" | €1,765.33 | |
| HDL-PSG344/2-300 | 300 CFM | Steel | 31 1/8" | 14" | Metal | Male | Male | 3" | €3,434.47 | |
| HDL-PSG474/2-500 | 800 CFM | Steel | 38 1/8" | 18 1/2" | Metal | Male | Male | 5" | €5,800.95 | |
| HDL-PSG474/2-600 | 1100 CFM | Carbon Steel | 39 1/8" | 18 1/2" | Steel | Male | Male | - | €4,337.55 |
