SNR S6000 2RS FG1 Radial Ball Bearing, 6000, Dbl Sealed, Contact Seal, 10 mm Bore, 26 mm Od, 8 mm Width | CU3CBN 54DD78

SNR S6000 2RS FG1 Radial Ball Bearing, 6000, Dbl Sealed, Contact Seal, 10 mm Bore, 26 mm Od, 8 mm Width

Item: CU3CBNModel: S6000 2RS FG1Cross Ref: 54DD78
7 In Stock

Ships within 2 days via

€165.99
5.00% off
€157.70 /unit
Add To Cart
Request a Quote

Payment

Product Specifications:

Item Radial Ball Bearing
Abec Rating 1
Abec Tolerance Rating 1
Bearing Industry No. 6000
Bore Dia. 10 mm
Bore Dia. Tolerance -0.008 mm to 0 mm
Cage Material Stainless Steel
Cage Material Grade Grade 440C
Cage Type Pressed
Closure Double Sealed
Closure & Seal Type Double Sealed, Contact Seal
Dynamic Load Capacity 4.55 kN
Dynamic Radial Load Capacity 4.55 kN
Fillet Radius 0.3 mm
Included Retaining Ring No
Lubricant Material H1 Food Grade Solid Lubricants
Max. Speed 11100 RPM
Max. Temp. 120°C
Min. Temp. -20°C
No. Of Rows 1
Outer Ring Width 8 mm
Outside Dia. 26 mm
Outside Dia. Tolerance -0.009 mm to 0 mm
Retainer Type Ball Bearing
Retaining Ring Dia. Not Applicable
Retaining Ring Groove Yes
Retaining Ring Thickness Not Applicable
Ring Material Stainless Steel
Seal Material Rubber
Seal Type Contact
Seal/shield Type Double Sealed
Static Load Capacity 1.97 kN
Static Radial Load Capacity 1.97 kN
System Of Measurement Metric

Shipping Info:

Ship weight (kg) 0.02
Ship height (cm)2.54
Ship length (cm)2.54
Ship width (cm)2.54

Product Variants

ProductModelBore Dia.Outside Dia.Outer Ring WidthMax. SpeedOutside Dia. ToleranceStatic Radial Load CapacityDynamic Radial Load CapacityBore Dia. TolerancePrice
SNR S6001 2RS FG1 Radial Ball Bearing, 6001, Dbl Sealed, Contact Seal, 12 mm Bore, 28 mm Od, 8 mm Width | CU3CBP 54DD79 S6001 2RS FG112 mm28 mm8 mm9700 RPM-0.009 mm to 0 mm2.39 kN5.1 kN-0.008 mm to 0 mm€163.18

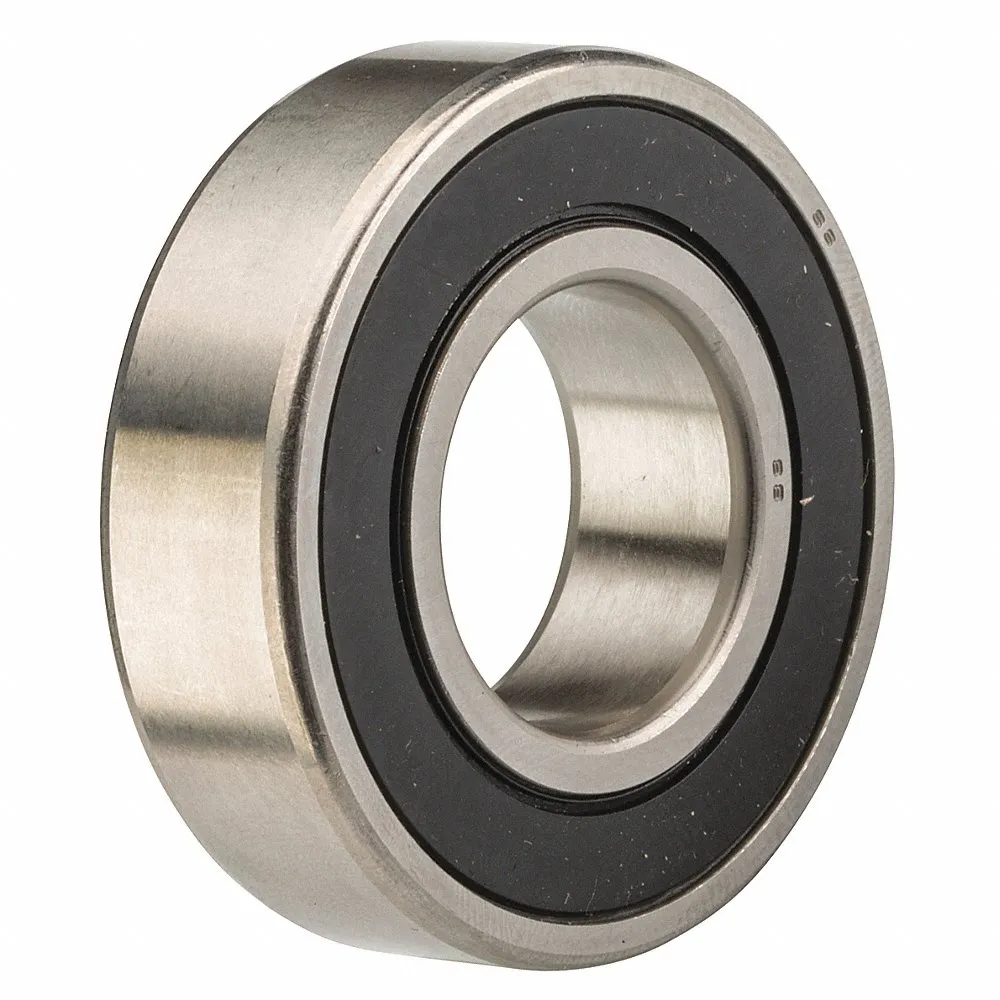

SNR S6002 2RS FG1 Radial Ball Bearing, 6002, Dbl Sealed, Contact Seal, 15 mm Bore, 32 mm Od, 9 mm Width | CU3CBQ 54DD81 S6002 2RS FG115 mm32 mm9 mm8500 RPM-0.011 mm to 0 mm2.85 kN5.5 kN-0.008 mm to 0 mm€189.40
SNR S6003 2RS FG1 Radial Ball Bearing, 6003, Dbl Sealed, Contact Seal, 17 mm Bore, 35 mm Od, 10 mm Width | CU3CBR 54DD83 S6003 2RS FG117 mm35 mm10 mm7500 RPM-0.011 mm to 0 mm3.3 kN5.9 kN-0.008 mm to 0 mm€205.68
SNR S6004 2RS FG1 Radial Ball Bearing, 6004, Dbl Sealed, Contact Seal, 20 mm Bore, 42 mm Od, 12 mm Width | CU3CBT 54DD85 S6004 2RS FG120 mm42 mm12 mm6300 RPM-0.011 mm to 0 mm5.1 kN9.3 kN-0.010 mm to 0 mm€221.83
SNR S6005 2RS FG1 Radial Ball Bearing, 6005, Dbl Sealed, Contact Seal, 25 mm Bore, 47 mm Od, 12 mm Width | CU3CBU 54DD87 S6005 2RS FG125 mm47 mm12 mm5500 RPM-0.011 mm to 0 mm5.9 kN9.9 kN-0.010 mm to 0 mm€266.99
SNR S6006 2RS FG1 Radial Ball Bearing, 6006, Dbl Sealed, Contact Seal, 30 mm Bore, 55 mm Od, 13 mm Width | CU3CBV 54DD89 S6006 2RS FG130 mm55 mm13 mm4700 RPM-0.013 mm to 0 mm8.3 kN13.1 kN-0.010 mm to 0 mm€412.62
SNR S6007 2RS FG1 Radial Ball Bearing, 6007, Dbl Sealed, Contact Seal, 35 mm Bore, 62 mm Od, 14 mm Width | CU3CBW 54DD91 S6007 2RS FG135 mm62 mm14 mm4000 RPM-0.013 mm to 0 mm10.3 kN15.7 kN-0.012 mm to 0 mm€473.38
