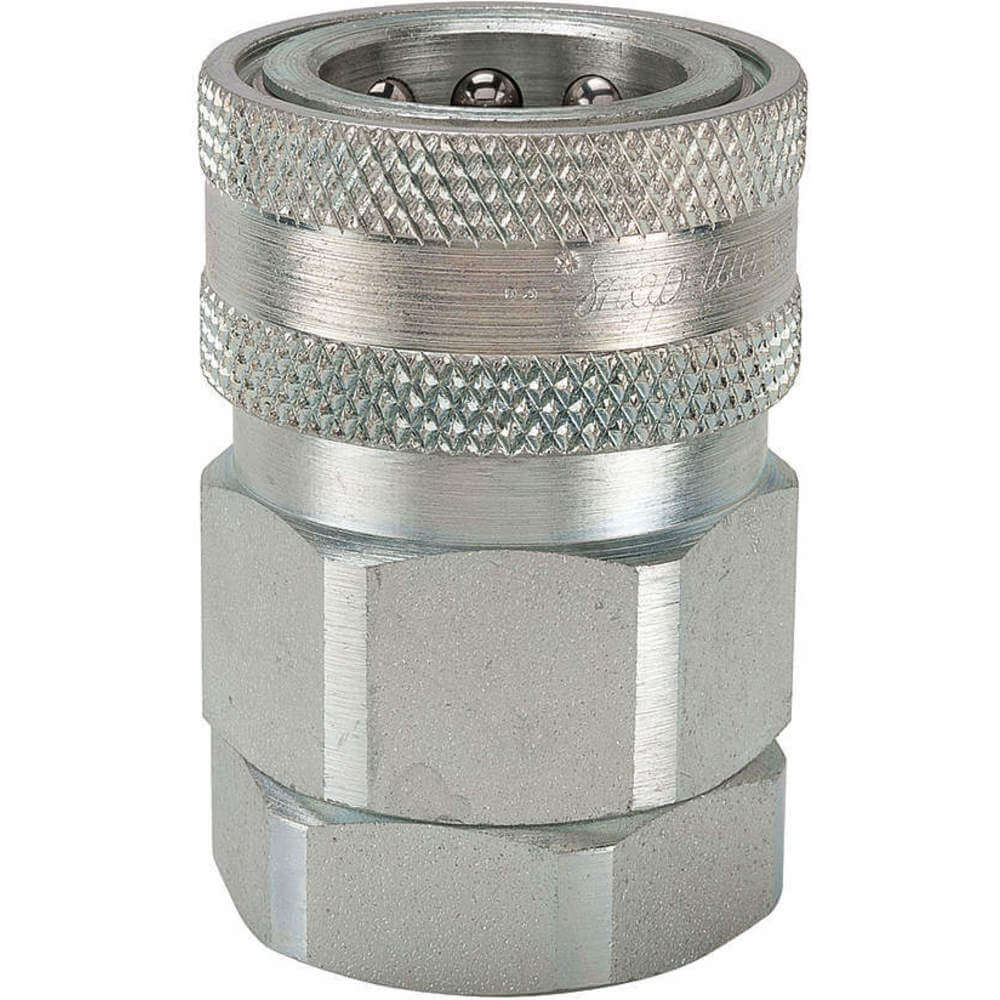

SNAP-TITE VIHC4-4F Coupler Body 1/4-18 1/4 Inch Body Steel
Item: AF6WPEModel: VIHC4-4FCross Ref: 20LJ38
7 In Stock
Ships within 2 days via
10.00% off
€63.63 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Hydraulic Coupler Body |
| Bearing Material | Stainless Steel |
| Body Material | Steel |
| Body Size | 1/4" |
| Connection Type | NPTF |
| Coupler Body Material | Steel |
| Coupler Finish | Zinc Plated |
| Coupling Component | Socket |
| Coupling Locking Type | Sleeve |
| Coupling Size | 1/4" |
| Finish | Zinc Plated |
| Finish/coating | Zinc Plated |
| Fitting Type | FNPTF |
| Flow Rate | 3.8 GPM |
| Gender | Female |
| Grade | Grade 440 |
| Hose Fitting Gender | Female |
| Includes | Sleeve Lock |
| Includes Bearing | Yes |
| Includes Shut Off | Yes |
| Includes Valve | Yes |
| Length | 1 21/32" |
| Locking Mechanism | Ball |
| Locking Type | Sleeve |
| Max. Flow Rate | 14.38 LPM |
| Max. Outside Dia. | 1 3/16" |
| Max. Pressure | 6500 psi |
| Max. Working Pressure @ 70 F | 6500 psi |
| Overall Length | 1 21/32" |
| Parker Interchange | VIHC4-4F |
| Quick Coupler Type | Hydraulic Coupler Body |
| Seal Material | Nitrile |
| Series | IH Series |
| Shut Off | Yes |
| Sleeve Material | Steel |
| Thread Size | 1/4"-18 |
| Valve Design | Poppet |
| Valve Type | Tubular |
Shipping Info:
| Ship weight (kg) | 0.09 |
| Ship height (cm) | 3.34 |
| Ship length (cm) | 11.11 |
| Ship width (cm) | 10.8 |
| HS code | 8481803090 |
Product Variants
| Model | Connection Type | Coupling Size | Locking Type | Valve Type | Max. Pressure | Body Size | Body Material | Valve Design | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| VIHC12-12F | NPTF | 3/4" | Ball | Poppet | 3500 psi | - | Steel | Poppet | €141.21 | |

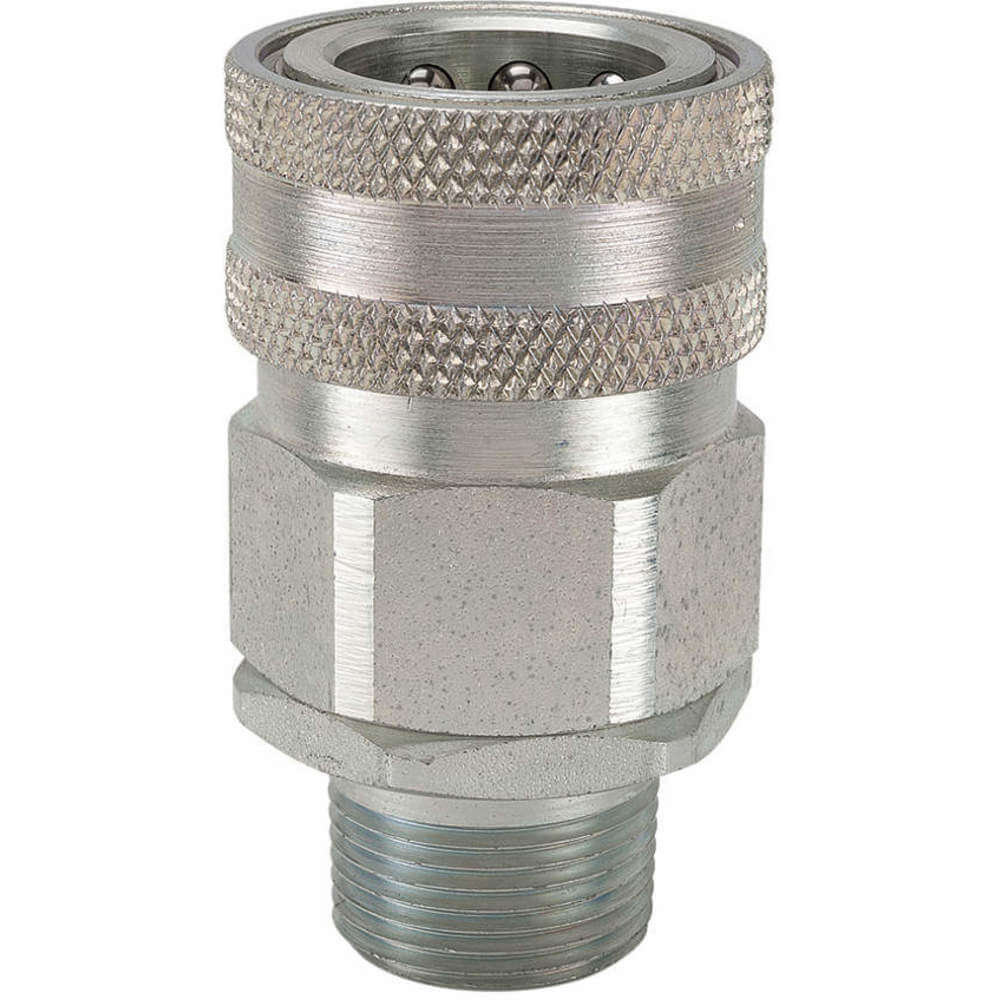

| VIHC4-4M | NPT | 1/4" | Sleeve | Tubular | 6500 psi | 1/4" | Steel | Poppet | €78.96 | |
| VIHC6-6F | NPTF | 3/8" | Sleeve | Tubular | 4500 psi | 3/8" | Steel | Poppet | €88.45 | |
| VIHC6-6M | NPT | 3/8" | Sleeve | Tubular | 4500 psi | 3/8" | Steel | Poppet | €103.89 | |
| VIHC8-8F | NPTF | 1/2" | Sleeve | Poppet | 4000 psi | 1/2" | Steel | Poppet | €100.78 |
