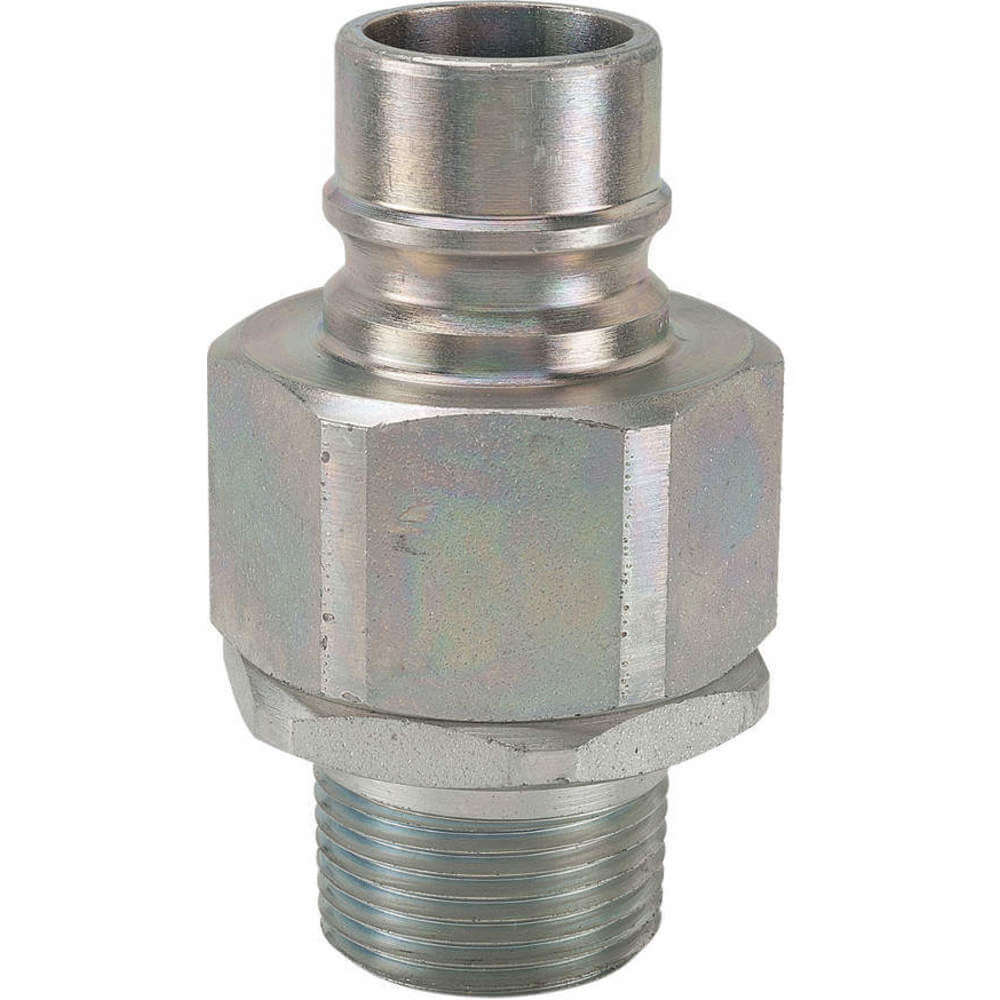

SNAP-TITE VHN4-4MV Coupler Nipple 1/4-18 Body Steel
Item: AF6WNQModel: VHN4-4MVCross Ref: 20LJ25
7 In Stock
Ships within 2 days via
10.00% off
€38.52 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Hydraulic Coupler Nipple |
| Body Material | Steel |
| Connection Type | NPT |
| Coupler Body Material | Steel |
| Coupler Finish | Zinc Plated |
| Coupling Component | Plug |
| Coupling Locking Type | Ball |
| Coupling Size | 1/4" |
| Finish | Zinc Plated |
| Finish/coating | Zinc Plated |
| Fitting Type | MNPT |
| Flow Rate | 3.8 GPM |
| Hose Fitting Gender | Male |
| Includes Bearing | No |
| Includes Shut Off | Yes |
| Includes Valve | Yes |
| Locking Mechanism | Ball |
| Locking Type | Ball |
| Max. Flow Rate | 14.38 LPM |
| Max. Outside Dia. | 1 1/64" |
| Max. Pressure | 6500 psi |
| Max. Working Pressure @ 70 F | 6500 psi |
| Overall Length | 2 1/64" |
| Parker Interchange | VHN4-4MV |
| Quick Coupler Type | Hydraulic Coupler Nipple |
| Seal Material | Fluorocarbon |
| Series | H Series |
| Shut Off | Yes |
| Sleeve Material | Steel |
| Thread Size | 1/4"-18 |
| Valve Design | Poppet |
| Valve Type | Poppet |
Shipping Info:
| Ship weight (kg) | 0.07 |
| Ship height (cm) | 3.34 |
| Ship length (cm) | 11.11 |
| Ship width (cm) | 10.8 |
| HS code | 8481803090 |
Product Variants
| Product | Model | Body Material | Coupling Size | Valve Type | Locking Type | Connection Type | Max. Pressure | Shut Off | Sleeve Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
SVHN8-8M | Stainless Steel | 1/2" | Poppet | Push To Connect | NPT | 3750 psi | Yes | Stainless Steel | €350.90 | |
|
SVHN8-8MV | Stainless Steel | 1/2" | Poppet | Ball | NPT | 3750 psi | Yes | Stainless Steel | €400.95 | |
 |
BVHN12-12F | Brass | 3/4" | Poppet | Ball | NPTF | 2000 psi | Yes | Brass | €108.10 | |
|
BVHN12-12FV | Brass | 3/4" | Poppet | Ball | NPTF | 2000 psi | Yes | Brass | €126.46 | |
 |
BVHN12-12M | Brass | 3/4" | Poppet | Ball | NPT | 2000 psi | Yes | Brass | €125.49 | |
|
BVHN16-16F | Brass | 1" | Poppet | Ball | NPTF | 1750 psi | Yes | Brass | €207.69 | |
|
BVHN16-16FV | Brass | 1" | Poppet | Ball | NPTF | 1750 psi | Yes | Brass | €242.22 |
