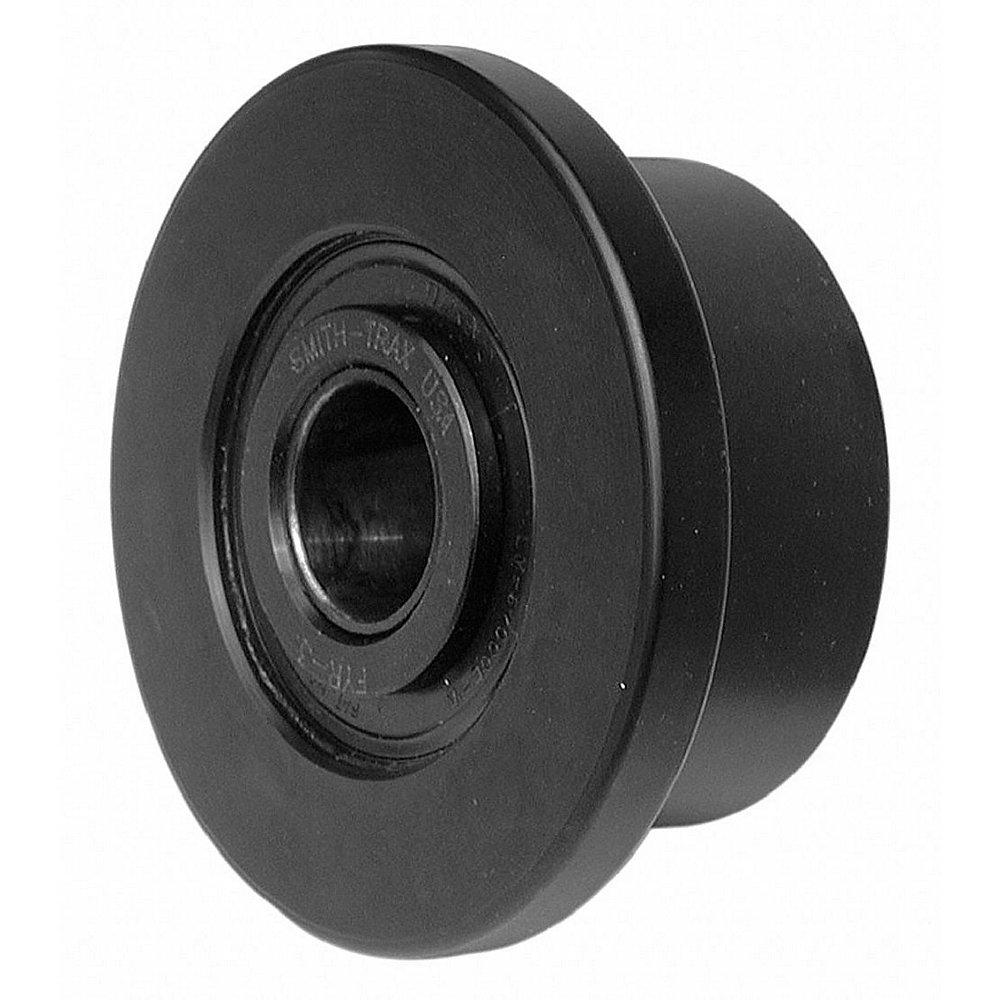

SMITH BEARING MFYR-100 MFYR-100 Smith-Trax Metric Idler Roller Flanged Yoke Type
Item: DF4TJKModel: MFYR-100Cross Ref: 798DV2
7 In Stock
Ships within 2 days via
€515.51 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Bearing Material | Alloy Steel |
| Bearing Material Grade | 52100 |
| Bearing Type | Tapered Roller |
| Bore Dia. | 100 mm |
| Bore Dia. Tolerance | -0.02 to 0 |
| Closure | Double Sealed |
| Duty Type | Heavy Duty |
| Dynamic Radial Load Capacity | 78200N |
| Dynamic Thrust Load Rating 500 Hrs. 33 Rpm. | 25600 |
| Enclosure | Unsealed |
| Flange Outside Dia. | 122 |
| Flange Thickness | 13.5 mm |
| Flange Width | 13.5 |
| Material | Steel |
| Max. Static Capacity | 58300 N-m |
| Max. Temp. | 250°F |
| Min. Temp. | -40°F |
| Osbron P/n | HPJA-100 |
| Overall Width | 56" |
| Radial Basic Dynamic Rating 500 Hrs. 33 Rpm. | 78200N |
| Roller Material Grade | Grade 52100 |
| Roller Outside Dia. | 100 |
| Roller Width | 54 mm |
| Rolling Element Rows | 2 |
| Seal Material | Acetyl |
| Seal Type | Contact Seal |
| Series | MFYR Series |
| Shoulder Length | 1 |
| Shoulder Width End Plate Dia. | 57.2 mm |
| Shoulder Width Or End Plate Dia. | 57.2 |
| Smith Bearing Number | MFYR-100 |
| System Of Measurement | Metric |
Shipping Info:
| Ship weight (kg) | 3.4 |
| Ship height (cm) | 10.16 |
| Ship length (cm) | 7.62 |
| Ship width (cm) | 10.16 |
