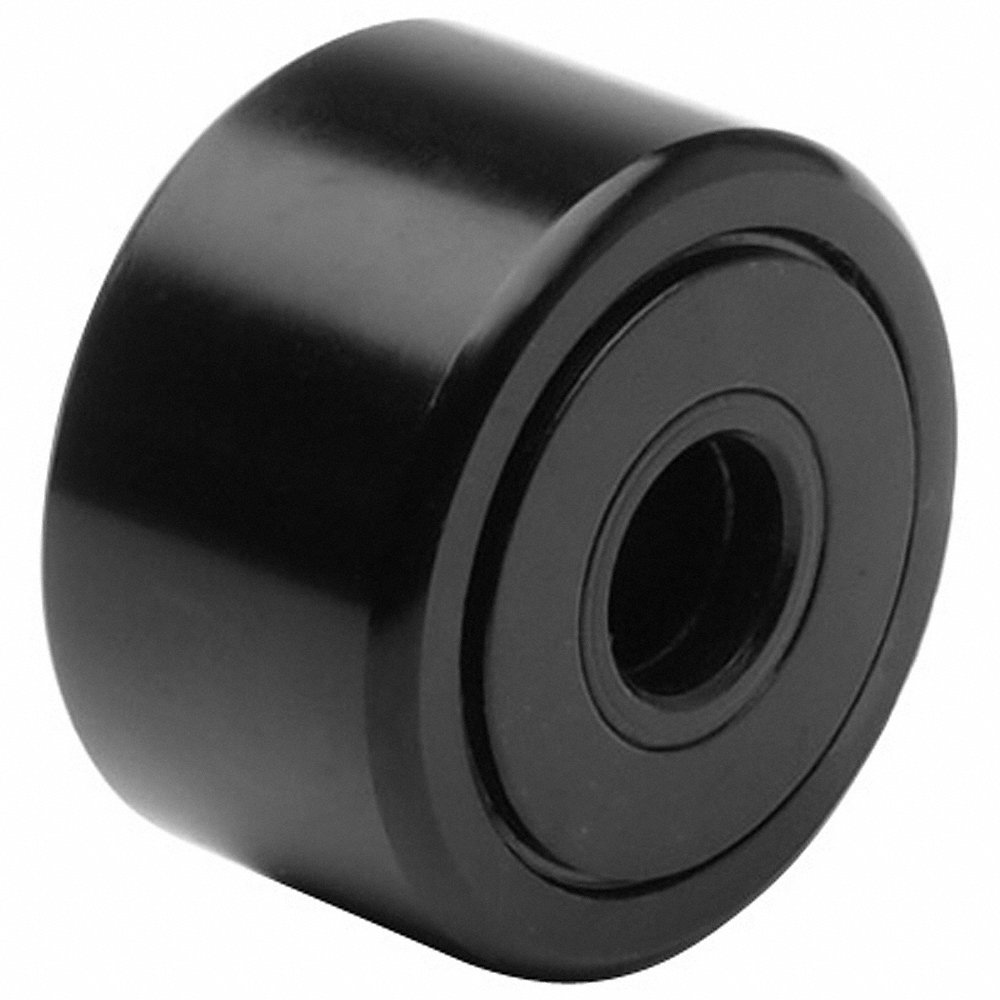

SMITH BEARING BYR-1-1/8-X BYR-1-1/8-X Yoke Type Sealed Non Metallic Bushing Cam Follower
Item: DE3AWRModel: BYR-1-1/8-XCross Ref: 798EA3
7 In Stock
Ships within 2 days via
13.00% off
€47.65 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| (a) Bore Nominal Tolerance | -0.0004 to +0.0002 |
| (b) Roller Width Tolerance | -0.005" to 0" |
| (d) Roller O.d. Tolerance | -0.001 to 0 |
| (w) Overall Width Tolerance | -0.01" to +0.005" |
| Bearing Material | Plastic |
| Bearing Type | Bushing |
| Bore Dia. | 5/16" |
| Bore Nominal | 0.3125 |
| Closure | Double Sealed |
| D Roller Outside Dia. | 1.125 |
| Duty Type | Standard Duty |
| Max. Temp. | 200°F |
| Min. Temp. | -40°F |
| Recomm. Shaft Dia. Press Fit Min. | 0.3126 |
| Recomm. Shaft Dia. Slip Fit Min. | 0.3118 |
| Roller Dia. | 1 1/8" |
| Roller Head Type | Flat |
| Roller Width | 5/8" |
| Rolling Element Rows | 1 |
| Seal Material | Molded Acetyl |
| Seal Type | Contact Seal |
| Self Lubricating Bearing | Yes |
| Smith Bearing Number | BYR-1-1/8-x |
| System Of Measurement | Imperial |
Shipping Info:
| Ship weight (kg) | 0.08 |
| Ship height (cm) | 5.08 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 5.08 |
