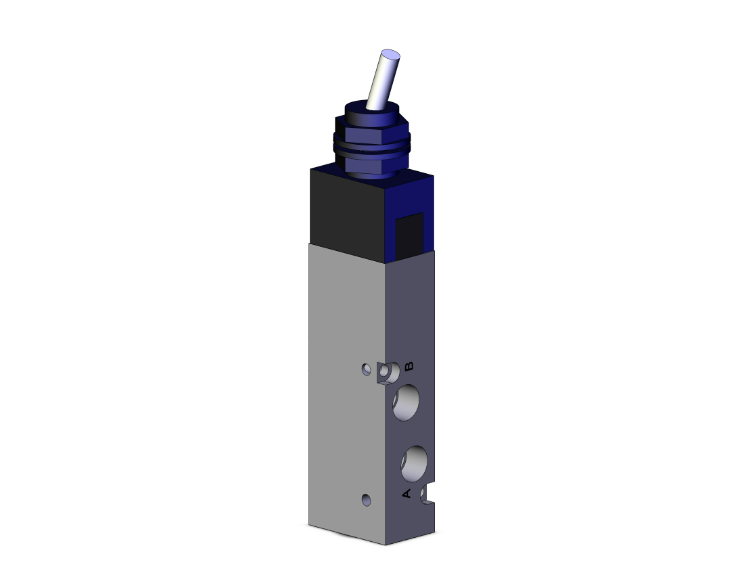

SMC VALVES VZM550-01-08 Mechanical Valve, 1/8 Port Size
Get it by Tuesday, Aug 25
€81.92 /unit
This product can only be shipped in multiples of 2Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Mechanical Valve |
| Actuator Type | Toggle Lever |
| Body Material | Aluminum |
| Flow Direction | 4-Way |
| Max. Operating Pressure | 0.7 MPa |
| Min. Operating Pressure | 0.15 MPa |
| Mounting Method | Side |
| No. Of Port | 5 |
| No. Of Positions | 2 |
| Nominal Designation Of Piping Thread | 0.125 |
| Operating Temp. | -5°C to +60°C |
| Overall Height | 28 mm |
| Overall Length | 129.5 mm |
| Overall Width | 18 mm |
| Pipe Port Type | Rc |
| Piping Type | Body Ported |
| Plumbing Type & Direction | Direct Side |
| Port 1 Size/type | 1/8" BSPT |
| Port Connection Type | Threaded |
| Port Gender | Female |
| Push Button Type | Mushroom |
| Seal Material | Nitrile |
| Switching Operation | Push Button |
| Valve Flow Coefficient Cv | 10.71 sq. mm |
| Valve Function | Spool |
| Valve Positioner Travel | 40° |
Shipping Info:
| Ship weight (kg) | 0.9 |
| Ship height (cm) | 5.08 |
| Ship length (cm) | 7.62 |
| Ship width (cm) | 5.08 |
Product Variants
| Product | Model | MPN | Price | |
|---|---|---|---|---|
 |
NVZM451-N01-08 | NVZM451-N01-08 | €65.47 | |
 |
EVZM550-F01-02S | EVZM550-F01-02S | €64.48 | |
 |
NVZM451-N01-00 | NVZM451-N01-00 | €53.53 | |
|
NVZM451-N01-01 | NVZM451-N01-01 | €59.47 | |
 |
NVZM451-N01-33 | NVZM451-N01-33 | €66.06 | |
 |
NVZM550-N01-06S | NVZM550-N01-06S | €83.75 | |
 |
NVZM550-N01-08 | NVZM550-N01-08 | €73.94 |
