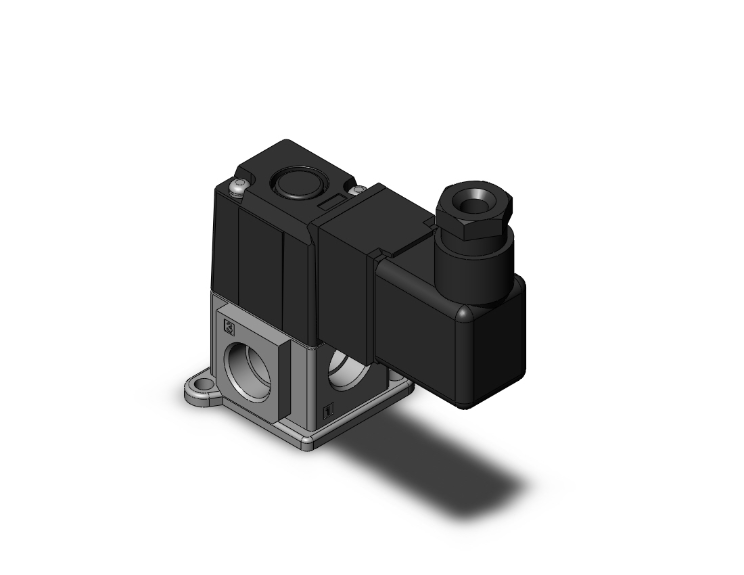

SMC VALVES VT307-5D1-02N-F Valve, 3 Port Size
Get it by Tuesday, Sep 1
€36.76 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Solenoid Valve |
| Manual Operation Type | Non-Locking Push |
| Max. Operating Pressure | 101 psi |
| No. Of Port | 3 |
| No. Of Positions | 2 |
| No. Of Solenoids | 1 |
| Operating Medium | Air |
| Operating Temp. | 14°F to 122°F |
| Piping Type | Body Ported |
| Port Sizes | 1/4" NPT |
| Series | VT3 Series |
| Solenoid Electrical Entry | DIN Terminal |
| Solenoid Supply Voltage | 24V DC |
| Valve Function | Poppet |
Shipping Info:
| Ship weight (kg) | 0.9 |
| Ship height (cm) | 5.08 |
| Ship length (cm) | 7.62 |
| Ship width (cm) | 5.08 |
Product Variants
| Product | Model | Voltage | Overall Height | Actuation | Pressure Rating (mpa) | Port Size | Operating Temp. | Solenoid Supply Voltage | Max. Operating Pressure | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
VT317-1D-02 | 100V AC | - | Single | 0 MPa to 0.9 MPa | 0.25 | - | - | - | €101.05 | |
 |
VT317-1G-02 | 100V AC | - | Single | 0 MPa to 0.9 MPa | 0.25 | - | - | - | €108.42 | |
 |
VT317-3C-02 | 110V AC | - | Single | 0 MPa to 0.9 MPa | 0.25 | - | - | - | €94.91 | |
 |
VT317-3D-02 | 110V AC | - | Single | 0 MPa to 0.9 MPa | 0.25 | - | - | - | €101.05 | |
 |
VT317-3DZ-02 | 110V AC | - | Single | 0 MPa to 0.9 MPa | 0.25 | - | - | - | €132.52 | |
 |
VT317-3G-02 | 110V AC | - | Single | 0 MPa to 0.9 MPa | 0.25 | - | - | - | €90.61 | |
 |
VT317-4D-02 | - | - | - | - | - | - | - | - | €101.05 |
