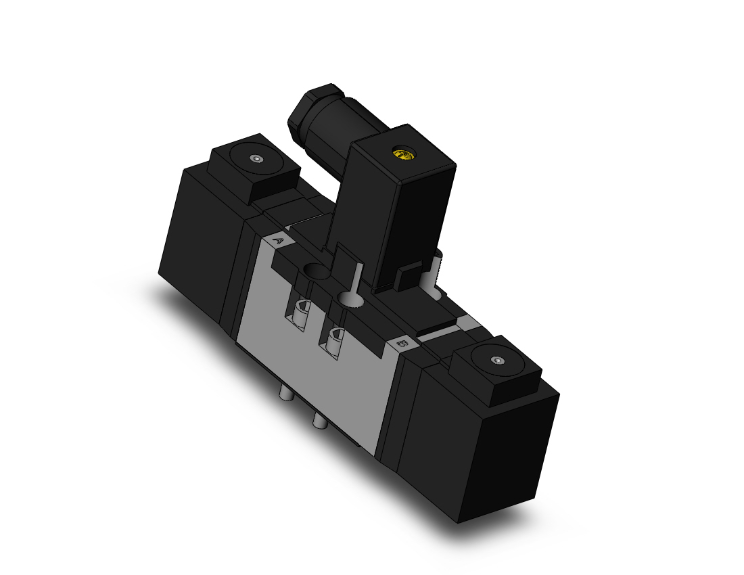

SMC VALVES VS7-6-FG-D-1 Solenoid Valve
Get it by Tuesday, Sep 1
€157.34 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Solenoid Valve |
| Actuation | Piloted Solenoid |
| Flow Direction | 4-Way |
| Manual Operation Type | Non-Locking Push |
| Max. Operating Pressure | 101 psi |
| No. Of Port | 5 |
| No. Of Positions | 2 |
| No. Of Solenoids | Double |
| Operating Temp. | 41°F to 140°F |
| Overall Height | 95.5 mm |
| Overall Length | 160 mm |
| Overall Width | 38 mm |
| Piping Type | Body Ported |
| Response Time | 0.015 sec. |
| Seal Material | Metal |
| Series | VS7 Series |
| Set Pressure | 0.1 MPa to 0.83 MPa |
| Solenoid Coil Insulation | Class B |
| Solenoid Electrical Entry | DIN Terminal |
| Solenoid Supply Frequency | 50/60 Hz |
| Solenoid Supply Voltage | 100V AC |
| Valve Function | Spool |
Shipping Info:
| Ship weight (kg) | 0.9 |
| Ship height (cm) | 5.08 |
| Ship length (cm) | 7.62 |
| Ship width (cm) | 5.08 |
Product Variants
| Product | Model | Voltage | Overall Height | Overall Width | No. Of Solenoids | Actuation | Mounting Orientation | Application | Port Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
ARB210-00-A | - | - | - | - | - | - | - | - | €85.73 | |
 |
ARB210-00-A-X204 | - | - | - | - | - | - | - | - | €85.73 | |
|
ARB210-00-B-X204 | - | - | - | - | - | - | - | - | €85.73 | |
 |
ARB250-00-A | - | - | - | - | - | - | - | - | €113.38 | |
|
ARB250-00-P | - | - | - | - | - | - | - | - | €120.93 | |
|
ARB350-00-P | - | - | - | - | - | - | - | - | €120.93 | |
 |
VQ7-6-FG-D-3NSC | 24V DC | - | - | - | Double | Manifold Base | Unit For Manifold Mounting | - | €214.60 |
