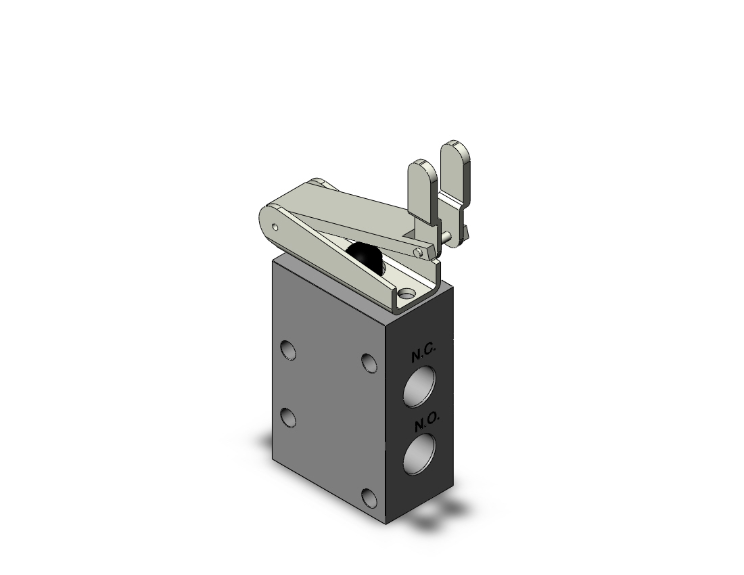

SMC VALVES VM430-N01-02S Mechanical Valve, 1/8 Port Size
Get it by Tuesday, Jul 14
€35.37 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Mechanical Valve |
| Actuator Type | Roller Lever |
| Body Material | Aluminum |
| Flow Coefficient/flow Factor | 7 sq. mm |
| Flow Direction | 2-Way |
| Max. Operating Pressure | 1 MPa |
| Min. Operating Pressure | -100 kPa |
| Mounting Method | Side |
| No. Of Port | 3 |
| No. Of Positions | 2 |
| Nominal Designation Of Piping Thread | 0.125 |
| Normal State | No |
| Operating Pressure | 100 kPa to 1 MPa |
| Operating Temp. | -5°C to +60°C |
| Overall Height | 35 mm |
| Overall Length | 102 mm |
| Overall Width | 21 mm |
| Pipe Port Type | NPT |
| Piping Type | Body Ported |
| Plumbing Type & Direction | Direct Side |
| Plunger Type | Roller Plunger |
| Port 1 Size/type | 1/8" NPT |
| Port Connection Type | Threaded |
| Port Gender | Female |
| Seal Material | Nitrile |
| Suffix For Actuator | Hard Steel Roller |
| Switching Operation | Plunger |
| Valve Flow Coefficient Cv | 5.36 sq. mm |
| Valve Function | Spool |
| Valve Positioner Travel | 9 mm |
Shipping Info:
| Ship weight (kg) | 0.9 |
| Ship height (cm) | 5.08 |
| Ship length (cm) | 7.62 |
| Ship width (cm) | 5.08 |
