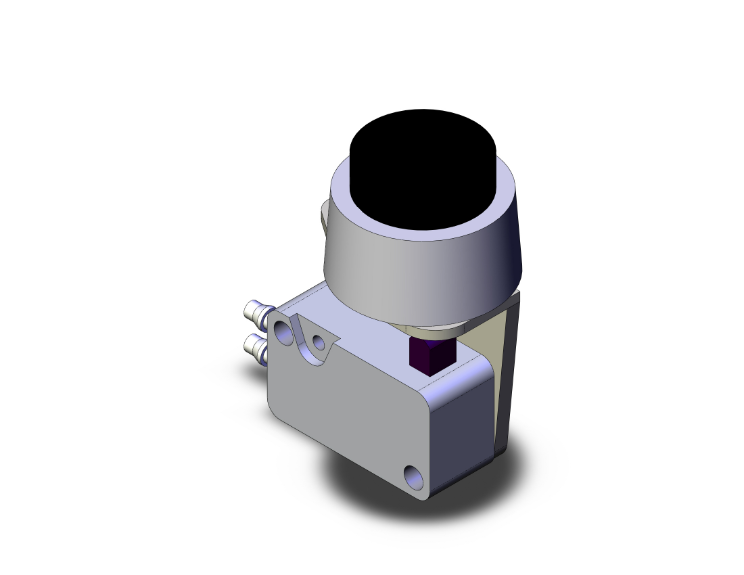

SMC VALVES VM1000-4NU-32B Mechanical Valve, 1/4 Inch Size, With Fitting
Item: AL3ZZRModel: VM1000-4NU-32B
7 In Stock
Ships within 2 days via
€29.48 /unit
This product can only be shipped in multiples of 3Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Mechanical Valve |
| Actuator Type | Push Button |
| Body Material | PBT |
| Compatible Tubing | T0425 |
| Connecting Tube Dia. | 4 |
| Flow Coefficient/flow Factor | 1 sq. mm |
| Flow Direction | 2-Way |
| Max. Operating Pressure | 0.8 MPa |
| Mounting Method | Side |
| No. Of Port | 3 |
| No. Of Positions | 2 |
| Normal State | No |
| Operating Pressure | 0 MPa to 0.8 MPa |
| Operating Temp. | -5°C to +60°C |
| Overall Height | 41.4 mm |
| Overall Length | 46.4 mm |
| Overall Width | 11 mm |
| Pipe Port Type | One Touch Pipe |
| Piping Type | Body Ported |
| Plumbing Type & Direction | Direct Side |
| Rod Arm Type | Spring Rod |
| Seal Material | Nitrile |
| Switching Operation | Rod Arm |
| Valve Flow Coefficient Cv | 0.93 sq. mm |
| Valve Function | Poppet |
| Valve Positioner Travel | 4.5 mm |
Shipping Info:
| Ship weight (kg) | 0.9 |
| Ship height (cm) | 5.08 |
| Ship length (cm) | 7.62 |
| Ship width (cm) | 5.08 |
Product Variants
| Product | Model | MPN | Price | |
|---|---|---|---|---|
 |
NVZM450-N01-06S | NVZM450-N01-06S | €119.99 | |
 |
NVZM450-N01-00 | NVZM450-N01-00 | €55.93 | |
 |
NVM430-N01-01 | NVM430-N01-01 | €36.86 | |
 |
NVM830-N01-13 | NVM830-N01-13 | €106.55 | |
 |
3402184 | 3402184 | €1.58 | RFQ
|
|
3402186B | 3402186B | €1.36 | RFQ
|
|
3402186G | 3402186G | €1.36 | RFQ
|
