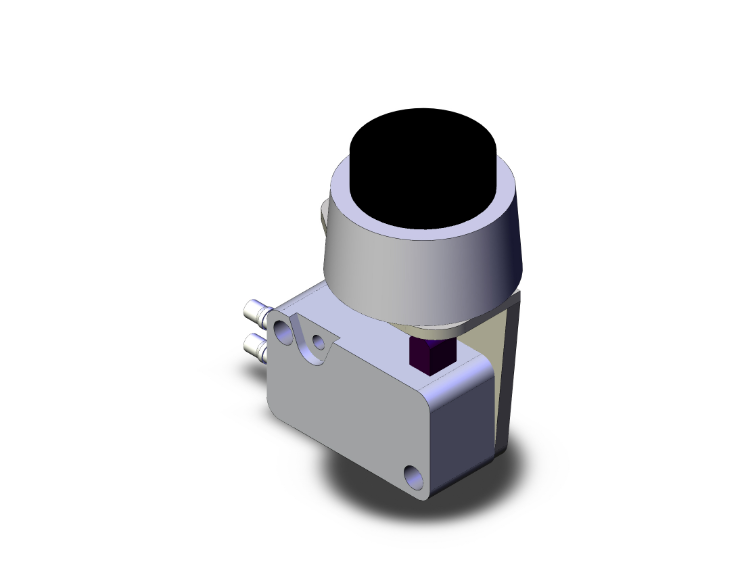

SMC VALVES VM1000-4N-32B Mechanical Valve, 1/4 Inch Size, With Fitting
Item: AL3ZZKModel: VM1000-4N-32B
7 In Stock
Ships within 2 days via
€29.48 /unit
This product can only be shipped in multiples of 3Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Mechanical Valve |
| Actuator Type | Push Button |
| Body Material | PBT |
| Compatible Tubing | TU0425/T0403/TS0425 |
| Connecting Tube Dia. | 4 |
| Flow Coefficient/flow Factor | 1 sq. mm |
| Flow Direction | 2-Way |
| Max. Operating Pressure | 0.8 MPa |
| Mounting Method | Side |
| No. Of Port | 3 |
| No. Of Positions | 2 |
| Normal State | No |
| Operating Pressure | 0 MPa to 0.8 MPa |
| Operating Temp. | -5°C to +60°C |
| Overall Height | 41.4 mm |
| Overall Length | 46.4 mm |
| Overall Width | 11 mm |
| Pipe Port Type | One Touch Pipe |
| Piping Type | Body Ported |
| Plumbing Type & Direction | Direct Side |
| Port 1 Size/type | 2.5 mm |
| Port Connection Type | Barbed |
| Rod Arm Type | Spring Rod |
| Seal Material | Nitrile |
| Switching Operation | Rod Arm |
| Total Travel/basic (t.t.) | 4.8 mm |
| Valve Flow Coefficient Cv | 0.93 sq. mm |
| Valve Function | Poppet |
| Valve Positioner Travel | 4.5 mm |
Shipping Info:
| Ship weight (kg) | 0.9 |
| Ship height (cm) | 5.08 |
| Ship length (cm) | 7.62 |
| Ship width (cm) | 5.08 |
Product Variants
| Product | Model | MPN | Price | |
|---|---|---|---|---|
 |
NVZM451-N01-08 | NVZM451-N01-08 | €65.47 | |
 |
EVZM550-F01-02S | EVZM550-F01-02S | €64.48 | |
 |
NVZM451-N01-00 | NVZM451-N01-00 | €53.53 | |
|
NVZM451-N01-01 | NVZM451-N01-01 | €59.47 | |
 |
NVZM451-N01-33 | NVZM451-N01-33 | €66.06 | |
 |
NVZM550-N01-06S | NVZM550-N01-06S | €83.75 | |
 |
NVZM550-N01-08 | NVZM550-N01-08 | €73.94 |
