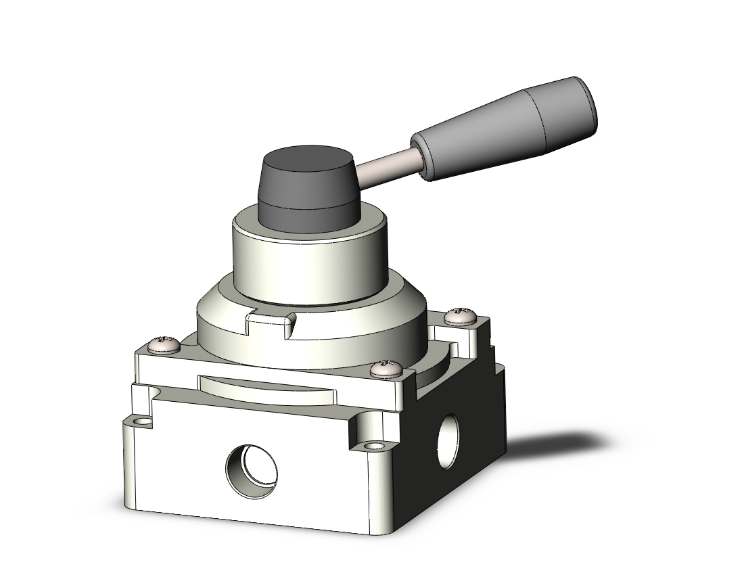

SMC VALVES VH402-03 Hand Valve, 3/8 Inch Size Body Port
€91.41 /unit
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Hand Valve |
| Actuator Type | Rod Lever |
| Body Material | Aluminum |
| Flow Direction | 4-Way |
| Max. Operating Pressure | 1 MPa |
| No. Of Port | 4 |
| No. Of Positions | 2 |
| Operating Medium | Air |
| Operating Pressure Range | Maximum Of 1 Mpa |
| Operating Temp. | -5°C to +60°C |
| Overall Height | 123 mm |
| Overall Length | 144 mm |
| Overall Width | 102 mm |
| Piping Type | Body Ported |
| Port 1 Size/type | 3/8" BSPT |
| Port Connection Type | Threaded |
| Port Gender | Female |
| Seal Material | Nitrile |
| Valve Function | Rotary |
| Valve Positioner Travel | 90° |
