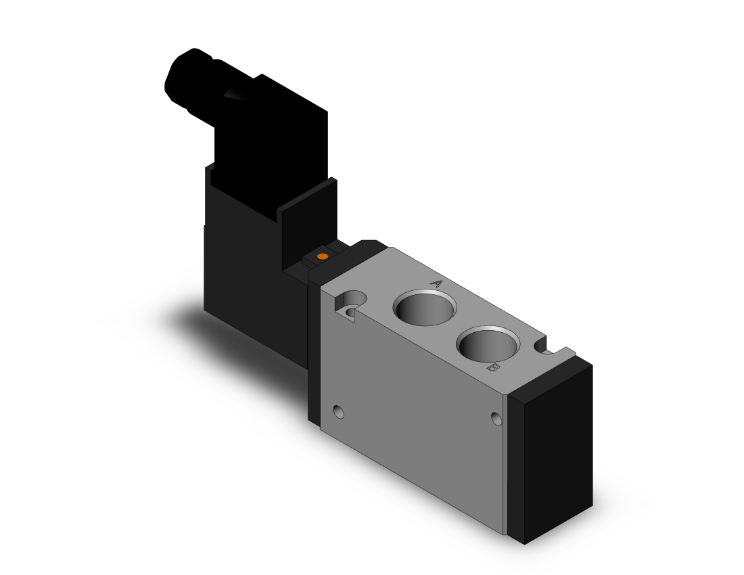

SMC VALVES VFS3120-3DZ-03 Solenoid Valve, 3/8 Inch Size Body Port
Get it by Wednesday, Jul 15
€112.79 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Solenoid Valve |
| Actuation | Single |
| Application | Single Unit |
| Body Material | Aluminum |
| Body Type | Pilot Individual Exhaust |
| Driving Type | 0.1 To 1 |
| Flow Coefficient | 1.1 |
| Flow Direction | 4-Way |
| Indicator Light/surge Voltage Suppressor | With Indicator Light, Surge Voltage Suppressor |
| Manual Operation Type | Non-Locking Push |
| Manual Switch | Lock |
| Max. Operating Pressure | 101 psi |
| Mounting Orientation | Direct |
| No. Of Port | 5 |
| No. Of Positions | 2 |
| No. Of Solenoids | 1 |
| Operating Temp. | 14°F to 140°F |
| Overall Height | 92.5 mm |
| Overall Length | 153.5 mm |
| Overall Width | 30 mm |
| Pipe Port Type | NPTF |
| Piping Type | Body Ported Subplate Included |
| Plumbing | Non Locking |
| Port Size | 0.25 |
| Seal Material | Metal |
| Series | VFS Series |
| Solenoid Coil Insulation | Class B |
| Solenoid Power Consumption | 2.1 W @ 50 Hz |
| Solenoid Supply Frequency | 50/60 Hz |
| Solenoid Supply Voltage | 110-120V AC |
| Type | Solenoid Valve |
| Valve Function | Spool |
| Valve Positions | 2 Position Exhaust |
| Voltage | 110/120V AC |
Shipping Info:
| Ship weight (kg) | 0.9 |
| Ship height (cm) | 5.08 |
| Ship length (cm) | 7.62 |
| Ship width (cm) | 5.08 |
Product Variants
| Product | Model | Overall Length | Price | |
|---|---|---|---|---|
 |
ARBF3000-00-A-2 | - | €128.04 | |
|
ARBF3050-00-A-1 | - | €173.97 | |
|
ARBF3050-00-P-1 | - | €177.23 | |
|
ARBF3050-00-P-2 | - | €198.93 | |
 |
VFS3100-1FZ | - | €128.33 | |
 |
VFS3100-3FZ-03 | - | €136.89 | |
 |
VFS3100-5F | - | €119.73 |
