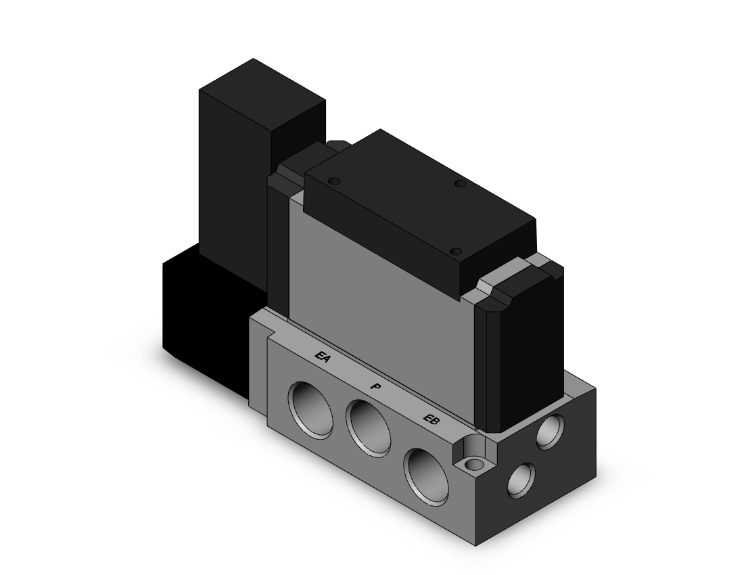

SMC VALVES VFS3100-5FZ-03T Solenoid Valve, 3/8 Base Mount Size
Item: AN7NXEModel: VFS3100-5FZ-03T
7 In Stock
Ships within 2 days via
€163.80 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Solenoid Valve |
| Actuation | Single |
| Applicable Cylinder Dia. | 40 to 140 |
| Application | Single Unit |
| Body Option | Standard |
| Body Type | Plug-In Sub-Plate |
| Driving Type | 0.1 To 1 |
| Flow Coefficient | 1.4 |
| Indicator Light/surge Voltage Suppressor | With Indicator Light, Surge Voltage Suppressor |
| Lead Wire Electrical Entry | Plug-In Conduit Terminal |
| Manual Operation Type | Non-Locking Push |
| Mounting Orientation | Direct |
| No. Of Port | 5 |
| No. Of Positions | 2 |
| No. Of Solenoids | 1 |
| Operating Medium | Air |
| Operating Temp. | 14°F to 140°F |
| Pipe Port Type | NPTF |
| Piping Type | Base Mounted Plug In |
| Port Size | 0.25 |
| Type | Solenoid Valve |
| Valve Positions | 2 Position Exhaust |
Shipping Info:
| Ship weight (kg) | 0.9 |
| Ship height (cm) | 5.08 |
| Ship length (cm) | 7.62 |
| Ship width (cm) | 5.08 |
Product Variants
| Product | Model | Voltage | Overall Height | Overall Width | Port Size | Actuation | Mounting Orientation | Application | No. Of Solenoids | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
ARBF3000-00-A-2 | - | - | - | - | - | - | - | - | €128.04 | |
|
ARBF3050-00-A-1 | - | - | - | - | - | - | - | - | €173.97 | |
|
ARBF3050-00-P-1 | - | - | - | - | - | - | - | - | €177.23 | |
|
ARBF3050-00-P-2 | - | - | - | - | - | - | - | - | €198.93 | |
 |
VFS3100-1FZ | 200V AC | - | - | - | Single | Manifold Base | Unit For Manifold Mounting | - | €128.33 | |
 |
VFS3100-3FZ-03 | 110/120V AC | - | - | - | Single | Manifold Base | Unit For Manifold Mounting | - | €136.89 | |
 |
VFS3100-5F | 24V DC | - | - | 0.375 | Single | Direct | Single Unit | - | €119.73 |
