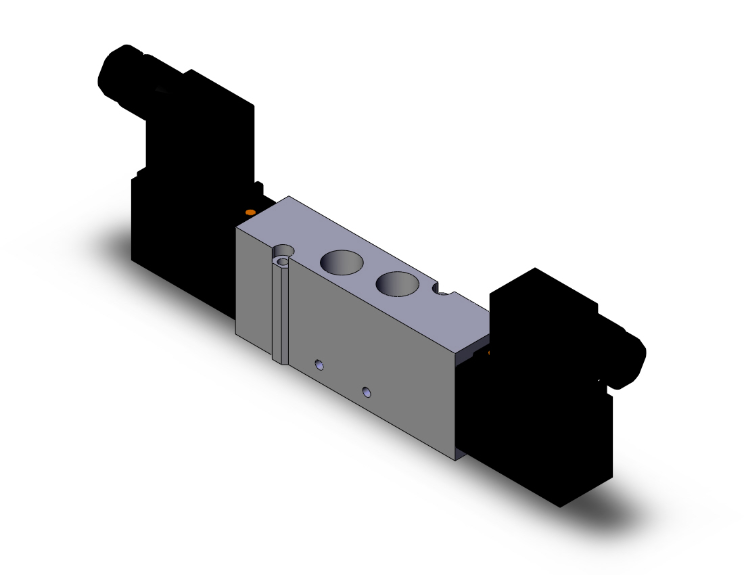

SMC VALVES VFS2220-3D-02T Solenoid Valve, 1/4 Port Size
Get it by Tuesday, Aug 18
€130.48 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Solenoid Valve |
| Actuation | Piloted Solenoid |
| Flow Direction | 4-Way |
| Manual Operation Type | Non-Locking Push |
| Max. Operating Pressure | 145 psi |
| No. Of Port | 5 |
| No. Of Positions | 2 |
| No. Of Solenoids | Double |
| Operating Medium | Air |
| Operating Temp. | 14°F to 140°F |
| Piping Type | Body Ported |
| Proof Pressure | 218 psi |
| Seal Material | Metal |
| Series | VFS Series |
| Solenoid Electrical Entry | DIN Terminal |
| Solenoid Supply Frequency | 50/60 Hz |
| Solenoid Supply Voltage | 110-120V AC |
Shipping Info:
| Ship weight (kg) | 0.9 |
| Ship height (cm) | 5.08 |
| Ship length (cm) | 7.62 |
| Ship width (cm) | 5.08 |
Product Variants
| Product | Model | Voltage | Overall Height | Overall Width | Actuation | Mounting Orientation | Driving Type | Application | Port Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
SF4-6H-20 | - | - | - | - | - | - | - | - | €39.13 | |
 |
MB2610-02-1 | - | - | - | - | - | - | - | - | €23.14 | |
|
MBF26-RP | - | - | - | - | - | - | - | - | €3.49 | |
 |
VFS2100-1FZ | 100V AC | - | - | Single | Manifold Base | 0.1 To 1 | Unit For Manifold Mounting | - | €94.37 | |
 |
VFS2100-1FZ-01 | 100V AC | - | - | Single | Manifold Base | 0.1 To 1 | Unit For Manifold Mounting | - | €104.81 | |
 |
VFS2100-2FZ | 110/120V AC | - | - | Single | Direct | 0.1 To 1 | Single Unit | 0.125 | €78.87 | |
 |
VFS2100-3F | 110/120V AC | - | - | Single | Direct | 0.1 To 1 | Single Unit | 0.25 | €83.78 |
