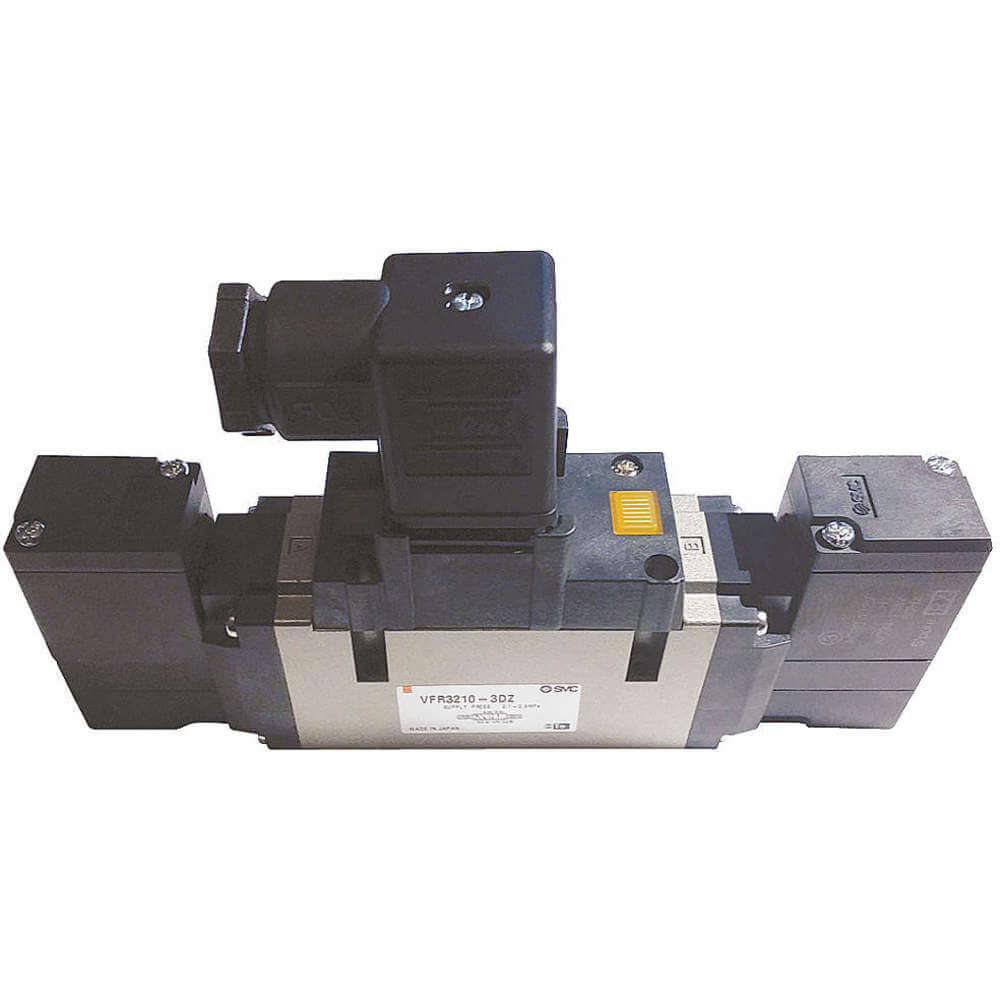

SMC VALVES VFR3210-3DZ Solenoid Air Control Valve 53.2 CFM
Item: AH6YMEModel: VFR3210-3DZCross Ref: 36LT90
7 In Stock
Ships within 2 days via
10.00% off
€326.55 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Solenoid Air Control Valve |
| Actuator Type | Double Solenoid |
| Ambient Temp. Range | +14°F to +122°F |
| Body Material | Aluminum |
| Body Style | Base Mounted |
| Center Position | Open |
| Cfm | 53.2 CFM |
| Coefficient Of Volume | 1.9 |
| Electrical Connection | Lead Wire |
| Electrical Connection Type | Terminal Block |
| Flow Rate - Maximum | 53.2 CFM |
| For Media | Air |
| Includes Solenoid Coil | Yes |
| Lubrication | Lubrication Not Required |
| Normally Open/normally Closed | Normally Open/Normally Closed |
| Number Of Ports | 5 |
| Number Of Positions | 2 |
| Number Of Ways | 5 |
| Operating Pressure - Maximum | 130 psi |
| Operating Pressure - Minimum | 29 psi |
| Operating Temperature - Maximum | 122°F |
| Operating Temperature - Minimum | 14°F |
| Overall Height | 3 21/32" |
| Overall Length | 6 11/16" |
| Overall Width | 1 31/32" |
| Override | Non-Locking Push |
| Override | Non-Locking |
| Pilot Port Connection Size | 1/2" |
| Pilot Pressure | 15 |
| Pilot Pressure | 15 psi |
| Pilot Type | Internal Pilot |
| Power Consumption | 2.1 W |
| Pressure | 15 psi to 135 psi |
| Pressure Rating | 15 psi to 135 psi |
| Product Type | Solenoid Air Control Valve |
| Response Time | 30 ms |
| Return Action | Spring Return |
| Seal Material | Rubber |
| Series | VFR3000 Series |
| Shifting Technology | Solenoid |
| Spool Material | Aluminum |
| Standards | Rohs Compliant |
| Valve Action | Normally Open/Normally Closed |
| Valve Type | Spool |
| Voltage | 110V AC |
Shipping Info:
| Ship weight (kg) | 0.56 |
| Ship height (cm) | 10.16 |
| Ship length (cm) | 20.32 |
| Ship width (cm) | 7.62 |
| Country of Origin | JP |
Product Variants
| Product | Model | Voltage | Body Style | Overall Length | Coefficient Of Volume | Overall Width | Overall Height | Pipe Size | Ambient Temp. Range | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
VQ1101-51 | 24V DC | Base Mounted | 5" | 0.21 | 1 1/2" | 1/2" | 1/8" | +14°F to +122°F | €118.66 | |
|
VQ1201-51 | 24V DC | Base Mounted | 5" | 0.21 | 2" | - | 3/8" | +14°F to +122°F | €206.06 | |
|
VQ2101-51 | 24V DC | Base Mounted | 5" | 0.55 | 1 1/2" | 3/4" | - | +14°F to +122°F | €155.53 | |
|
VQ2201-51 | 24V DC | Base Mounted | 5" | 0.55 | 2" | 3/4" | - | +14°F to +122°F | €207.93 | |
 |
SY3140-5LZ | 24V DC | Base Mounted | 2 3/32" | 0.3 | 1 1/2" | 3 1/32" | 1/8" | +14°F to +122°F | €99.03 | |
|
SY3240-5LZ | 24V DC | Base Mounted | 2 3/32" | 0.3 | 1 1/2" | 4 9/32" | - | +14°F to +122°F | €168.98 | |
 |
SY5140-5LZ | 24V DC | Base Mounted | 2" | 0.59 | 1 1/2" | 3 25/32" | 1/8" | +14°F to +122°F | €105.03 |
