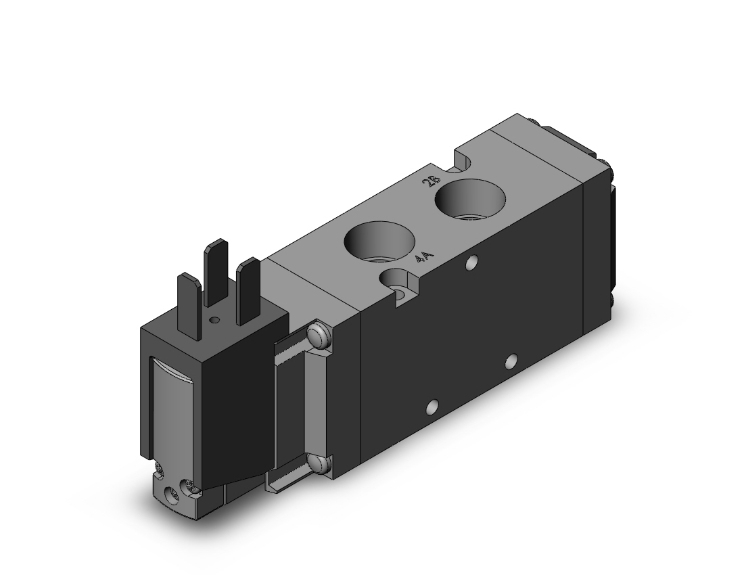

SMC VALVES VF5120-5YO1-03F Solenoid Valve, 3/8 Port Size
Get it by Tuesday, Sep 1
€108.90 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Solenoid Valve |
| Actuation | Piloted Solenoid |
| Body Material | Aluminum |
| Flow Coefficient/flow Factor | 2.4 (1 To 4/2 (P To A/B)) Cv, 2.9 (4/2 To 5/3 (A/B To Ea/Eb)) Cv |
| Flow Direction | 4-Way |
| Manual Operation Type | Non-Locking Push |
| Max. Operating Pressure | 101 psi |
| No. Of Port | 5 |
| No. Of Positions | 2 |
| No. Of Solenoids | 1 |
| Normal State | No |
| Operating Medium | Air |
| Operating Temp. | 14°F to 122°F |
| Overall Height | 85 mm |
| Overall Length | 149 mm |
| Overall Width | 32 mm |
| Piping Type | Body Ported (Side) |
| Port Sizes | 3/8" BSPP |
| Seal Material | Nitrile |
| Series | VF Series |
| Solenoid Electrical Entry | DIN Terminal |
| Solenoid Power Consumption | 1.5 W |
| Solenoid Supply Voltage | 24V DC |
| Valve Function | Spool |
Shipping Info:
| Ship weight (kg) | 0.9 |
| Ship height (cm) | 5.08 |
| Ship length (cm) | 7.62 |
| Ship width (cm) | 5.08 |
Product Variants
| Product | Model | Series | Port Size | Solenoid Supply Voltage | Max. Operating Pressure | Solenoid Power Consumption | No. Of Port | Overall Height | Overall Width | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
VF5120-5D1-02T | VF Series | - | 24V DC | 145 psi | 1.5 W | 5 | 85 mm | 32 mm | €117.75 | |
 |
VF5144-3DZE1-02T | - | - | - | - | - | - | - | - | €132.46 | |
 |
VF5344-5DO1 | - | - | - | - | - | - | - | - | €263.14 | |
 |
VF5120-3DZ1-03 | VF Series | - | 110-115V AC | 101 psi | 1.7 W | 5 | 85 mm | 32 mm | €125.81 | |
 |
VF5120-3D1-03 | VF Series | - | 110-115V AC | 145 psi | 1.55 W | 5 | 85 mm | 32 mm | €117.75 | |
 |
VF5120-5DZ1-03 | - | - | - | - | - | - | - | - | €125.81 | |
 |
VF5120-6DD1-02T | - | - | 12V DC | - | 1.5 W | 5 | 85 mm | 32 mm | €117.75 |
