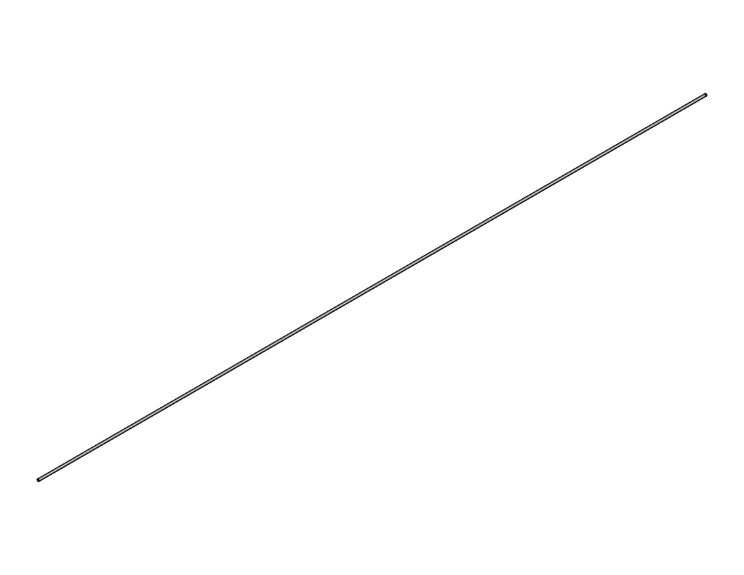

SMC VALVES TILM07N-33 Tubing, 1/4 Inch Size, Fluorine Tubing
€429.00 /unit
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Tubing |
| Color | Translucent |
| Compatible Fluid | Water, Air, Chemical |
| Fluid Type | Water, Air, Inert Gas |
| I.d. D | 1/4" |
| Inside Dia. Class | Class 7 |
| Length | 100 ft. |
| M | 20m |
| Material | Fluororesin |
| Max. Operating Pressure (mpa) | 1.5 MPa |
| Max. Operating Temp. | 500°F |
| Min. Bending Radius | 60 mm |
| No. Of Cable | 1 |
| Operating Environment | Standard, Heat Resistant, Chemical Resistance |
| Operating Pressure @ Room Temp | 247 psi |
| Operating Temp. | 1.7 (at 20°C) |
| Outside Dia. Class | Class 10 |
| Outside Dia. D | 3/8" |
| Recommended Radius | 35 mm |
| Tube Close Bend Radius | 20 mm |
| Tube Inside Dia. | 0.156" |
| Tube Inside Dia. D | 6.33 mm |
| Tube Outside Dia. | 9.53 mm |
| Type | Straight |
| Typical Application | Inert Gas, General Purpose Air/Water, Heat Resistance |
Product Variants
| Product | Model | Color | Max. Operating Pressure (mpa) | Coil Winding Length (m) | Tube Outside Dia. | Outside Dia. D | Tube Inside Dia. D | Min. Bending Radius | M | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
TIL11-33 | - | 1 MPa | 100m | - | - | - | - | - | €620.40 | RFQ
|
 |
TIL07-33-X48 | - | - | - | - | - | - | - | - | €303.60 | RFQ
|
|
TIL01-16-X48 | - | - | - | - | - | - | - | - | €125.40 | RFQ
|
|
TIL11-16-X48 | - | - | - | - | - | - | - | - | €264.00 | RFQ
|
|
TIL01-33-X48 | - | - | - | - | - | - | - | - | €250.80 | RFQ
|
 |
TIL07-20 | - | 1 MPa | 50m | - | - | - | - | - | €326.30 | RFQ
|
|
TIL13-33-X48 | - | - | - | - | - | - | - | - | €699.60 | RFQ
|
