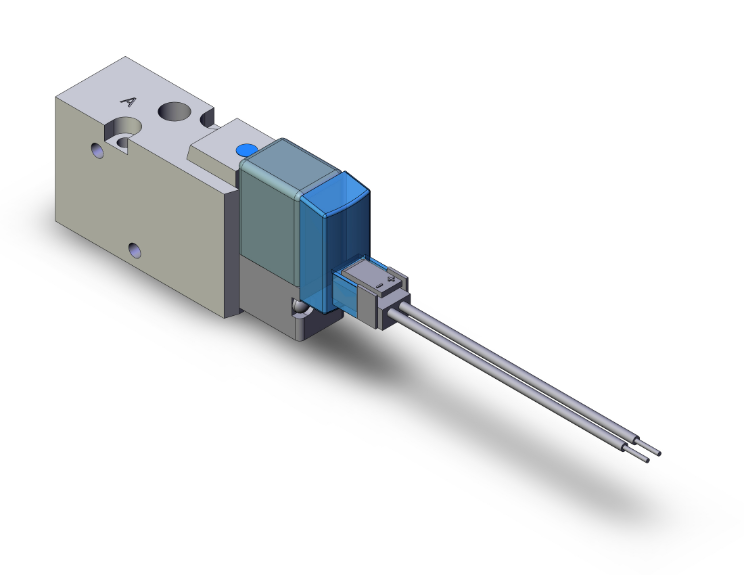

SMC VALVES SYJ512-5LZ-M5 Solenoid Valve, 3 Port Size
Item: AN9EKPModel: SYJ512-5LZ-M5
7 In Stock
Ships within 2 days via
€73.49 /unit
This product can only be shipped in multiples of 2Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Solenoid Valve |
| Actuation | Single |
| Application | Single Unit |
| Body Option | Individual Pilot Valve Exhaust Type |
| Bracket | With Bracket |
| Driving Type | Show More |
| Flow Coefficient | 0.14 |
| Indicator Light/surge Voltage Suppressor | With Indicator Light, Surge Voltage Suppressor |
| Lead Wire Electrical Entry | L Plug Connector With Lead Wire, Lead Wire Length 300 Mm |
| Manual Operation Type | Non-Locking Push |
| Manual Switch | Lock |
| Max. Operating Pressure | 101 psi |
| Mounting Orientation | Direct |
| No. Of Port | 3 |
| No. Of Positions | 2 |
| No. Of Solenoids | 1 |
| Normal State | NC |
| Operating Medium | Air |
| Operating Temp. | 14°F to 122°F |
| Pipe Port Type | M |
| Piping Type | Body Ported |
| Plumbing | Direct Plumbing |
| Port Size | M5 |
| Pressure Rating (mpa) | 0.15 MPa to 0.7 MPa |
| Seal Material | Rubber |
| Solenoid Electrical Entry | L Plug |
| Type | Solenoid Valve |
| Valve Positions | 2 Position Normally Closed |
Shipping Info:
| Ship weight (kg) | 0.9 |
| Ship height (cm) | 5.08 |
| Ship length (cm) | 7.62 |
| Ship width (cm) | 5.08 |
Product Variants
| Product | Model | Overall Height | Voltage | Port Size | Type | Driving Type | Actuation | Operating Temp. | Max. Operating Pressure | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
SYJ512-5G-M5 | 57.8 mm | - | M5 | Solenoid Valve | Show More | Single | 14°F to 122°F | 101 psi | €73.49 | |
 |
SYJ512-5MZ-M5 | 46.2 mm | - | M5 | Solenoid Valve | Show More | Single | 14°F to 122°F | 101 psi | €73.49 | |
 |
SYJ512-5MZ-M5-F | - | 24V DC | M5 | Solenoid Valve | Show More | Single | - | - | €59.90 | |
 |
SYJ512M-5LOZ-M5-F | - | - | - | - | - | - | - | - | €59.17 | |
 |
SYJ514-5LOZ-01T | - | - | 1/8 Port With Sub-Plate | - | - | - | - | - | €66.29 | |
 |
SYJ514-5LZ-01T | - | - | 1/8 Port With Sub-Plate | - | - | - | - | - | €67.01 | |
 |
SYJ514-5MZ | - | - | Without Sub-Plate | - | - | - | - | - | €56.56 |
