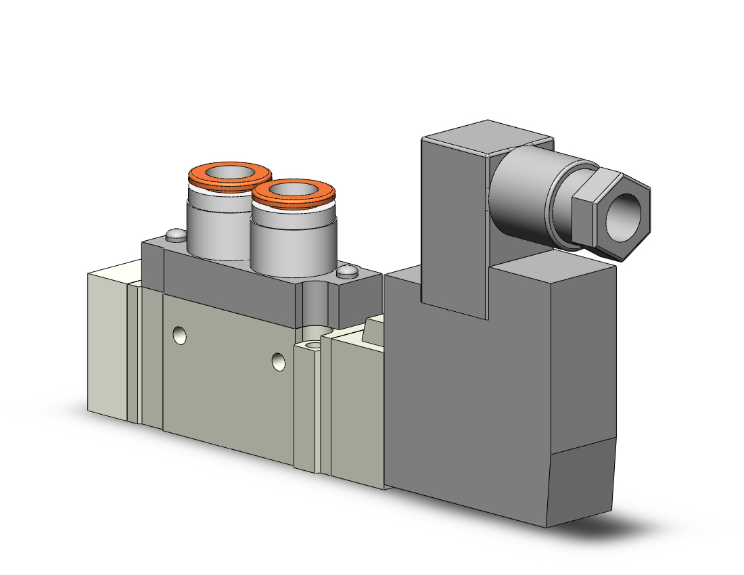

SMC VALVES SY5120-5DZ-C8 Valve, 1/4 Inch Built In Fitting
Item: AL3VBAModel: SY5120-5DZ-C8
7 In Stock
Ships within 2 days via
€104.96 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Solenoid Valve |
| Actuation | Piloted Solenoid |
| Body Material | Aluminum |
| Bracket Type | Without Bracket |
| Flow Direction | 4-Way |
| Manual Operation Type | Non-Locking Push |
| Max. Operating Pressure | 145 psi |
| No. Of Port | 5 |
| No. Of Positions | 2 |
| No. Of Solenoids | 1 |
| Operating Medium | Air |
| Operating Temp. | 14°F to 122°F |
| Overall Height | 45.3 mm |
| Overall Length | 114.9 mm |
| Overall Width | 15.8 mm |
| Piping Type | Body Ported |
| Port Sizes | 8 Mm Push-To-Connect |
| Seal Material | Rubber |
| Series | SY Series |
| Solenoid Electrical Entry | DIN Terminal |
| Solenoid Power Consumption | 0.35 W |
| Thread Standard | RC |
| Valve Function | Spool |
| Valve Series | SY5000 Series |
| Voltage Suppressor | With Light, Surge Voltage Suppressor |
Shipping Info:
| Ship weight (kg) | 0.9 |
| Ship height (cm) | 5.08 |
| Ship length (cm) | 7.62 |
| Ship width (cm) | 5.08 |
Product Variants
| Product | Model | Overall Height | Overall Width | Voltage | Series | Port Size | Actuation | Operating Temp. | No. Of Solenoids | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
SY5140-3LOZ | 57.6 mm | 35 mm | - | - | - | Piloted Solenoid | 14°F to 122°F | 1 | €88.20 | |
 |
SY5140-5DZD | - | - | - | SY5000 Series | Without Sub-Plate | - | - | - | €103.49 | |
 |
SY5140-3DZ | 83.4 mm | 35 mm | - | - | - | Piloted Solenoid | 14°F to 122°F | 1 | €97.83 | |
 |
SY5240-3DZ | - | - | - | SY5000 Series | Without Sub-Plate | - | - | - | €146.80 | |
 |
SY5240-5DZ | 83.4 mm | 35 mm | - | - | - | Piloted Solenoid | 14°F to 122°F | Double | €146.80 | |
 |
SY5340-3DZ | 83.4 mm | 35 mm | - | - | - | Piloted Solenoid | 14°F to 122°F | Double | €166.00 | |
 |
SY5340-5DZ | 83.4 mm | 35 mm | - | - | - | Piloted Solenoid | 14°F to 122°F | Double | €166.00 |
