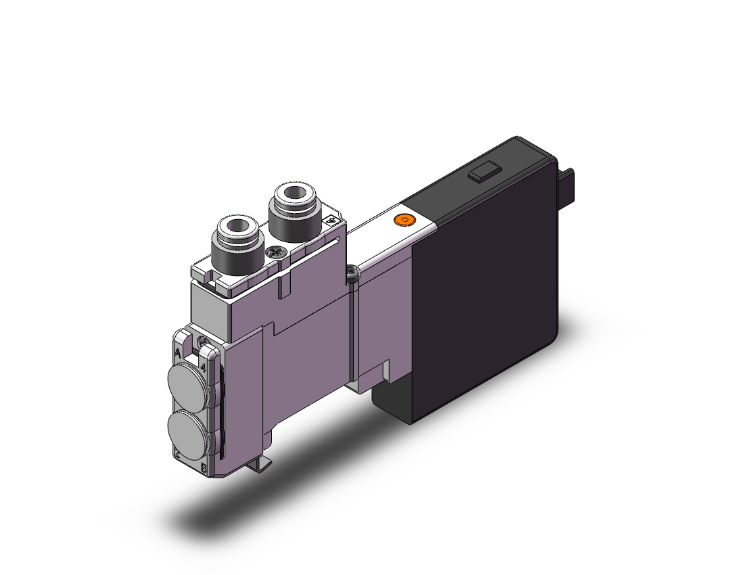

SMC VALVES SQ1141-5LO1-L4 Valve, 4 Way
Item: AN7VMDModel: SQ1141-5LO1-L4
7 In Stock
Ships within 2 days via
€90.03 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Valve |
| Actuation | Single |
| Applicable Cylinder Dia. | 40 Or Less |
| Application | Single Unit |
| Driving Type | 0.15 To 0.7 |
| Flow Coefficient | 0.19 |
| Lead Wire Electrical Entry | Plug Connector Type, Without Connector |
| Mounting Orientation | Direct |
| Pilot Air Supply | Internal |
| Pipe Port Type | One Touch Plumbing |
| Port Plug Mounting Port | 4(A) Ports |
| Pressure Rating (mpa) | 0.15 MPa to 0.7 MPa |
| Seal Type | Soft Seal |
| Type | Solenoid Valve |
| Valve Positions | 2 Position Exhaust |
| Voltage | 24V DC |
Shipping Info:
| Ship weight (kg) | 0.45 |
| Ship height (cm) | 5.08 |
| Ship length (cm) | 7.62 |
| Ship width (cm) | 5.08 |
Product Variants
| Product | Model | MPN | Price | |
|---|---|---|---|---|
 |
SQ1131-5-C6 | SQ1131-5-C6 | €72.10 | |
|
SQ1231D-5-C4 | SQ1231D-5-C4 | €94.75 | |
|
SQ1131N-5-C4-Q | SQ1131N-5-C4-Q | €80.56 | |
 |
SQ1130-51-C6 | SQ1130-51-C6 | €85.93 | |
 |
SQ1430-51-C6 | SQ1430-51-C6 | €120.26 | |
 |
SQ1131N-5B1-C6-Q | SQ1131N-5B1-C6-Q | €93.62 | |
 |
SQ1141-5L1-C4 | SQ1141-5L1-C4 | €79.86 |
