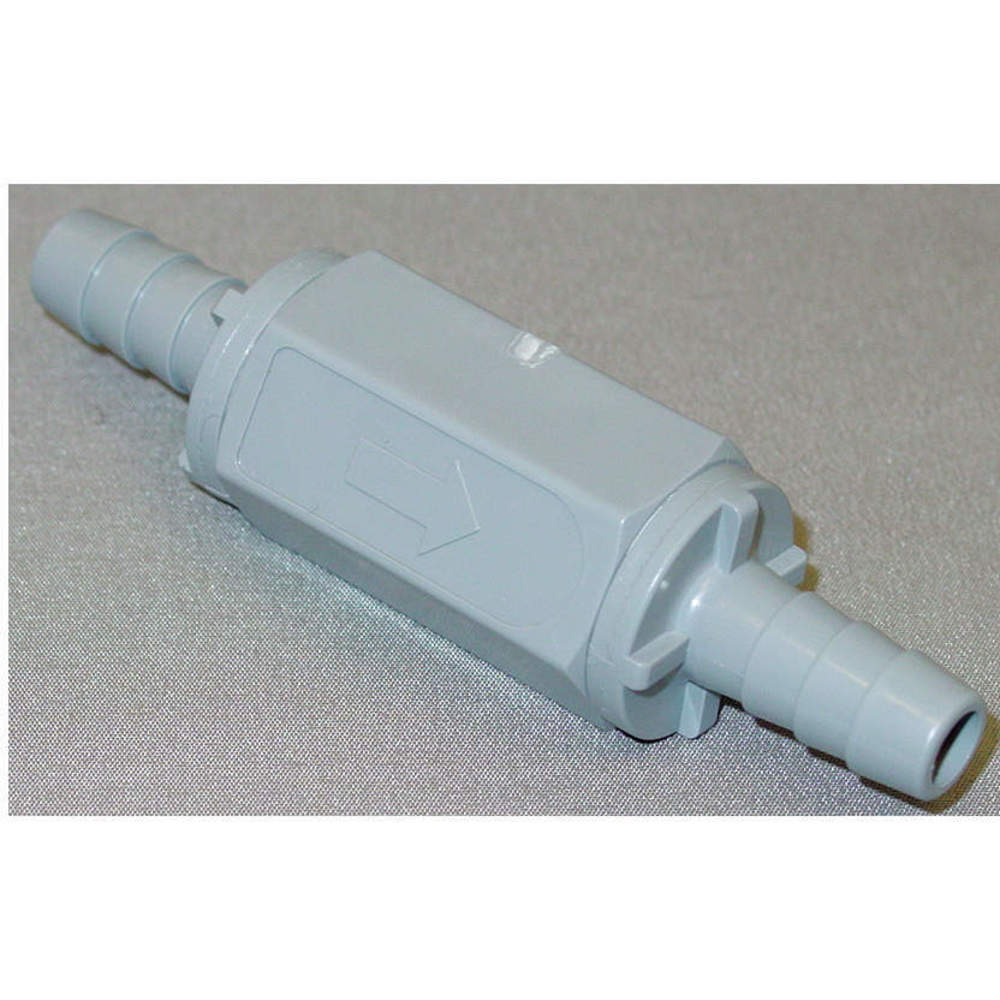

SMC VALVES PVC CHK 426-6B6B-B Ball Cone Spring Check Valve Grey Pvc
Item: AD7CJAModel: PVC CHK 426-6B6B-BCross Ref: 4DJA5
7 In Stock
Ships within 2 days via
5.00% off
€37.97 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Ball Cone Spring Check Valve |
| 3-a Certified | Not Rated |
| Ball Material | Stainless Steel |
| Body Material | PVC |
| Check Mechanism | Ball |
| Color | Gray |
| Connection Size-side 1 | 3/8" |
| Connection Size-side 2 | 3/8" |
| Connection Type | Barb x Barb |
| Connection Type-side 1 | Barb |
| Connection Type-side 2 | Barb |
| Cracking Pressure | 1 psi |
| For Media | Chemicals |
| Hex Size | 1" |
| Length | 3.531" |
| Material | PVC |
| Max. Operating Temp. | 140°F |
| Max. Pressure (cwp) | 125 psi |
| Max. Pressure-steam | Not Rated |
| Max. Temp. | 140°F |
| Max. Water Pressure | 125 psi |
| Media Temp. | -20°F to +140°F |
| Min. Operating Temp. | -20°F |
| Mounting Orientation | Horizontal, Vertical |
| Mounting Position | Horizontal, Vertical |
| Overall Height | 1" |
| Overall Length | 3.53" |
| Pipe Size | 3/8" |
| Seal Material | Buna N |
| Seat Material | PVC |
| Silent Check | Standard |
| Size | 3/8" |
| Spring Material | Hastelloy |
| Vacuum Service Rating | Not Rated |
| Valve Body Style | Inline |
| Valve Series | 426 |
| Width | 1" |
Shipping Info:
| Ship weight (kg) | 0.04 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 12.7 |
| Ship width (cm) | 12.7 |
| HS code | 8481309000 |
| Country of Origin | US |
Product Variants
| Product | Model | Size | Seat Material | Spring Material | For Media | Connection Size-side 1 | Connection Type-side 1 | Connection Type-side 2 | Connection Size-side 2 | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
PVC CHK 426-2F2F-B | 1/8" | PVC | Hastelloy | Chemicals | 1/8" | NPT | NPT | 1/8" | €39.97 | |
|
PVC CHK 426-2F2F-F | 1/8" | Grey PVC | Stainless Steel | - | - | - | - | - | €39.44 | |
 |
PVC CHK 426-4M4M-B | 1/4" | PVC | Hastelloy | Chemicals | 1/4" | NPT | NPT | 1/4" | €39.97 | |
|
PVC CHK 426-4M4M-F | 1/4" | PVC | Hastelloy | Chemicals | 1/4" | NPT | NPT | 1/4" | €42.26 | |
 |
PVC CHK 426-4M4F-B | 1/4" | PVC | Hastelloy | Chemicals | 1/4" | NPT | NPT | 1/4" | €39.97 | |
|
PVC CHK 426-4M4F-F | 1/4" | PVC | Hastelloy | Chemicals | 1/4" | NPT | NPT | 1/4" | €42.26 | |
 |
PVC CHK 426-4F4M-B | 1/4" | Grey PVC | Stainless Steel | - | - | - | - | - | €39.97 |
