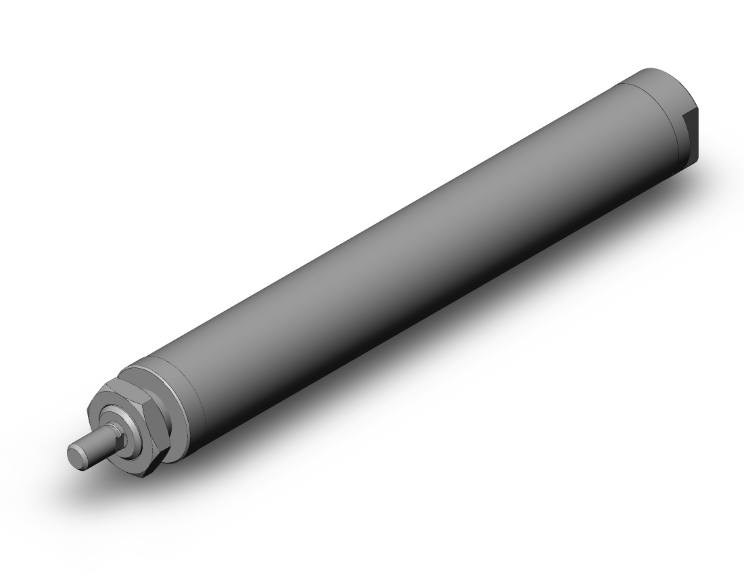

SMC VALVES NCMB106-0400S Round Body Cylinder, 1 1/16 Inch Size, Single Acting
Item: AL7CWHModel: NCMB106-0400S
7 In Stock
Ships within 2 days via
€44.43 /unit
This product can only be shipped in multiples of 2Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Round Body Cylinder |
| Bore Dia. | 1 1/16" |
| Cushion Type | Not Available |
| Cylinder Size | Standard |
| Operating Pressure | 25 psi to 250 psi |
| Operating Temp. | 40°F to 140°F |
| Overall Length | 8.3" |
| Overall Width | 1 3/25" |
| Piston Action | Single Acting Spring Return |
| Port Gender | Female |
| Port Thread Standard | NPT |
| Pull Force @ 100 Psi | 3 lbf. |
| Push Force @ 100 Psi | 85.2 lbf. |
| Rod Gender | Male |
| Rod Size/thread | 5/16"-24 Male UNF |
| Rod Thread Standard | UNF |
| Rod Type | Single Rod |
Shipping Info:
| Ship weight (kg) | 3.15 |
| Ship height (cm) | 7.62 |
| Ship length (cm) | 30.48 |
| Ship width (cm) | 7.62 |
Product Variants
| Product | Model | MPN | Price | |
|---|---|---|---|---|
 |
NCME125-0300 | NCME125-0300 | €72.14 | |
 |
NCME125-0400 | NCME125-0400 | €73.68 | |
 |
NCME125-0600 | NCME125-0600 | €81.07 | |
 |
NCME150-0100 | NCME150-0100 | €67.38 | |
 |
NCME150-0200 | NCME150-0200 | €73.98 | |
 |
NCME150-0300 | NCME150-0300 | €76.26 | |
 |
NCME150-0400 | NCME150-0400 | €83.16 |
