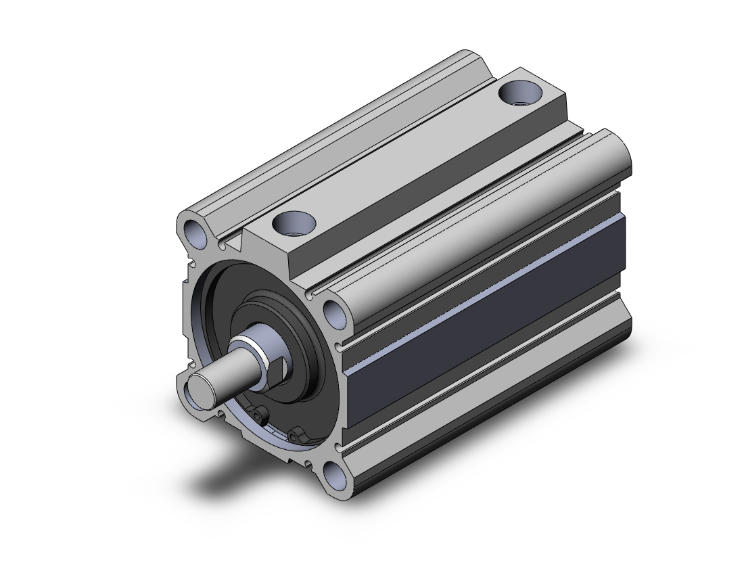

SMC VALVES NCDQ2A80-100DMZ Compact Cylinder, 80 mm Size, Double Acting Auto Switcher
Get it by Tuesday, Aug 25
€179.19 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Compact Cylinder |
| Bore Dia. | 80 mm |
| Compact Cylinder Type | Standard |
| Cushion Type | Not Available |
| Cylinder Series | NCQ2 Series |
| Included Options | Switch Ready, Magnetized |
| Max. Operating Pressure | 145 psi |
| Min. Operating Pressure | 7.25 psi |
| Mounting Type | Both Ends Tapped |
| Operating Temp. | 15°F to 140°F |
| Overall Height | 98 mm |
| Overall Length | 189 mm |
| Overall Width | 112.5 mm |
| Piston Action | Double Acting |
| Port Gender | Female |
| Port Thread Standard | NPT |
| Proof Pressure | 217 psi |
| Pull Force @ 100 Psi | 703 lbf. |
| Push Force @ 100 Psi | 779 lbf. |
| Rod Gender | Male |
| Rod Size | 5/8 18" |
| Rod Size/thread | 5/8"-18 Male UNF |
| Rod Thread Standard | UNF |
| Rod Type | Single Rod |
| Stroke | 100 mm |
Shipping Info:
| Ship weight (kg) | 3.15 |
| Ship height (cm) | 7.62 |
| Ship length (cm) | 30.48 |
| Ship width (cm) | 7.62 |
