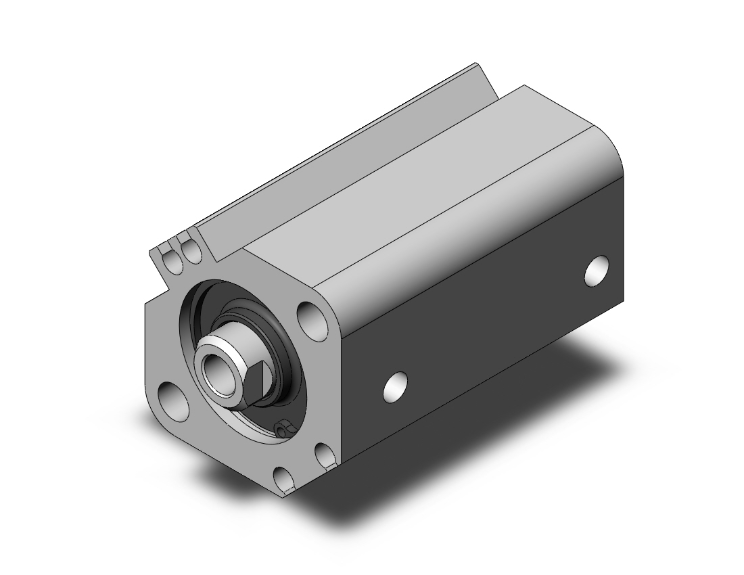

SMC VALVES NCDQ2A25-25DZ Compact Cylinder, 25 mm Size, Double Acting Auto Switcher
Item: AN6FRVModel: NCDQ2A25-25DZ
7 In Stock
Ships within 2 days via
€42.29 /unit
This product can only be shipped in multiples of 2Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Compact Cylinder |
| Compact Cylinder Type | Standard |
| Cushion Type | Not Available |
| Cylinder Series | NCQ2 Series |
| Included Options | Switch Ready, Magnetized |
| Max. Operating Pressure | 145 psi |
| Min. Operating Pressure | 7.25 psi |
| Mounting Type | Both Ends Tapped |
| Operating Temp. | 15°F to 140°F |
| Overall Height | 53.5 mm |
| Overall Length | 62.5 mm |
| Overall Width | 52 mm |
| Piston Action | Double Acting |
| Port Size | M5 x 0.8 |
| Port Thread Standard | ISO |
| Proof Pressure | 217 psi |
| Pull Force @ 100 Psi | 58.5 lbf. |
| Push Force @ 100 Psi | 76 lbf. |
| Rod Size | 1/4 28" |
| Rod Size/thread | 1/4"-28 Female UNF |
| Rod Thread Standard | UNF |
| Rod Type | Single Rod |
Shipping Info:
| Ship weight (kg) | 3.15 |
| Ship height (cm) | 7.62 |
| Ship length (cm) | 30.48 |
| Ship width (cm) | 7.62 |
Product Variants
| Product | Model | Type | Price | |
|---|---|---|---|---|
 |
NCDQ2A32-15DMZ | - | €67.25 | |
 |
NCQ2A63-75DZ | - | €114.71 | |
 |
NCQ2A32-40DZ | - | €56.10 | |
 |
NCQ2A50-50DZ | - | €72.27 | |
 |
NCQ2KB40-50DZ | - | €91.60 | |
 |
NCQ2L50-50DMZ | - | €109.76 | |
 |
NCQ2A50-10DZ | - | €80.46 |
