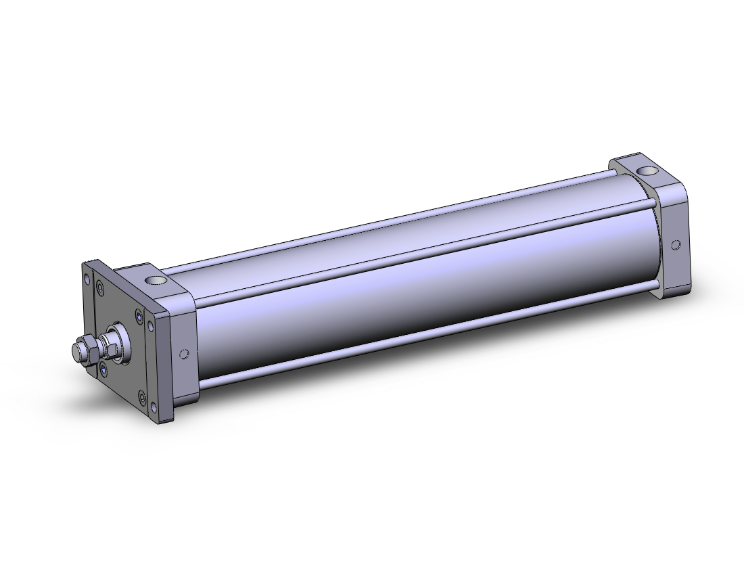

SMC VALVES NCA1F400-1800 Tie Rod Cylinder, 4 Inch Size, Double Acting
Get it by Wednesday, Aug 26
€520.82 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Tie Rod Cylinder |
| Bore Dia. | 4" |
| Clevis Mount Detachable Mp2 | NCA1-D400 |
| Clevis Mount Fixed Mp1 | NCA1-X400 |
| Cushion Type | Cushion Both Ends |
| Cylinder Type | NFPA |
| Eye Mount-mp4 (plain) | NCA1-C400 |
| Flange Mount-mf1/mf2 | NCA1-F400 |
| Foot Mounts Ms1 | NCA1-L400 |
| Foot Mounts Ms2 | NCA1-S400 |
| Jam Nut | JM-10 |
| Max. Operating Pressure | 250 psi |
| Min. Operating Pressure | 8 psi |
| Mounting Type | Flange (Rod), MF1 |
| No. Of Switches | 2 |
| Operating Pressure | 8 psi to 250 psi |
| Operating Temp. | 40°F to 140°F |
| Overall Height | 4 1/2" |
| Overall Width | 6 1/4" |
| Piston Action | Double Acting |
| Port Gender | Female |
| Port Size | 0.5 NPT |
| Port Thread Standard | NPT |
| Pull Force @ 100 Psi | 79 lbf. |
| Push Force @ 100 Psi | 1257 lbs. |
| Rod Clevis | NY-325 |
| Rod Gender | Male |
| Rod Size | 1" |
| Rod Thread Standard | UNF |
| Rod Type | Single Rod |
| Seal Kit | NC1A400PS |
| Series | NCA1 Series |
| Stroke | 18" |
Shipping Info:
| Ship weight (kg) | 3.15 |
| Ship height (cm) | 7.62 |
| Ship length (cm) | 30.48 |
| Ship width (cm) | 7.62 |
