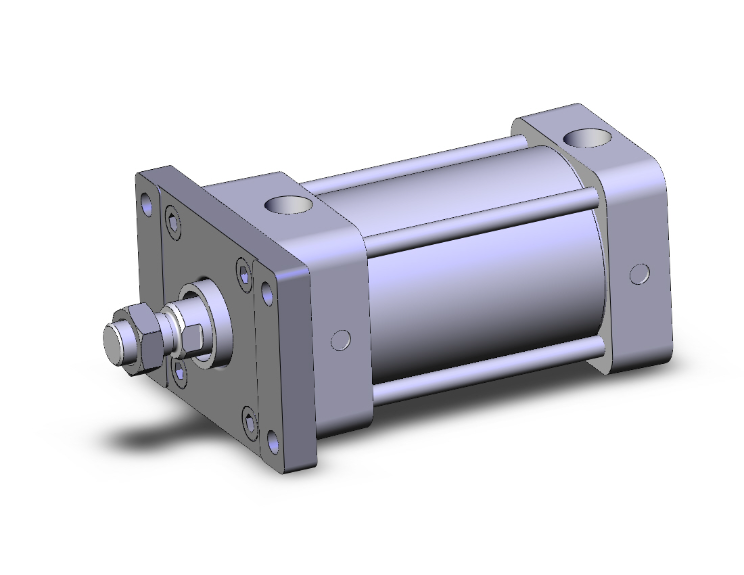

SMC VALVES NCA1F325-0300 Tie Rod Cylinder, 3.25 Inch Size, Double Acting
Get it by Friday, Aug 21
€356.24 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Tie Rod Cylinder |
| Bore Dia. | 3 1/4" |
| Clevis Mount Detachable Mp2 | NCA1-D325 |
| Clevis Mount Fixed Mp1 | NCA1-X325 |
| Cushion Type | Cushion Both Ends |
| Cylinder Type | NFPA |
| Eye Mount-mp4 (plain) | NCA1-C325 |
| Flange Mount-mf1/mf2 | NCA1-F325 |
| Foot Mounts Ms1 | NCA1-L325 |
| Foot Mounts Ms2 | NCA1-S325 |
| Jam Nut | JM-10 |
| Max. Operating Pressure | 250 psi |
| Min. Operating Pressure | 8 psi |
| Mounting Type | Flange (Rod), MF1 |
| No. Of Switches | 2 |
| Operating Pressure | 8 psi to 250 psi |
| Operating Temp. | 40°F to 140°F |
| Overall Height | 3 3/4" |
| Overall Width | 5 1/2" |
| Piston Action | Double Acting |
| Port Gender | Female |
| Port Size | 0.5 NPT |
| Port Thread Standard | NPT |
| Pull Force @ 100 Psi | 79 lbf. |
| Push Force @ 100 Psi | 830 lbs. |
| Rod Clevis | NY-325 |
| Rod Gender | Male |
| Rod Size | 1" |
| Rod Thread Standard | UNF |
| Rod Type | Single Rod |
| Seal Kit | NC1A325PS |
| Series | NCA1 Series |
| Stroke | 3" |
Shipping Info:
| Ship weight (kg) | 3.15 |
| Ship height (cm) | 7.62 |
| Ship length (cm) | 30.48 |
| Ship width (cm) | 7.62 |
Product Variants
| Product | Model | MPN | Price | |
|---|---|---|---|---|
 |
NCA1D400-1000 | NCA1D400-1000 | €445.42 | |
 |
NCDA1G200-0400 | NCDA1G200-0400 | €228.73 | |
 |
NCA1B150-0300-XA22M | NCA1B150-0300-XA22M | €117.09 | |
|
NCA1B150-0500-XA22M | NCA1B150-0500-XA22M | €123.82 | |
|
NCA1B150-0800-XA22M | NCA1B150-0800-XA22M | €133.92 | |
|
NCA1B200-0200-XA22M | NCA1B200-0200-XA22M | €123.03 | |
|
NCA1B250-0400-XA22M | NCA1B250-0400-XA22M | €156.02 |
