SMC VALVES KQG2L06-01S Male Elbow Thread 1/8 Inch Tube 6mm
Item: AA8NMWModel: KQG2L06-01SCross Ref: 19F743
7 In Stock
Ships within 2 days via
5.00% off
€67.15 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Male Elbow, 90 Degrees |
| Application | Air, Non-Potable Water, Steam |
| Basic Material | Metal |
| Body Material | Stainless Steel |
| Color | Silver |
| Compatible Tube Material | Fep, Nylon, Pfa, Polyolefin, Polyurethane, Soft Nylon |
| Connection Type | RPT x Tube |
| Fitting Material | Stainless Steel |
| Fitting Side A Connection Type | Push-To-Connect |
| Fitting Side A Tube Outside Dia. | 6 mm |
| Fitting Side B Connection Type | MBSPT |
| Fitting Side B Pipe Size | 1/8" |
| Grade | Grade 316 |
| Hex Size | 10 mm |
| Included Pre-applied Thread Sealant | Yes |
| Material | Steel |
| Material Grade | Grade 316 |
| Max. Operating Pressure | 145 psi |
| Max. Operating Temp. | 302°F |
| Max. Pressure | 435 psi |
| Min. Operating Temp. | 41°F |
| Overall Length | 16.40625 mm |
| Pipe Size | 1/8" |
| Release Type | Button |
| Resistance Properties | Corrosion Resistant |
| Specific Fitting Angle | 90° |
| Specific Fitting Shape | Elbow Adapter |
| System Of Measurement | Imperial, Metric |
| Temp. | +23°F to +302°F |
| Tube Size | 6 mm |
Shipping Info:
| Ship height (cm) | 0.76 |
| Ship length (cm) | 5.08 |
| Ship width (cm) | 3.81 |
| HS code | 7307290090 |
| Country of Origin | JP |
Product Variants
| Model | Color | Fitting Side B Connection Type | Hex Size | Tube Size | Fitting Side A Tube Outside Dia. | Fitting Side B Pipe Size | Max. Operating Pressure | Fitting Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|

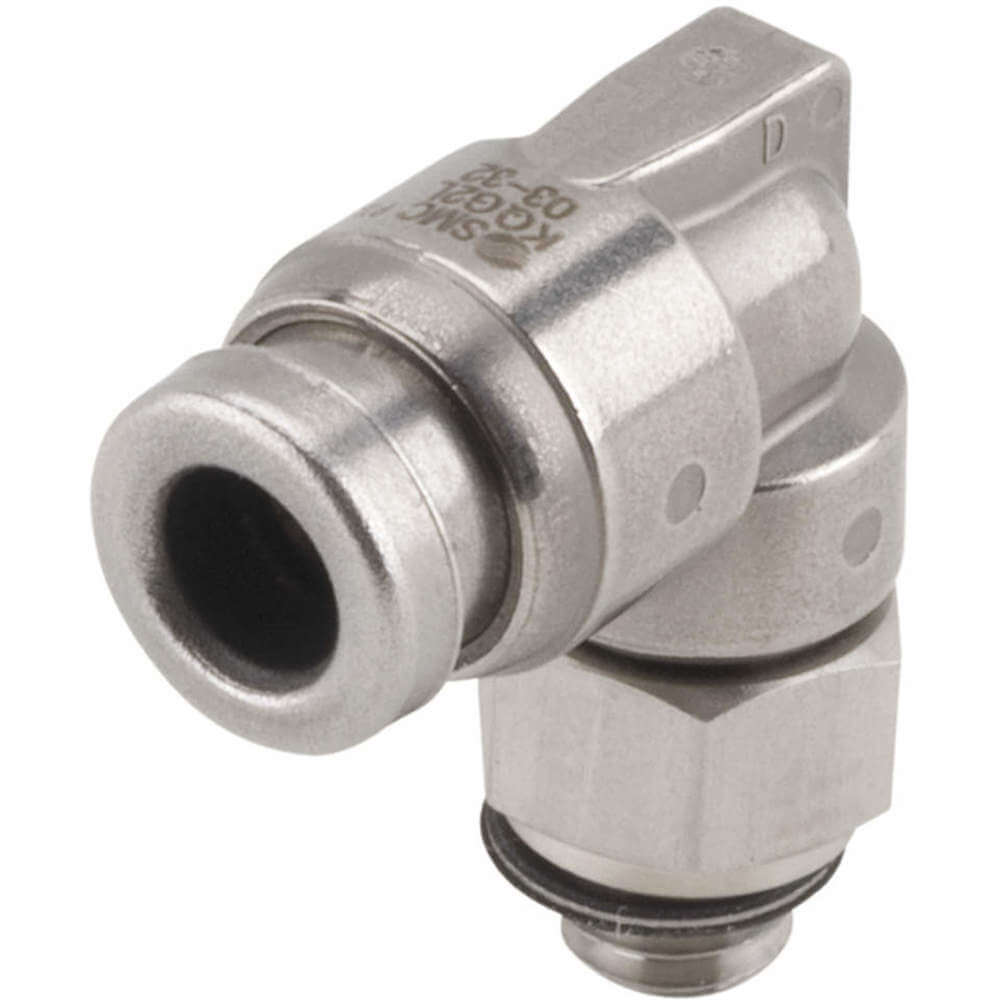

| KQG2L03-32 | Silver | Munf | - | 5/32" | 5/32" | - | 145 psi | Stainless Steel | €50.72 | |

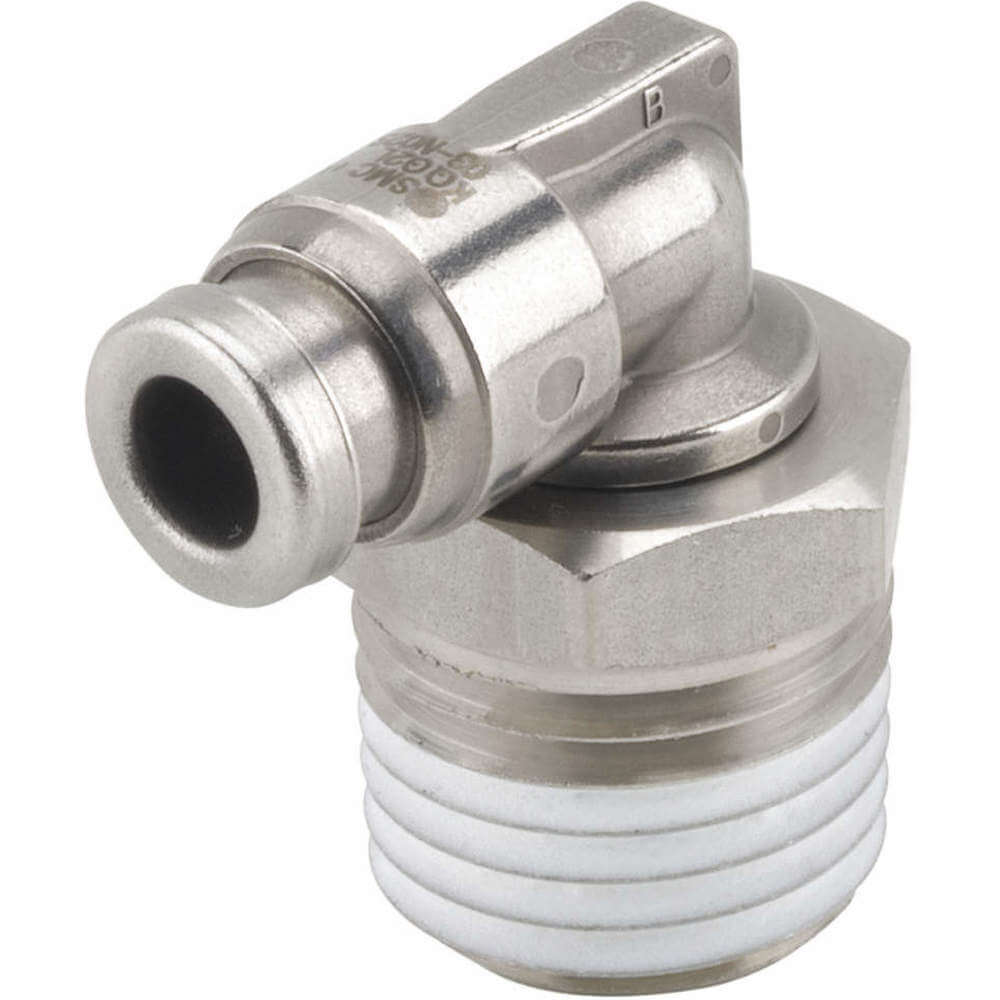

| KQG2L03-N01S | Silver | MNPT | 12 mm | 5/32" | 5/32" | 1/8" | 145 psi | Stainless Steel | €53.12 | |
| KQG2L03-N02S | Silver | MNPT | 14 mm | 5/32" | 5/32" | 1/4" | 145 psi | Stainless Steel | €52.31 | |
| KQG2L04-M5 | Silver | Male Metric | 8 mm | 5/32" | 4 mm | 5 mm | 145 psi | Stainless Steel | €55.99 | |
| KQG2L06-02S | Silver | MBSPT | 14 mm | 6 mm | 6 mm | 1/4" | 145 psi | Stainless Steel | €76.88 | |
| KQG2L06-M5 | Silver | Male Metric | 8 mm | 6 mm | 6 mm | 5 mm | 145 psi | Stainless Steel | €65.20 | |
| KQG2L07-32 | Silver | Munf | 8 mm | 1/4" | 1/4" | - | 145 psi | Stainless Steel | €53.80 |
