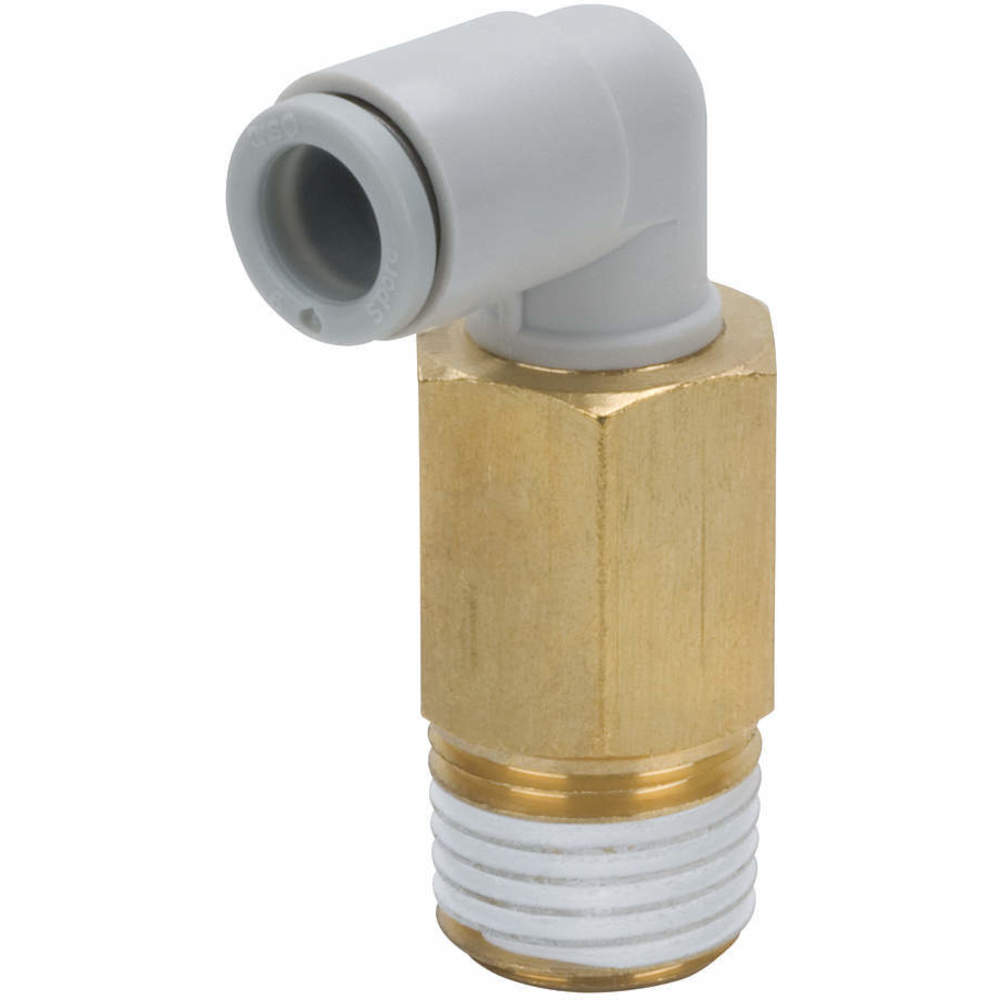

SMC VALVES KQ2W10-04AS Extended Male Elbow 10mm Thread x Tube
Item: AC7ADCModel: KQ2W10-04ASCross Ref: 36X238
7 In Stock
Ships within 2 days via
10.00% off
€14.12 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Extended Male Elbow 90 Deg |
| Application | Air, Non-Potable Water |
| Basic Material | Plastic |
| Body Material | Polybutylene Terephthalate |
| Color | White |
| Compatible Tube Material | FEP, Nylon, PFA, Polyurethane, Soft Nylon |
| Connection Type | Tube x Male BSPT |
| Fitting Material | Brass |
| Fitting Side A Connection Type | Push-To-Connect |
| Fitting Side A Tube Outer Diameter | 10 mm |
| Fitting Side B Connection Type | MBSPT |
| Fitting Side B Pipe Size | 1/2" |
| Hex Size | 22 mm |
| Includes Pre-applied Thread Sealant | Yes |
| Maximum Operating Pressure | 145 psi |
| Maximum Operating Temperature | 140°F |
| Minimum Operating Temperature | 41°F |
| Overall Length | 52.5 mm |
| Pipe Size | 1/2" |
| Release Type | Button |
| Specific Fitting Shape | 90° Extended Elbow Adapter |
| System Of Measurement | Imperial/Metric |
| Temp. Range | +23°F to +140°F |
| Tube Size | 10 mm |
Shipping Info:
| Ship weight (kg) | 0.09 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 6.35 |
| Ship width (cm) | 3.81 |
| HS code | 3917400090 |
| Country of Origin | SG |
Product Variants
| Model | Color | Connection Type | Hex Size | Fitting Side B Connection Type | Overall Length | Fitting Side B Pipe Size | Fitting Side A Tube Outer Diameter | Tube Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| KQ2W01-34AS | White | Tube x MNPT | 0.438" | MNPT | 30.3125 mm | 1/8" | 1/8" | 1/8" | €9.50 | |
| KQ2W01-35AS | White | Tube x MNPT | 0.562" | MNPT | 32.6875 mm | 1/4" | 1/8" | 1/8" | €7.99 | |
| KQ2W03-34AS | White | Tube x MNPT | 0.438" | MNPT | 29.90625 mm | 1/8" | 5/32" | 0.156" | €9.14 | |
| KQ2W03-35AS | White | Tube x MNPT | 0.562" | MNPT | 33.1875 mm | 1/4" | 5/32" | 0.156" | €8.62 | |
| KQ2W05-34AS | White | Tube x MNPT | 0.438" | MNPT | 30.40625 mm | 1/8" | 3/16" | 0.188" | €7.88 | |
| KQ2W05-35AS | White | Tube x MNPT | 0.562" | MNPT | 33.6875 mm | 1/4" | 3/16" | 0.188" | €9.24 | |
| KQ2W07-34AS | White | Tube x MNPT | 0.438" | MNPT | 31.40625 mm | 1/8" | 1/4" | - | €9.05 |
