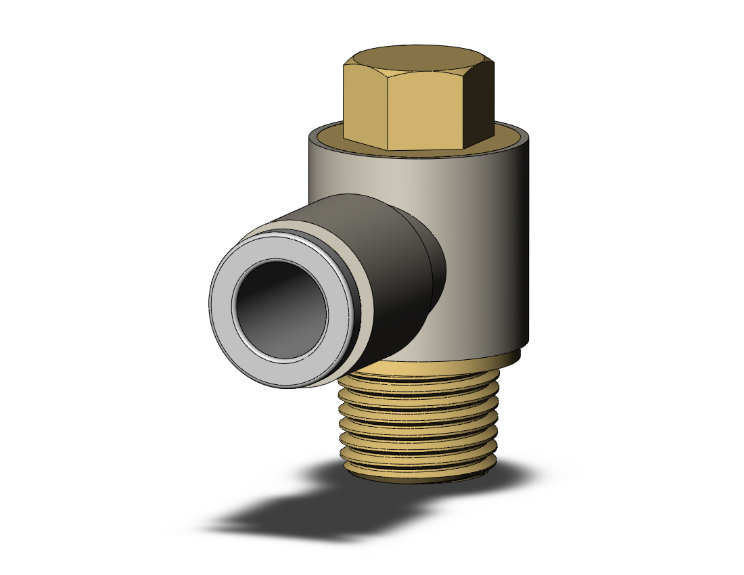

SMC VALVES KQ2V06-01AS Elbow, 6 mm Size
Item: AL3RNMModel: KQ2V06-01AS
7 In Stock
Ships within 2 days via
€4.93 /unit
This product can only be shipped in multiples of 17Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Elbow |
| Application | Standard, Mini |
| Body Material | Resin PBT, Brass |
| Color | White |
| Compatible Fluid | Water, Air |
| Compatible Tube Outside Dia. | 6 mm |
| Connection 2 Short Name | BSP |
| Connection Type | R |
| Fitting Connection Family | Push In To BSP |
| Fitting Shape | 90° Elbow |
| Min. Operating Temp. | -5°C, 0°C |
| No. Of Port | 2 |
| Operating Pressure | 100 kPa to 1 MPa |
| Overall Dia. | 13.4 mm |
| Overall Length | 24 mm |
| Release Button Color | Light Gray |
| Release Button Shape | Ellipse |
| Seal | With Sealant |
| Tube Size 1 | 6 |
| Type | Fitting One Touch, Screw |
Shipping Info:
| Ship weight (kg) | 0.45 |
| Ship height (cm) | 3.81 |
| Ship length (cm) | 7.62 |
| Ship width (cm) | 5.08 |
