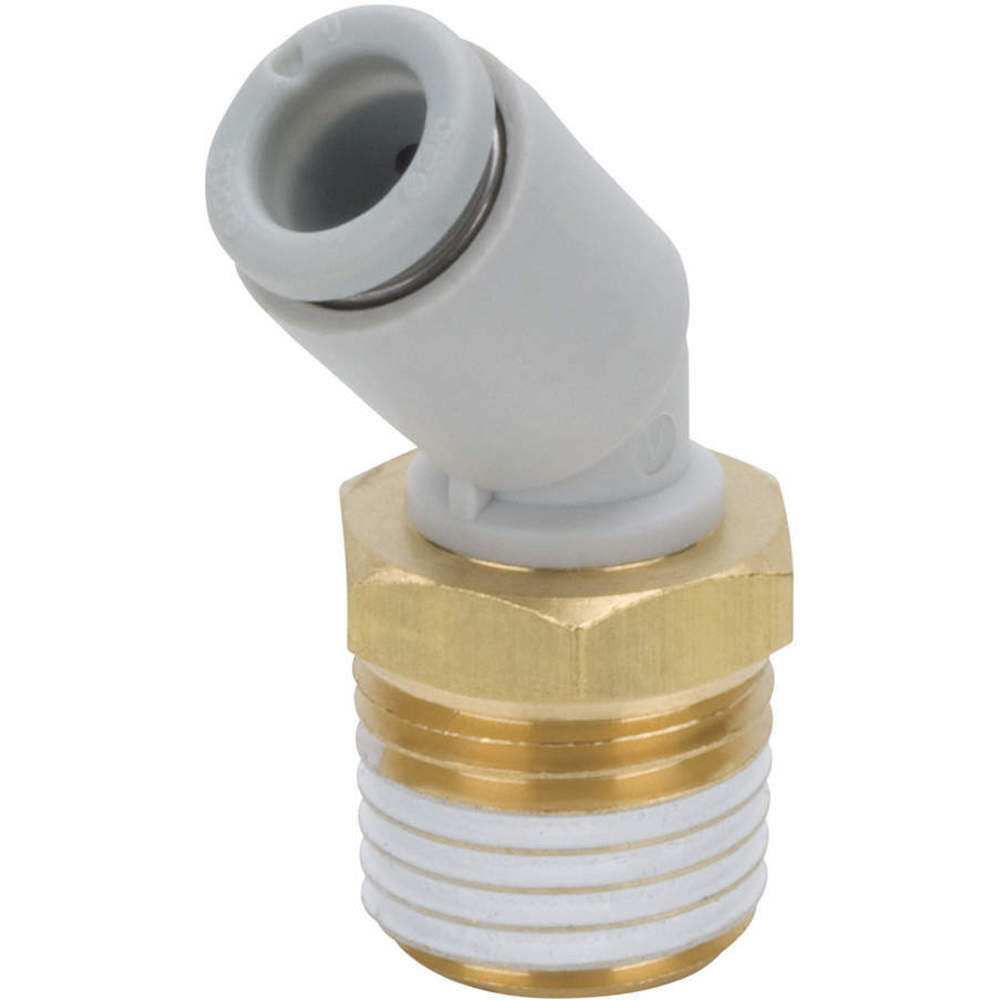

SMC VALVES KQ2K08-01AS Male Elbow 45 Degree 8mm Thread x Tube
Item: AC7AEPModel: KQ2K08-01ASCross Ref: 36X272
7 In Stock
Ships within 2 days via
5.00% off
€5.05 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Male Elbow, 45 Degrees |
| Application | Air, Non Potable Water |
| Basic Material | Plastic |
| Body Material | Polybutylene Terephthalate |
| Color | White |
| Compatible Tube Material | FEP, Nylon, PFA, Polyurethane, Soft Nylon |
| Connection Type | Tube x Male BSPT |
| Fitting Material | Brass |
| Fitting Side A Connection Type | Push-To-Connect |
| Fitting Side A Tube Outside Dia. | 8 mm |
| Fitting Side B Connection Type | MBSPT |
| Fitting Side B Pipe Size | 1/8" |
| Hex Size | 10 mm |
| Included Pre-applied Thread Sealant | Yes |
| Max. Operating Pressure | 145 psi |
| Max. Operating Temp. | 140°F |
| Max. Pressure | 145 psi |
| Min. Operating Temp. | 41°F |
| Overall Length | 16 mm |
| Pipe Size | 1/8" |
| Release Type | Button |
| Specific Fitting Angle | 45° |
| Specific Fitting Shape | Elbow Adapter |
| System Of Measurement | Imperial, Metric |
| Temp. | +23°F to +140°F |
| Tube Size | 8 mm |
Shipping Info:
| Ship weight (kg) | 0.12 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 15.24 |
| Ship width (cm) | 15.24 |
| HS code | 3917400090 |
| Country of Origin | SG |
Product Variants
| Model | Color | Fitting Side B Connection Type | Included Pre-applied Thread Sealant | Hex Size | Fitting Side A Tube Outside Dia. | Fitting Side B Pipe Size | Tube Size | Pipe Thread Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| KQ2K01-32A | White | Munf | No | 7 mm | 1/8" | - | - | - | €8.41 | |
| KQ2K01-34AS | White | MNPT | Yes | 0.438" | 1/8" | 1/8" | - | - | €7.49 | |
| KQ2K03-32A | White | Munf | No | 0.438" | 5/32" | - | 0.156" | - | €8.42 | |
| KQ2K03-34AS | White, Gray | - | - | 0.438" | - | - | - | - | €7.68 | |
| KQ2K05-34AS | White | MNPT | Yes | 0.438" | 3/16" | 1/8" | 1/4" | - | €7.95 | |
| KQ2K07-32A | White | Munf | No | 7 mm | 1/4" | - | 1/4" | - | €10.07 | |
| KQ2K07-34AS | White | MNPT | Yes | 0.438" | 1/4" | 1/8" | 1/4" | - | €7.46 |
