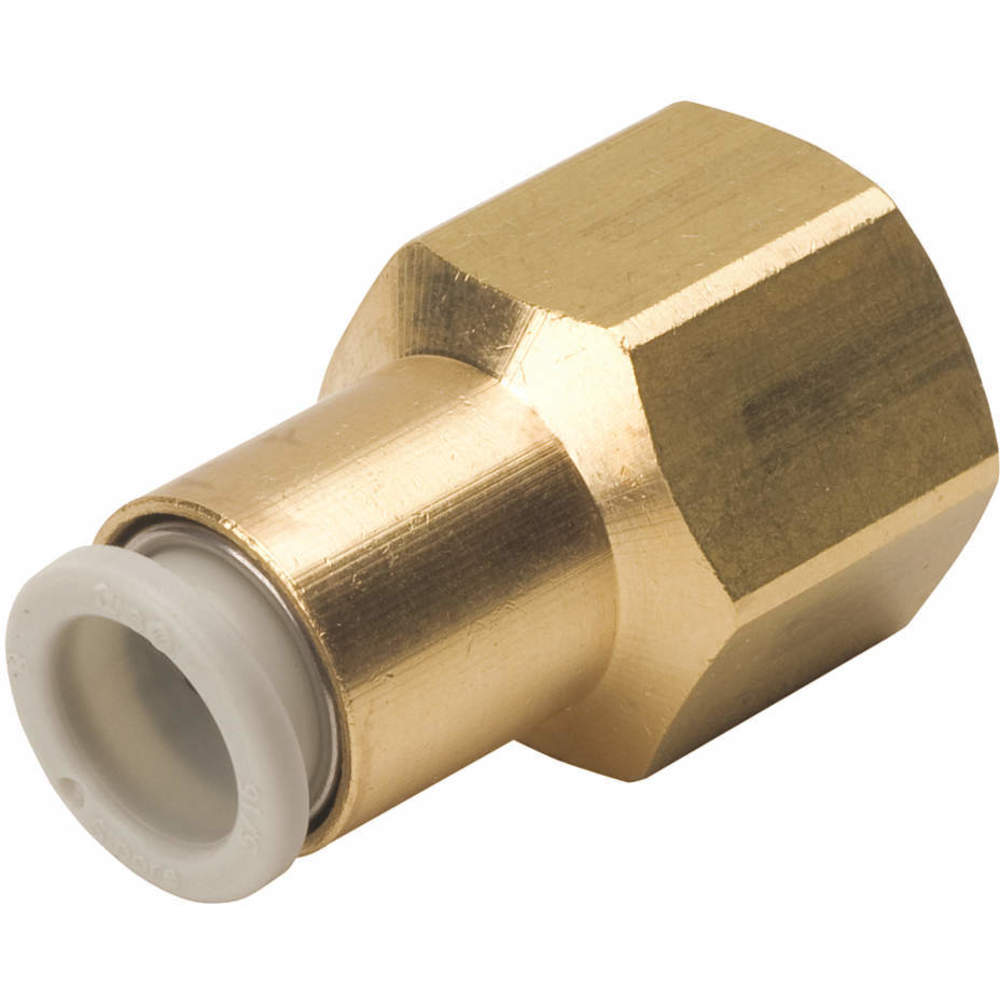

SMC VALVES KQ2F10-03A Female Connector 10mm Thread x Tube
Item: AC7AAFModel: KQ2F10-03ACross Ref: 36X171
7 In Stock
Ships within 2 days via
10.00% off
€7.13 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Female Adapter |
| Application | Air, Non-Potable Water |
| Basic Material | Plastic |
| Body Material | Polybutylene Terephthalate |
| Color | Gray, White |
| Compatible Tube Material | FEP, Nylon, PFA, Polyurethane, Soft Nylon |
| Connection Type | Tube x Female BSPT |
| Fitting Material | Brass |
| Fitting Side A Connection Type | Push-To-Connect |
| Fitting Side A Tube Outer Diameter | 10 mm |
| Fitting Side B Connection Type | FBSPT |
| Fitting Side B Pipe Size | 3/8" |
| Hex Size | 19 mm |
| Includes Pre-applied Thread Sealant | No |
| Max. Pressure | 145 psi |
| Maximum Operating Pressure | 145 psi |
| Maximum Operating Temperature | 140°F |
| Minimum Operating Temperature | 41°F |
| Overall Length | 31.3125 mm |
| Pipe Size | 3/8" |
| Release Type | Button |
| Specific Fitting Shape | Straight Adapter |
| System Of Measurement | Imperial/Metric |
| Temp. Range | +23°F to +140°F |
| Tube Size | 10 mm |
Shipping Info:
| Ship weight (kg) | 0.03 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 3.3 |
| Ship width (cm) | 2.54 |
| HS code | 3917400090 |
| Country of Origin | SG |
Product Variants
| Model | Color | Connection Type | Hex Size | Fitting Side B Connection Type | Overall Length | Fitting Side B Pipe Size | Fitting Side A Tube Outer Diameter | Tube Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| KQ2F01-34A | Brass | Tube x FNPT | 0.562" | FNPT | 25 mm | 1/8" | 1/8" | - | €6.60 | |
| KQ2F01-35A | Brass | Tube x FNPT | 0.688" | FNPT | 29.8125 mm | 1/4" | 1/8" | - | €8.84 | |
| KQ2F03-34A | Brass | Tube x FNPT | 0.562" | FNPT | 24.8125 mm | 1/8" | 5/32" | 0.156" | €6.38 | |
| KQ2F03-35A | White | Tube x FNPT | 0.688" | FNPT | 29.6875 mm | 1/4" | 5/32" | 0.156" | €7.98 | |
| KQ2F07-34A | White | Tube x FNPT | 0.562" | FNPT | 24.40625 mm | 1/8" | 1/4" | 1/4" | €5.91 | |
| KQ2F07-35A | White | Tube x FNPT | 0.688" | FNPT | 29.1875 mm | 1/4" | 1/4" | 1/4" | €7.03 | |
| KQ2F07-36A | Brass | Tube x FNPT | 7/8" | FNPT | 30.5 mm | 3/8" | 1/4" | 1/4" | €8.65 |
