SMC VALVES CY1L10H-100B Guided Cylinder, 10 mm Size, Double Acting Auto Switcher
Get it by Friday, Aug 21
€478.50 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Cylinder |
| Bore Dia. | 10 mm |
| Cylinder Inside Dia. | 10 |
| Cylinder Style | Magnetically Coupled |
| Environment | General Purpose |
| Guide | Ball Bushing Bearing |
| Guide Type | Ball Bushing Guide |
| Included Options | Magnetized |
| Max. Load | 3 Kg |
| Max. Operating Pressure | 102 psi |
| Min. Operating Pressure | 26 psi |
| Mounting Orientation | Vertical, Horizontal, Ceiling, Wall |
| Mounting Type | Basic |
| Operating Pressure | 26 psi to 102 psi |
| Operating Temp. | 14°F to 140°F |
| Overall Height | 34 mm |
| Overall Length | 249 mm |
| Piston Action | Double Acting |
| Port Gender | Female |
| Port Screw Type | M Screw |
| Port Size | M5 x 0.8 |
| Port Thread Standard | ISO |
| Proof Pressure | 150 psi |
| Rodless Cylinder Joint Type | Magnetic |
| Seal Kit | CY1L10-PS-N |
| Series | CY1 Series |
| Stroke | 125 mm |
| Table Material | Aluminum Alloy |
| Table Size Height H (mm) | 33 mm |
| Table Size Length L | 68 mm |
| Table Surface Treatment | Anodize Alumite |
| Type | Rodless Cylinder |
Shipping Info:
| Ship weight (kg) | 3.15 |
| Ship height (cm) | 7.62 |
| Ship length (cm) | 30.48 |
| Ship width (cm) | 7.62 |
Product Variants
| Product | Model | Type | Price | |
|---|---|---|---|---|
 |

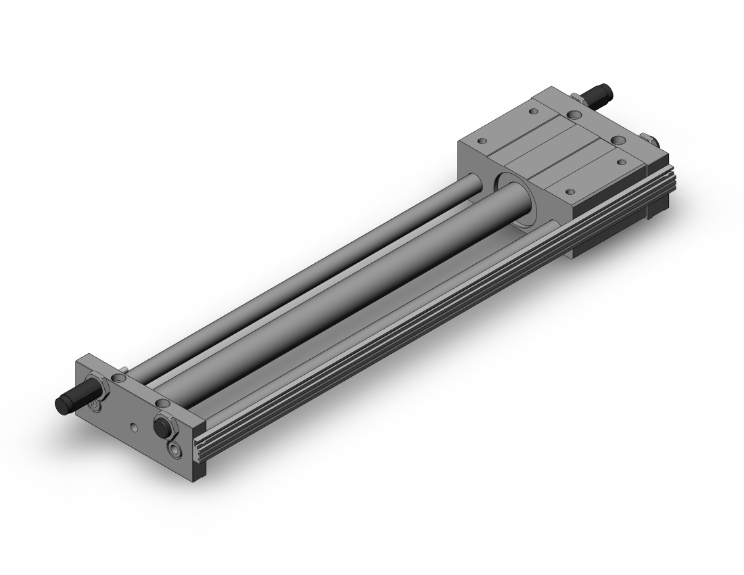

CY1L32H-500B | - | €1,443.02 | |
 |
CY1L15H-200B | - | €569.58 | |
 |
CY1L20H-800B-A73HL | - | €968.62 | |
 |

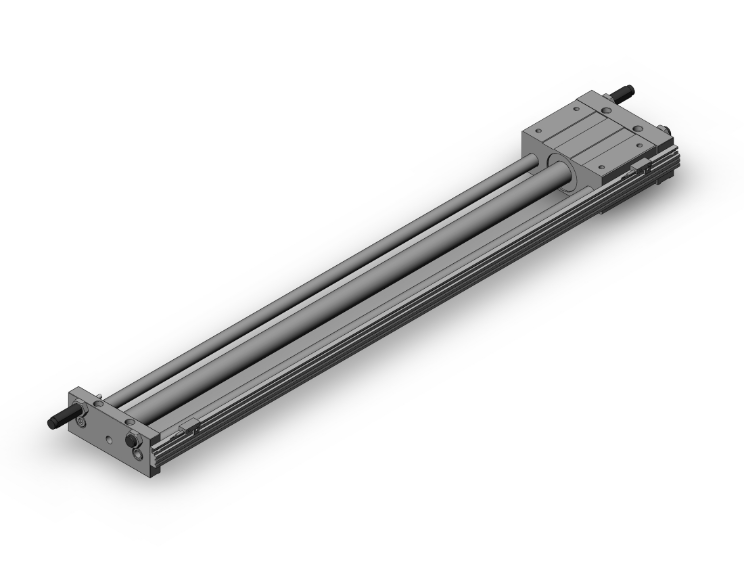

CY1L25H-700B-J79WL | - | €1,126.49 | |
 |
CY1L15H-250 | - | €516.78 | |
 |
CY1L25H-500B | - | €910.67 | |
 |
CY1L20H-600-F7BVL | - | €883.21 |
