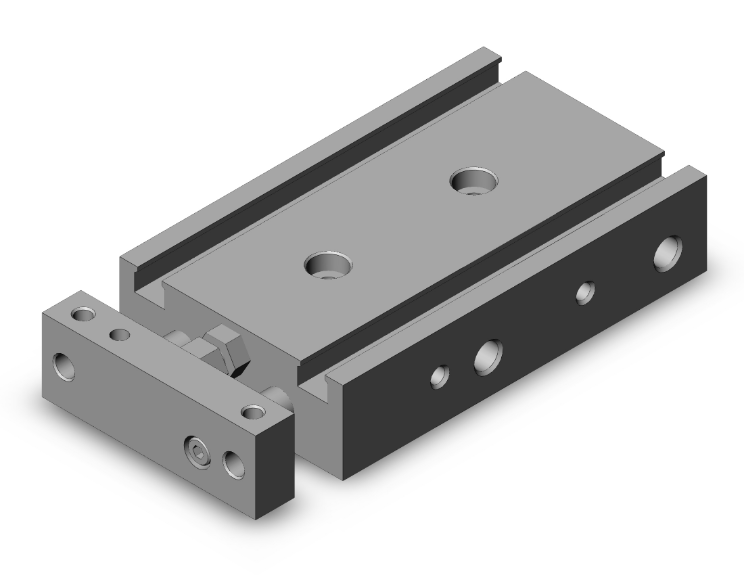

SMC VALVES CXSM10-20 Guided Cylinder, 10 mm Size, Slide Bearing
Item: AL6CRBModel: CXSM10-20
7 In Stock
Ships within 2 days via
€127.68 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Cylinder |
| Bearings | Slide |
| Bore Dia. | 10 mm |
| Cushion Type | Rubber Bumper |
| Guided Cylinder Type | Dual Rod Slide Unit |
| Max. Operating Pressure | 0.7 MPa |
| Min. Operating Pressure | 0.1 MPa |
| Mounting Type | Direct |
| Operating Pressure | 0.1 MPa to 0.7 MPa |
| Operating Temp. | -10°C to +60°C |
| Overall Height | 17 mm |
| Overall Length | 92 mm |
| Overall Width | 46 mm |
| Piping Type | Standard Piping |
| Piston Action | Double Acting |
| Port Size | M5 x 0.8 |
| Port Thread Standard | ISO |
| Pull Force @ 100 Psi | 70N |
| Push Force @ 100 Psi | 110N |
| Rod Size | 6 mm |
| Rod Type | Double Rod |
| Series | CXS Series |
| Stroke | 20 mm |
Shipping Info:
| Ship weight (kg) | 3.15 |
| Ship height (cm) | 7.62 |
| Ship length (cm) | 30.48 |
| Ship width (cm) | 7.62 |
Product Variants
| Product | Model | Type | Price | |
|---|---|---|---|---|
 |
CXSM15-15 | - | €147.65 | |
 |
CXSM25-40 | - | €196.73 | |
 |
CXSM15-20 | - | €152.83 | |
 |
CXSWM25-40 | - | €329.08 | |
 |
CXSM10-10 | - | €127.68 | |
 |
CXSL32-50 | - | €291.08 | |
 |
CXSL20-100 | - | €289.64 |
