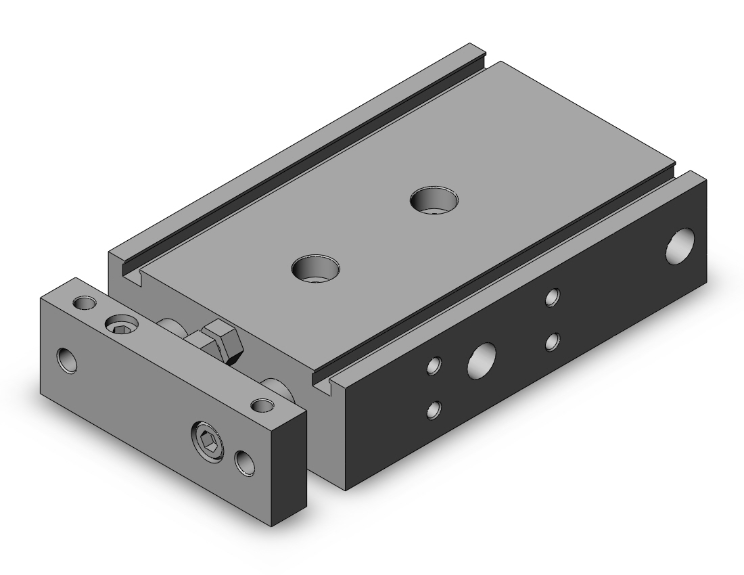

SMC VALVES CXSL25-50 Guided Cylinder, 25 mm Size, Ball Bearing
Item: AL7EGKModel: CXSL25-50
7 In Stock
Ships within 2 days via
€256.38 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Cylinder |
| Bearings | Ball Bushing Bearing |
| Bore Dia. | 25 mm |
| Cushion Type | Rubber Bumper |
| Guided Cylinder Type | Dual Rod Slide Unit |
| Max. Operating Pressure | 0.7 MPa |
| Min. Operating Pressure | 0.05 MPa |
| Mounting Type | Direct |
| Operating Temp. | -10°C to +60°C |
| Overall Height | 30 mm |
| Overall Length | 146 mm |
| Overall Width | 80 mm |
| Piping Type | Standard Piping |
| Piston Action | Double Acting |
| Port Size | 0.125 BSPT |
| Port Thread Standard | BSPT |
| Pull Force @ 100 Psi | 529N |
| Push Force @ 100 Psi | 687N |
| Rod Size | 12 mm |
| Rod Type | Double Rod |
| Series | CXS Series |
| Stroke | 50 mm |
Shipping Info:
| Ship weight (kg) | 3.15 |
| Ship height (cm) | 7.62 |
| Ship length (cm) | 30.48 |
| Ship width (cm) | 7.62 |
