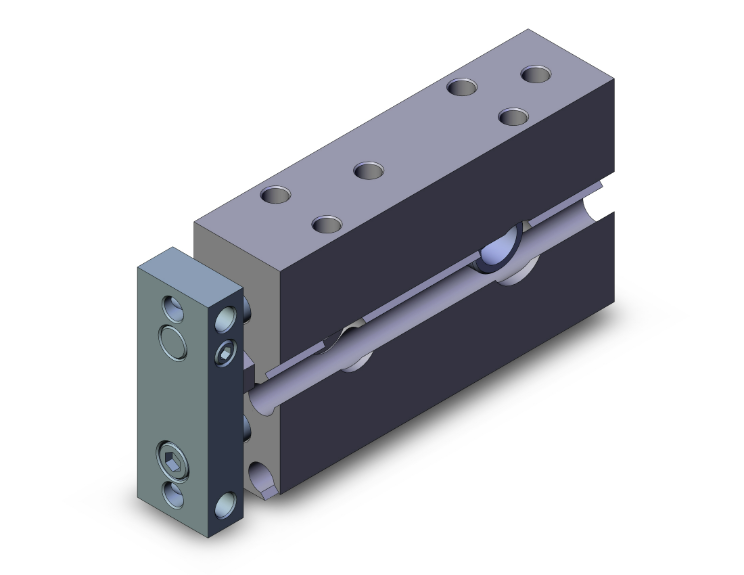

SMC VALVES CXSJM6-20 Compact Cylinder, 6 mm Size, Slide Bearing
Item: AM9VGLModel: CXSJM6-20
7 In Stock
Ships within 2 days via
€143.77 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Compact Cylinder |
| Bearings | Slide |
| Bore Dia. | 6 mm |
| Cushion Type | Rubber Bumper |
| Guided Cylinder Type | Dual Rod Compact |
| Max. Operating Pressure | 0.7 MPa |
| Min. Operating Pressure | 0.15 MPa |
| Mounting Type | Direct |
| Operating Temp. | -10°C to +60°C |
| Overall Height | 13.4 mm |
| Overall Length | 62 mm |
| Overall Width | 42 mm |
| Piston Action | Double Acting |
| Port Size | M3 x 0.5 |
| Port Thread Standard | ISO |
| Pull Force @ 100 Psi | 21.7N |
| Push Force @ 100 Psi | 39.2N |
| Rod Size | 4 mm |
| Rod Type | Double Rod |
| Series | CXSJ Series |
| Stroke | 20 mm |
Shipping Info:
| Ship weight (kg) | 3.15 |
| Ship height (cm) | 7.62 |
| Ship length (cm) | 30.48 |
| Ship width (cm) | 7.62 |
Product Variants
| Product | Model | Type | Price | |
|---|---|---|---|---|
 |
CXSJL6-10 | Standard Piping | €227.81 | |
 |
CXSJL10-50 | - | €263.99 | |
 |
CXSJM10-30 | - | €157.78 | |
 |
CXSJM10-40 | - | €164.08 | |
 |
CXSJM6-30 | - | €143.60 | |
 |
CXSJL6-20 | Standard Piping | €232.50 | |
 |
CXSJL10-10 | Standard Piping | €238.73 |
